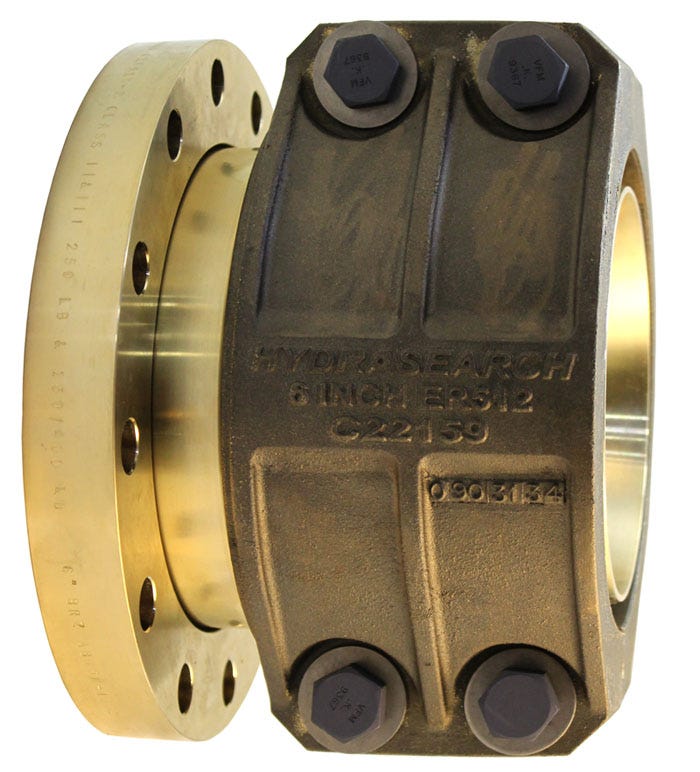

EF-10-400F-2P – 2-Piece End Fittings – Straight – Flange to Hose (MIL-DTL-24787/1, Type F, Group IX, Class I, 400 Lb. Flange per MIL-PRF-20042)
EF-10-400F-2P – 2-Piece End Fittings – Straight – Flange to Hose (MIL-DTL-24787/1, Type F, Group IX, Class I, 400 Lb. Flange per MIL-PRF-20042)
EF-10-400F-2P

EF-10-400F-2P – 2-Piece End Fittings – Straight – Flange to Hose (MIL-DTL-24787/1, Type F, Group IX, Class I, 400 Lb. Flange per MIL-PRF-20042)

Print Icon Print Download Icon Download PDF

Description:

Use with the following hose: ER512 & 2580

Specification

  • Applicable Hoses: ER512 2580
  • Component 1: Required per Assembly – 1 Description – Swivel Flange C18825 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800
  • Component 2: Description – Nipple Required per Assembly – 1 D18324 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800
  • Component 3: Required per Assembly – 2 Description – Segment Material – Aluminum Bronze in accordance with MIL-B-24480 C95800 C22161
  • Component 4: Description – Bolt Required per Assembly – 4 Material – Monel in accordance with QQ-N-286 C22173-2
  • Component 5: Description – Nut Required per Assembly – 4 B18347 Material – Monel in accordance with QQ-N-281
  • Component 6: Description – Washer B18348 Material – Monel in accordance with QQ-N-281 Required per Assembly – 4
  • J: '17.00
  • K: '12.04
  • L: '15.00
  • M: '1.06
  • N: '1.44
  • S: '10.31
  • T: '15.10
  • A: '7
  • D: '2.65
  • Est. Wt. (lbs.): 105
  • Hydrasearch Drawing Number: C22214
  • IPS Size: '10
  • Mil Spec: MIL-DTL-24787/1
  • No. of Bolt Holes: 15

Specification Table

Applicable HosesER512 2580
Component 1Required per Assembly – 1 Description – Swivel Flange C18825 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800
Component 2Description – Nipple Required per Assembly – 1 D18324 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800
Component 3Required per Assembly – 2 Description – Segment Material – Aluminum Bronze in accordance with MIL-B-24480 C95800 C22161
Component 4Description – Bolt Required per Assembly – 4 Material – Monel in accordance with QQ-N-286 C22173-2
Component 5Description – Nut Required per Assembly – 4 B18347 Material – Monel in accordance with QQ-N-281
Component 6Description – Washer B18348 Material – Monel in accordance with QQ-N-281 Required per Assembly – 4
J'17.00
K'12.04
L'15.00
M'1.06
N'1.44
S'10.31
T'15.10
A'7
D'2.65
Est. Wt. (lbs.)105
Hydrasearch Drawing NumberC22214
IPS Size'10
Mil SpecMIL-DTL-24787/1
No. of Bolt Holes15
