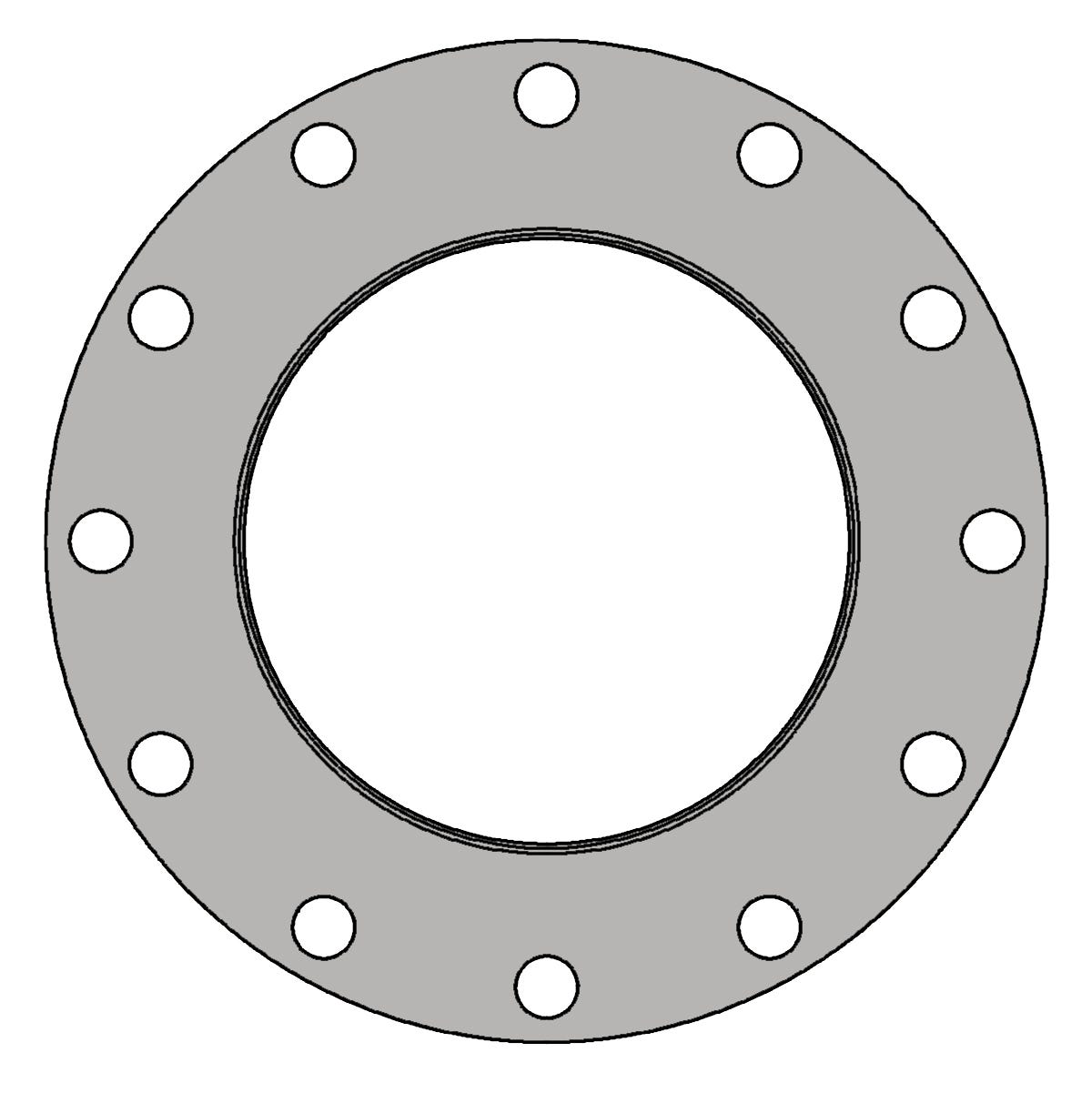

C18832-MOD – 12″ Modified ANSI Flange
C18832-MOD – 12″ Modified ANSI Flangeadapters-components-10and12inchmodifiedansiflangec18831-mod-scaled-100x1001-2
C18832-MOD

C18832-MOD – 12″ Modified ANSI Flange

Print Icon Print Download Icon Download PDF

Specification

  • C: 19.000
  • D: 9.687
  • E: 1.000
  • Hydrasearch Drawing Number: C18832-MOD
  • Material: Aluminum

Specification Table

C19.000
D9.687
E1.000
Hydrasearch Drawing NumberC18832-MOD
MaterialAluminum
