C18831-MOD

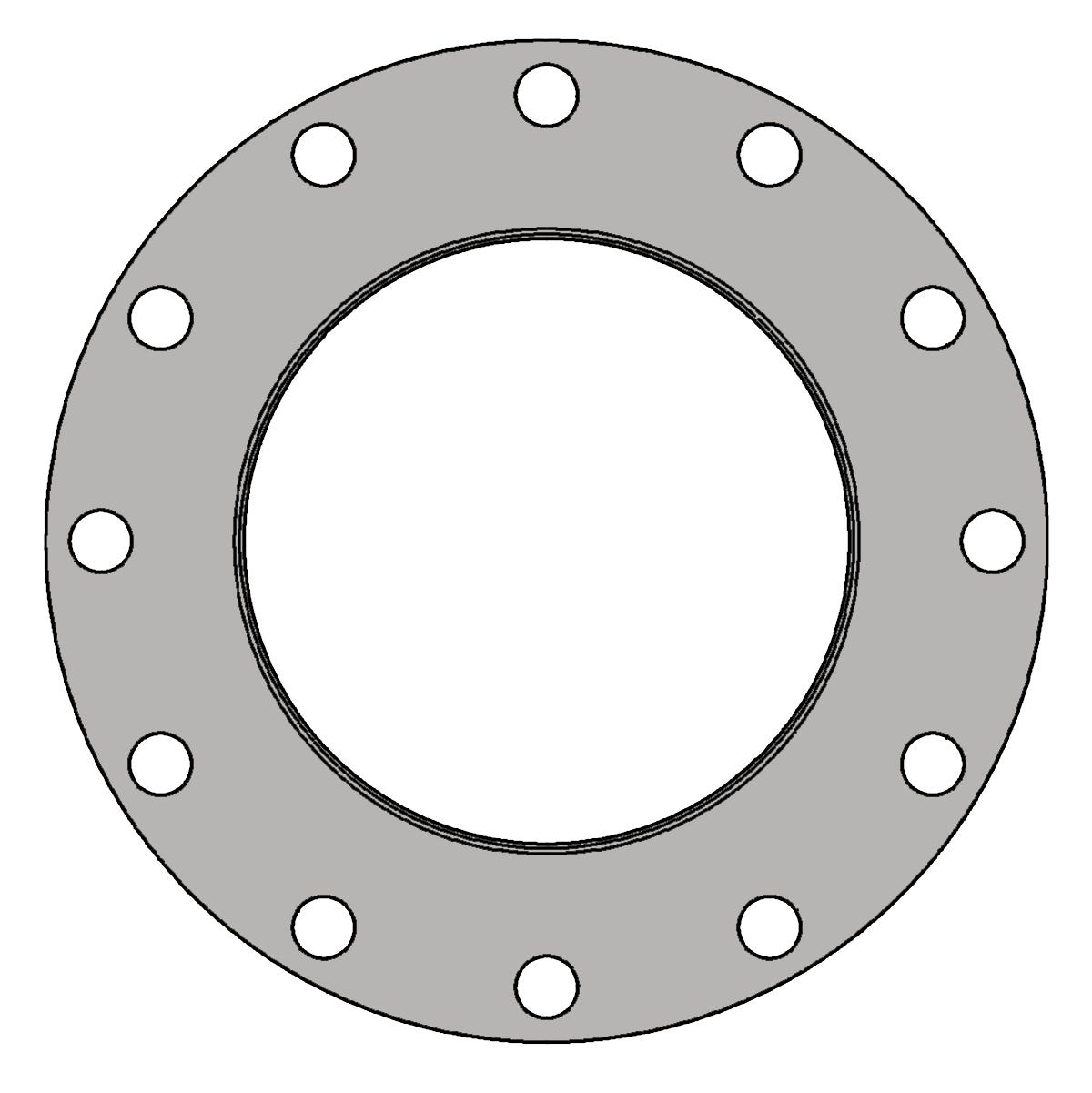

C18831-MOD – 10″ Modified ANSI Flange

Print Icon Print Download Icon Download PDF

Specification

  • C: 14.250
  • D: 9.687
  • E: 1.000
  • Hydrasearch Drawing Number: C18831-MOD
  • Material: Aluminum

Specification Table

C14.250
D9.687
E1.000
Hydrasearch Drawing NumberC18831-MOD
MaterialAluminum
