B-CPL/HOS-25-QR

B-CPL/HOS-25-QR – Couplings – Hose, Quick Release

Print Icon Print Download Icon Download PDF

Specification

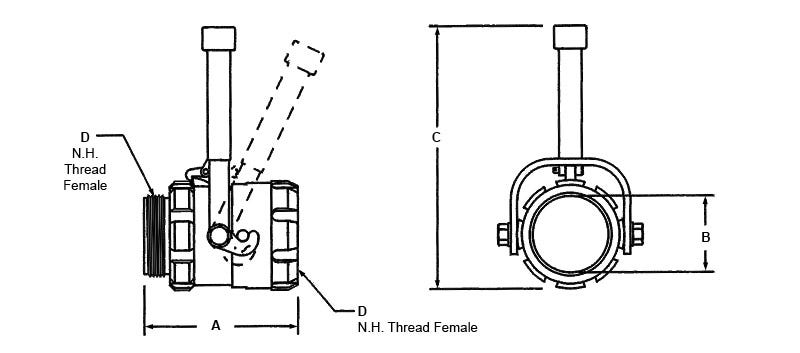

  • C: 10.00''
  • Equal To Aeroquip No : FF5186-4040
  • Equal To Global No: FF5186-4040
  • Est. Wt. (lbs.): 17
  • Hydrasearch Drawing Number: C15761
  • Material: Bronze
  • Navsea Drawing No: 805-2557603
  • NSN No.: 4730-00-369-4603''
  • Size in: 2-1/2''
  • Thread Size D: 2-1/2"-7-1/2''

Specification Table

C10.00''
Equal To Aeroquip No FF5186-4040
Equal To Global NoFF5186-4040
Est. Wt. (lbs.)17
Hydrasearch Drawing NumberC15761
MaterialBronze
Navsea Drawing No805-2557603
NSN No.4730-00-369-4603''
Size in2-1/2''
Thread Size D2-1/2"-7-1/2''
