B-CLMP-3.5S

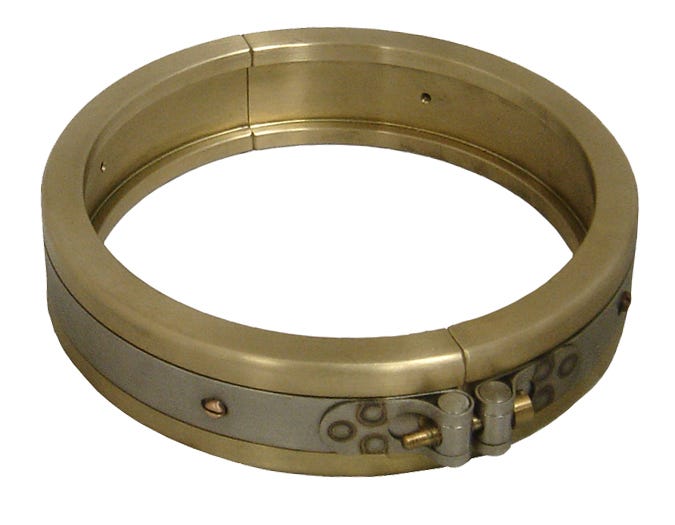

B-CLMP-3.5S – Split Clamps (MIL-DTL-24787/4, Type SC)

Print Icon Print Download Icon Download PDF
( 24787/4 )

Description:

Equal to Aeroquip 900758,

Specification

  • Clamp Material: Aluminum Bronze
  • A: 5.56''
  • B: 1.50''
  • C: 0.39''
  • Equal To Aeroquip No : 900758-3-1/2
  • Est. Wt. (lbs.): 2.44
  • Hardware And Band Material: Monel
  • Hydrasearch Drawing Number: C18081
  • IPS Size: 3-1/2''
  • Material: Material – Aluminum Bronze in accordance with ASTM B505 C95400
  • Mil Spec: MIL-DTL-24787/4
  • Required Per Assembly: 1
  • Size: 64

Specification Table

Clamp MaterialAluminum Bronze
A5.56''
B1.50''
C0.39''
Equal To Aeroquip No 900758-3-1/2
Est. Wt. (lbs.)2.44
Hardware And Band MaterialMonel
Hydrasearch Drawing NumberC18081
IPS Size3-1/2''
MaterialMaterial – Aluminum Bronze in accordance with ASTM B505 C95400
Mil SpecMIL-DTL-24787/4
Required Per Assembly1
Size64
