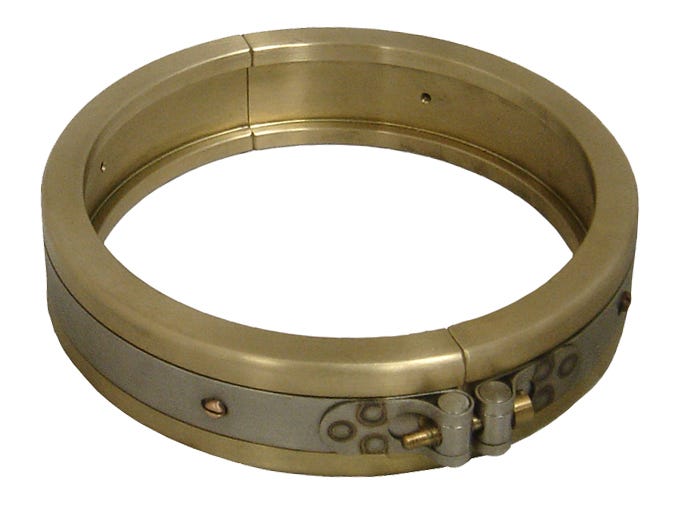

B-CLMP-2S – Split Clamps (MIL-DTL-24787/4, Type SC)
B-CLMP-2S – Split Clamps (MIL-DTL-24787/4, Type SC)
B-CLMP-2S

B-CLMP-2S – Split Clamps (MIL-DTL-24787/4, Type SC)

Print Icon Print Download Icon Download PDF
( 24787/4 )

Description:

Equal to Aeroquip 900758,

Specification

  • Clamp Material: Aluminum Bronze
  • A: '4
  • B: '1.38
  • C: '0.39
  • Equal To Aeroquip No : 900758-2
  • Est. Wt. (lbs.): 1.82
  • Hardware And Band Material: Monel
  • Hydrasearch Drawing Number: C18078
  • IPS Size: '2
  • Material: Aluminum Bronze in accordance with ASTM B505 C95400
  • Mil Spec: MIL-DTL-24787/4
  • NSN No.: 4730-01-116-3779
  • Required Per Assembly: 1
  • Series: '3240
  • Size: 40

Specification Table

Clamp MaterialAluminum Bronze
A'4
B'1.38
C'0.39
Equal To Aeroquip No 900758-2
Est. Wt. (lbs.)1.82
Hardware And Band MaterialMonel
Hydrasearch Drawing NumberC18078
IPS Size'2
MaterialAluminum Bronze in accordance with ASTM B505 C95400
Mil SpecMIL-DTL-24787/4
NSN No.4730-01-116-3779
Required Per Assembly1
Series'3240
Size40
