B-CLMP-10S

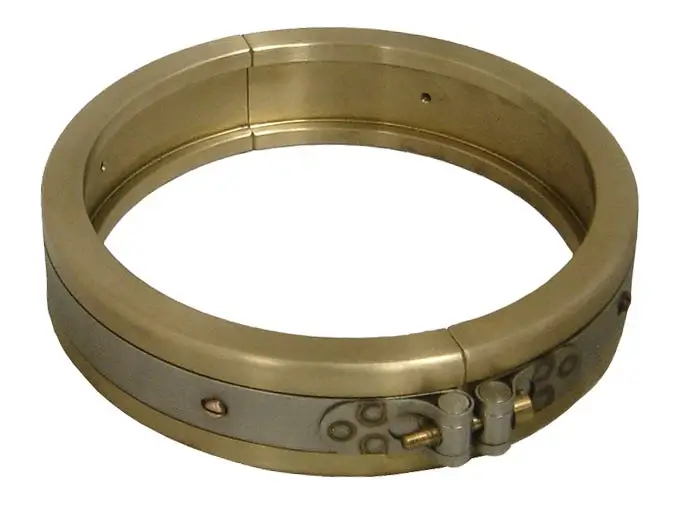

B-CLMP-10S – Split Clamps (MIL-DTL-24787/4, Type SC)

Print Icon Print Download Icon Download PDF

Specification

  • Clamp Material: Aluminum Bronze
  • A: 12.88
  • B: 2.38
  • C: 0.39
  • Equal To Aeroquip No : 900758-10
  • Estimated Weight Per Ft Lbs: 9
  • Hardware And Band Material: Monel
  • Hydrasearch Drawing Number: C18389
  • IPS Size: 10
  • Mil Spec: MIL-DTL-24787/4

Specification Table

Clamp MaterialAluminum Bronze
A12.88
B2.38
C0.39
Equal To Aeroquip No 900758-10
Estimated Weight Per Ft Lbs9
Hardware And Band MaterialMonel
Hydrasearch Drawing NumberC18389
IPS Size10
Mil SpecMIL-DTL-24787/4
