B-CAP-4FHT

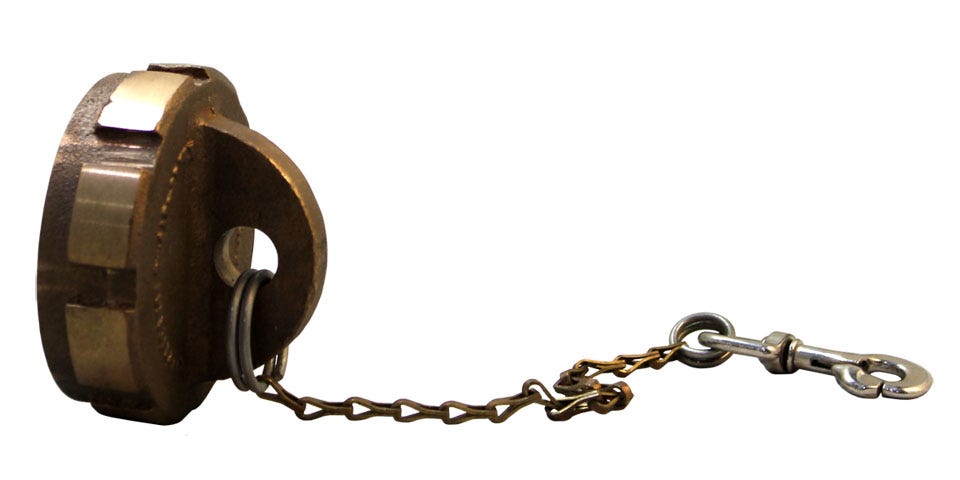

B-CAP-4FHT – Caps – Female Hose Thread

Print Icon Print Download Icon Download PDF

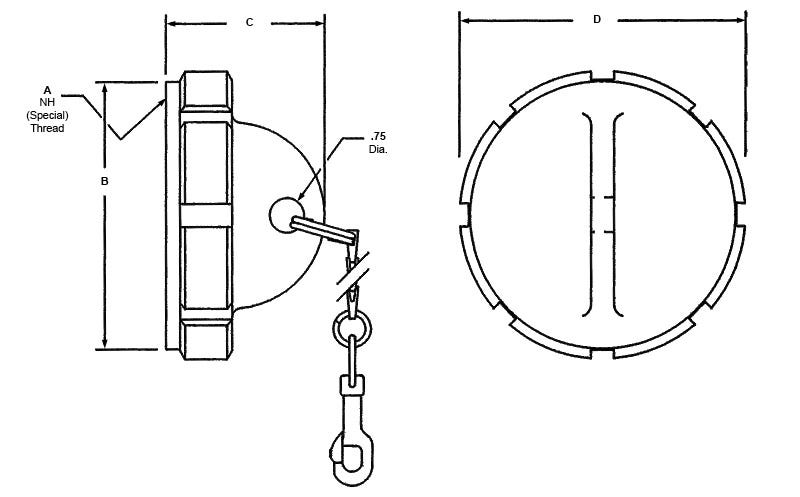

Specification

  • C: 3.38''
  • D: 6.19''
  • Equal To Global No: FF9288-64-175
  • Est. Wt. (lbs.): 5
  • Female Hose Thread Size In: 4''
  • Hydrasearch Drawing Number: C13430
  • Material: Bronze
  • Navsea Drawing No: 805-4472658
  • NSN No.: 4730-01-312-1577''
  • Thread Size A: 4"-6''

Specification Table

C3.38''
D6.19''
Equal To Global NoFF9288-64-175
Est. Wt. (lbs.)5
Female Hose Thread Size In4''
Hydrasearch Drawing NumberC13430
MaterialBronze
Navsea Drawing No805-4472658
NSN No.4730-01-312-1577''
Thread Size A4"-6''
