B-CAP-25FHT

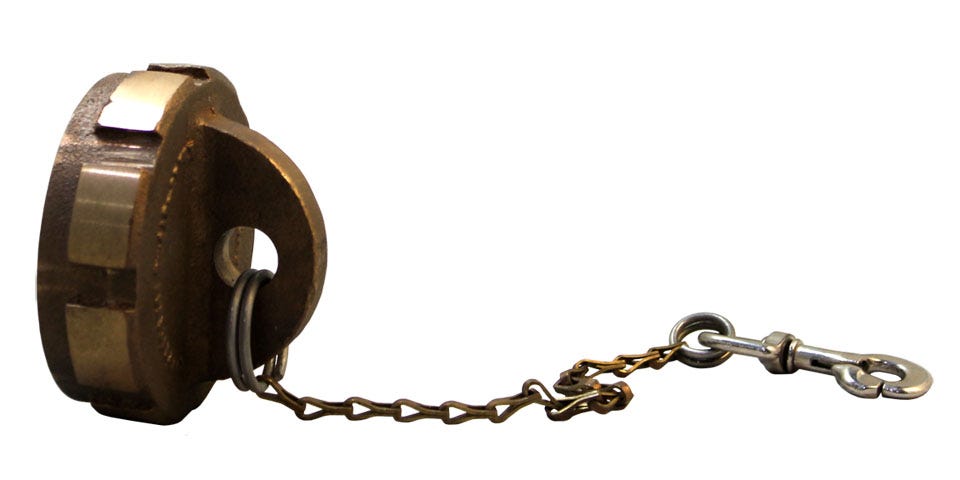

B-CAP-25FHT – Caps – Female Hose Thread

Print Icon Print Download Icon Download PDF

Specification

  • C: 2.59''
  • D: 4.12''
  • Equal To Aeroquip No : FF9288-40-175
  • Equal To Global No: FF9288-40-175
  • Est. Wt. (lbs.): 4
  • Female Hose Thread Size In: 2-1/2''
  • Hydrasearch Drawing Number: C15549
  • Material: Bronze
  • Navsea Drawing No: 805-4472658
  • NSN No.: 4730-00-240-5540''
  • Thread Size A: 2-1/2"-7-1/2

Specification Table

C2.59''
D4.12''
Equal To Aeroquip No FF9288-40-175
Equal To Global NoFF9288-40-175
Est. Wt. (lbs.)4
Female Hose Thread Size In2-1/2''
Hydrasearch Drawing NumberC15549
MaterialBronze
Navsea Drawing No805-4472658
NSN No.4730-00-240-5540''
Thread Size A2-1/2"-7-1/2
