AV150

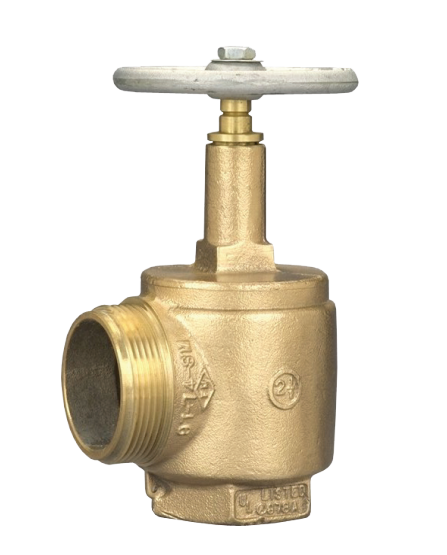

AV150 – Brass Angle Hose Valve

Print Icon Print Download Icon Download PDF

Specification

  • Dimension C Closed: 6.8 in
  • Dimension C Open: 7.78 in
  • D: 2-1/4''
  • E: 1.81''
  • A: 4.13 in''
  • B: 3.75 in
  • Dim C Closed: 6.80 in
  • Dim C Open: 7.78 In''
  • Dim D: 2.25 In''
  • Dim E: 1.81 In''
  • Inlet: 1 – 1/2" Female Npt''
  • Material: Cast Brass
  • Max Operating Pressure PSI: 300 Psi''
  • NSN No.: 4820-01-317-1353''
  • Outlet: 1 – 1/2" Male Nst (Nh)''
  • Size: 1.5 In''
  • Est. Wt. (lbs.): 4.51''
  • Working Pressure 1: 300 Psi At 70°F (21°C)''

Specification Table

Dimension C Closed6.8 in
Dimension C Open7.78 in
D2-1/4''
E1.81''
A4.13 in''
B3.75 in
Dim C Closed6.80 in
Dim C Open7.78 In''
Dim D2.25 In''
Dim E1.81 In''
Inlet1 – 1/2" Female Npt''
MaterialCast Brass
Max Operating Pressure PSI300 Psi''
NSN No.4820-01-317-1353''
Outlet1 – 1/2" Male Nst (Nh)''
Size1.5 In''
Est. Wt. (lbs.)4.51''
Working Pressure 1300 Psi At 70°F (21°C)''
