AN818-8

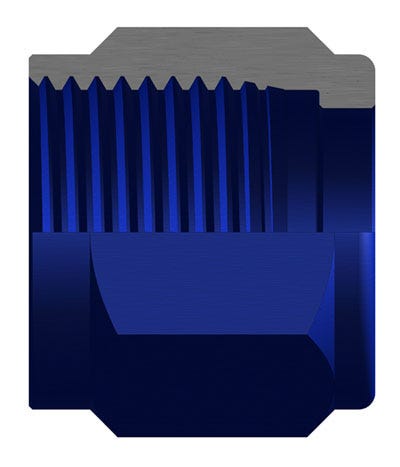

AN818-8 – Low Pressure Connector Nuts

Print Icon Print Download Icon Download PDF

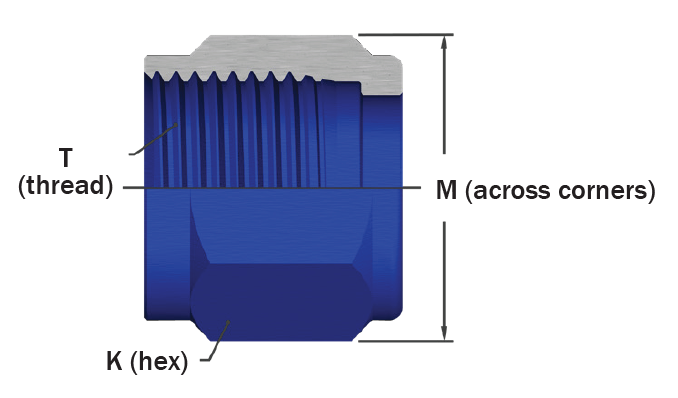

Specification

  • M: 1.010''
  • Hex K In: 0.875''
  • NSN No.: 4730-00-287-0288
  • Thread Size - T: 3/4"-16

Specification Table

M1.010''
Hex K In0.875''
NSN No.4730-00-287-0288
Thread Size - T3/4"-16
