A-SADL-7-FLT-A/L

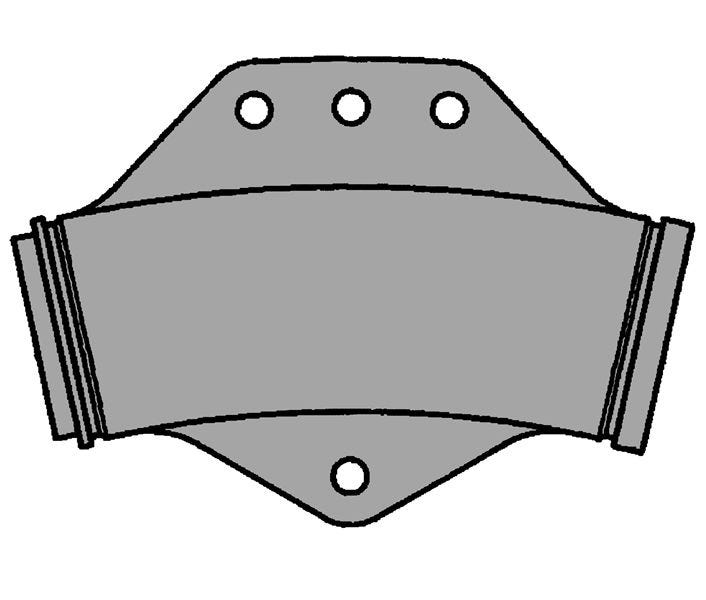

A-SADL-7-FLT-A/L – Saddles – Flow Through, Type A (Lower or Single Rig)

Print Icon Print Download Icon Download PDF

Specification

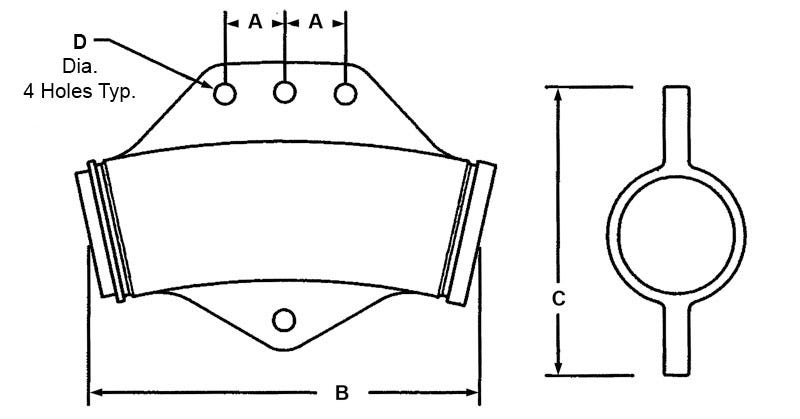

  • C: 14.75''
  • D: 1.06''
  • Equal To Aeroquip No : 72430-7D
  • Equal To Global No: 72430-7D
  • Approx Weight Per In Lbs: 31
  • Hydrasearch Drawing Number: C13347-70
  • Material: Aluminum
  • Navsea Drawing No: 803-1385957
  • NSN No.: 4730-00-900-8535''
  • Size in: 7''

Specification Table

C14.75''
D1.06''
Equal To Aeroquip No 72430-7D
Equal To Global No72430-7D
Approx Weight Per In Lbs31
Hydrasearch Drawing NumberC13347-70
MaterialAluminum
Navsea Drawing No803-1385957
NSN No.4730-00-900-8535''
Size in7''
