A-SADL-4-FLT-A/L

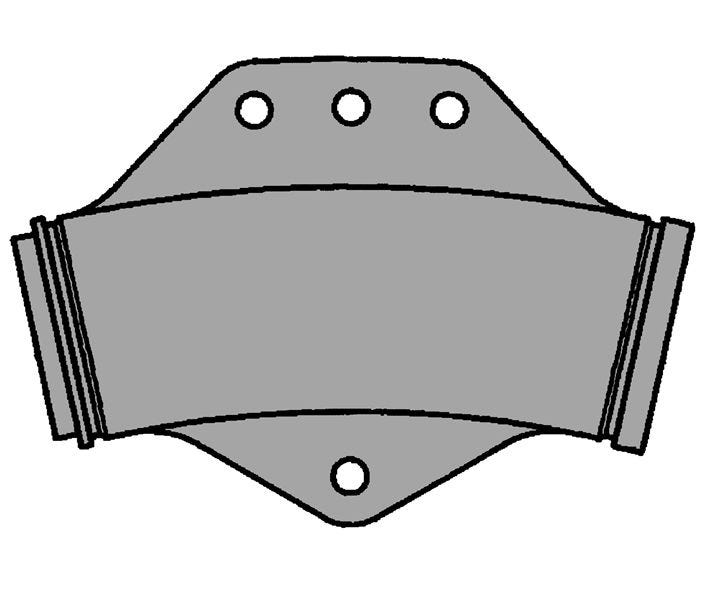

A-SADL-4-FLT-A/L – Saddles – Flow Through, Type A (Lower or Single Rig)

Print Icon Print Download Icon Download PDF

Specification

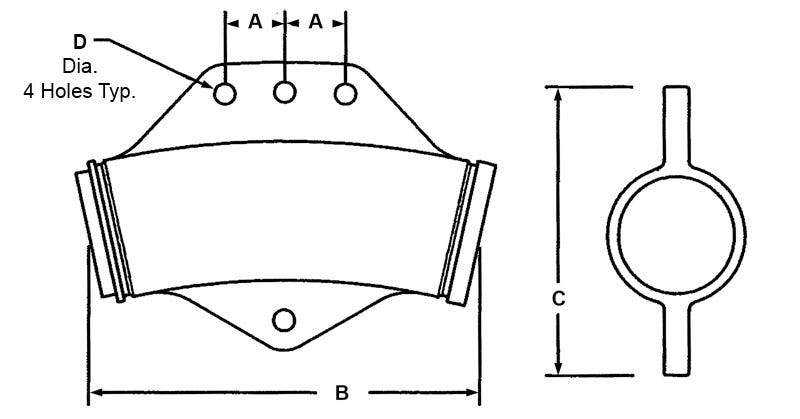

  • C: 11.80''
  • D: 1.06''
  • Equal To Aeroquip No : 72430-4D
  • Equal To Global No: 72430-4D
  • Approx Weight Per In Lbs: 11.75
  • Hydrasearch Drawing Number: C13347-40
  • Material: Aluminum
  • Navsea Drawing No: 805-4472629
  • NSN No.: 4730-01-106-8915''
  • Size in: 4''

Specification Table

C11.80''
D1.06''
Equal To Aeroquip No 72430-4D
Equal To Global No72430-4D
Approx Weight Per In Lbs11.75
Hydrasearch Drawing NumberC13347-40
MaterialAluminum
Navsea Drawing No805-4472629
NSN No.4730-01-106-8915''
Size in4''
