A-SADL-25-FLT-A/L

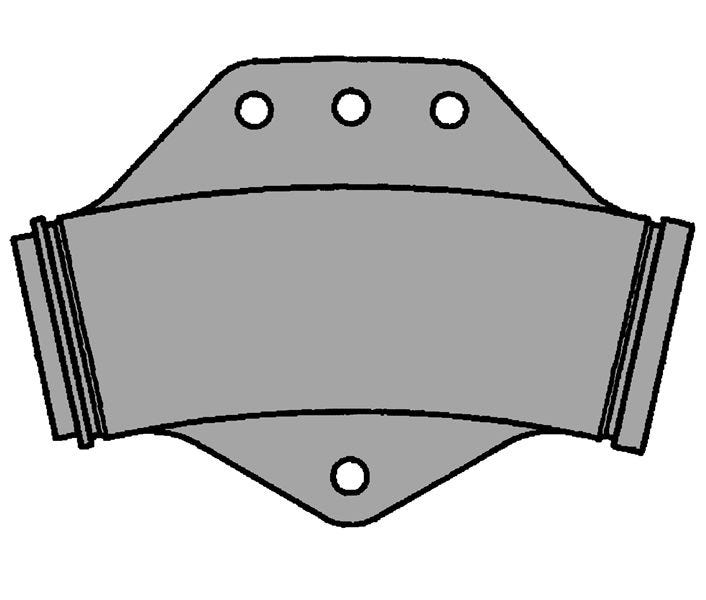

A-SADL-25-FLT-A/L – Saddles – Flow Through, Type A (Lower or Single Rig)

Print Icon Print Download Icon Download PDF

Specification

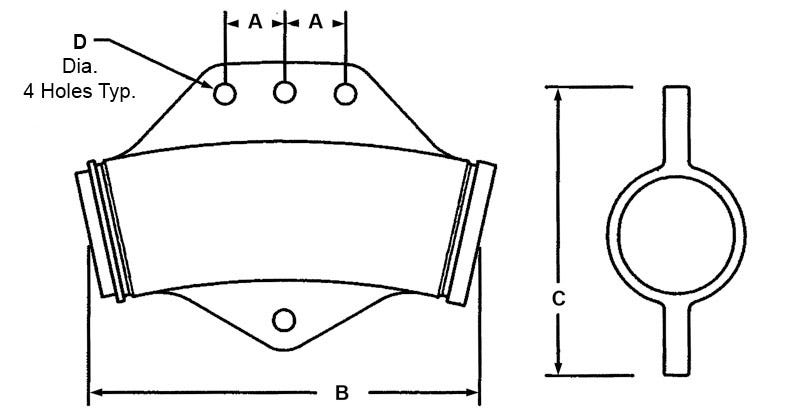

  • C: 9.37''
  • D: 0.94''
  • Equal To Aeroquip No : 72430-2 1/2D
  • Equal To Global No: 72430-2-1/2D
  • Approx Weight Per In Lbs: 10
  • Hydrasearch Drawing Number: D14103
  • Material: Aluminum
  • Navsea Drawing No: 803-2260818
  • NSN No.: 4730-01-134-7821''
  • Size in: 2-1/2''

Specification Table

C9.37''
D0.94''
Equal To Aeroquip No 72430-2 1/2D
Equal To Global No72430-2-1/2D
Approx Weight Per In Lbs10
Hydrasearch Drawing NumberD14103
MaterialAluminum
Navsea Drawing No803-2260818
NSN No.4730-01-134-7821''
Size in2-1/2''
