A-FIT/RL-4-FLT

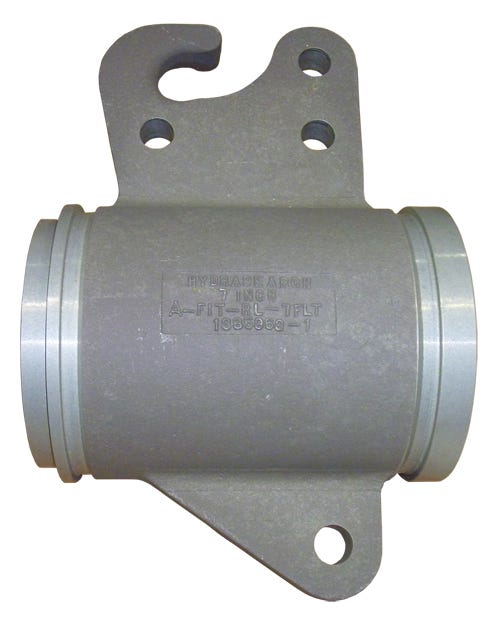

A-FIT/RL-4-FLT – Riding Line Fittings, Flow Through

Print Icon Print Download Icon Download PDF

Specification

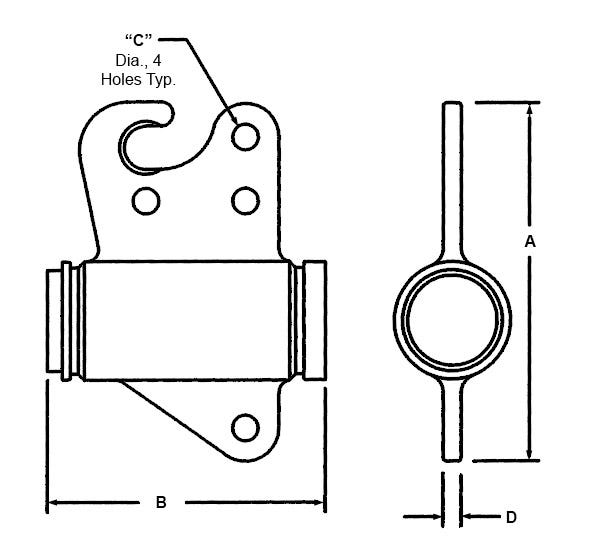

  • C: 1.06''
  • D: 0.75''
  • Equal To Aeroquip No : 72461-4D
  • Navsea Drawing No: 805-4472630
  • Equal To Global No: 72461-4D
  • Approx Weight Per In Lbs: 11
  • Hydrasearch Drawing Number: C13356-40
  • Material: Aluminum
  • Size in: 4''
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

C1.06''
D0.75''
Equal To Aeroquip No 72461-4D
Navsea Drawing No805-4472630
Equal To Global No72461-4D
Approx Weight Per In Lbs11
Hydrasearch Drawing NumberC13356-40
MaterialAluminum
Size in4''
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
