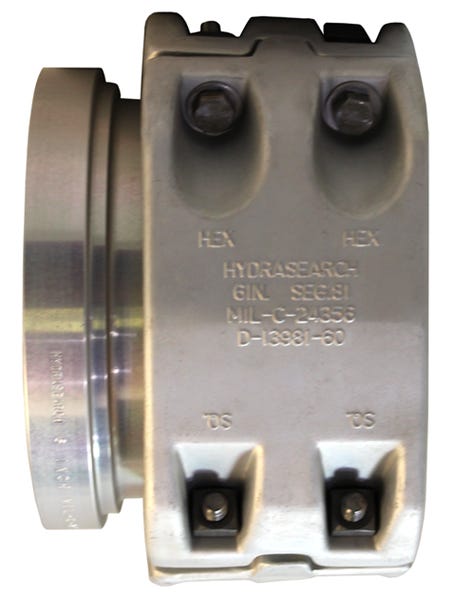

couplings 467hosefemalesplitsegmental81a cpl hos 6fs s81 pic 2
couplings 467hosefemalesplitsegmental81a cpl hos 6fs s81 pic 2
A-CPL/HOS-7FS-S81

A-CPL/HOS-7FS-S81 – Couplings – 4″, 6″ & 7″ Hose, Female Split (Segmental ’81™)

Print Icon Print Download Icon Download PDF

Specification

  • Components: D16083-70
  • A: 5.69''
  • B: 8.10''
  • C: 9.75''
  • Equal To Aeroquip No : 190419-7-7
  • Equal To Global No: 190419-7-7
  • Est. Wt. (lbs.): 10
  • Hydrasearch Drawing Number: C14778-70r
  • NSN No.: 4730-00-793-9809

Specification Table

ComponentsD16083-70
A5.69''
B8.10''
C9.75''
Equal To Aeroquip No 190419-7-7
Equal To Global No190419-7-7
Est. Wt. (lbs.)10
Hydrasearch Drawing NumberC14778-70r
NSN No.4730-00-793-9809
