A-CPL/HOS-25FS-S81

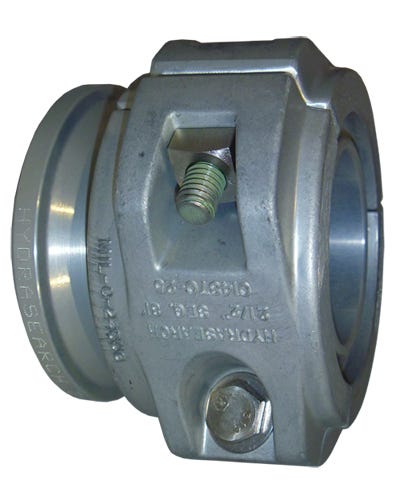

A-CPL/HOS-25FS-S81 – Couplings – 2-1/2″ Hose, Female Split (Segmental ’81™)

Print Icon Print Download Icon Download PDF
( MIL-C-24356 )

Specification

  • Components: C16081
  • Equal To Aeroquip No : 190419-2 1/2-40
  • Equal To Global No: 190419-2-1/2-40
  • Est. Wt. (lbs.): 2.75
  • Hydrasearch Drawing Number: C14873
  • Material: Aluminum
  • Mil Spec: MIL-C-24356
  • Notes: Dimensional information is for reference only. Variations from these dimensions, on actual parts may occur as the result of engineering revisions.

Specification Table

ComponentsC16081
Equal To Aeroquip No 190419-2 1/2-40
Equal To Global No190419-2-1/2-40
Est. Wt. (lbs.)2.75
Hydrasearch Drawing NumberC14873
MaterialAluminum
Mil SpecMIL-C-24356
NotesDimensional information is for reference only. Variations from these dimensions, on actual parts may occur as the result of engineering revisions.
