A-CPL/HOS-25-AD

A-CPL/HOS-25-AD – Couplings – 2-1/2″ Automatic Disconnect

Print Icon Print Download Icon Download PDF

Specification

  • Equal To Aeroquip No : FF5586-4040
  • Equal To Global No: FF5586-4040
  • Est. Wt. (lbs.): 13

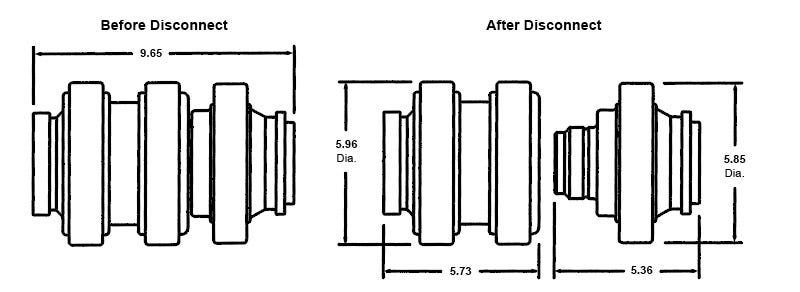

  • Hydrasearch Drawing Number: C17084
  • Material: Aluminum & Stainless Steel
  • Navsea Drawing No: 803-2260817
  • NSN No.: 4730-01-367-2004''

Specification Table

Equal To Aeroquip No FF5586-4040
Equal To Global NoFF5586-4040
Est. Wt. (lbs.)13
Hydrasearch Drawing NumberC17084
MaterialAluminum & Stainless Steel
Navsea Drawing No803-2260817
NSN No.4730-01-367-2004''
