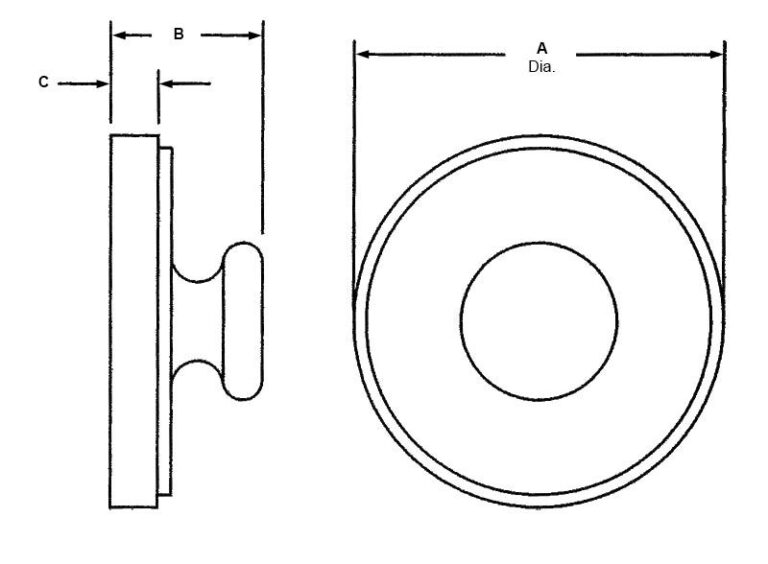

caps femalesplitclampa1749 768x564 2
caps femalesplitclampa1749 768x564 2caps-femalesplitclampa-cap-4fs-pic-3
A-CAP-4FS

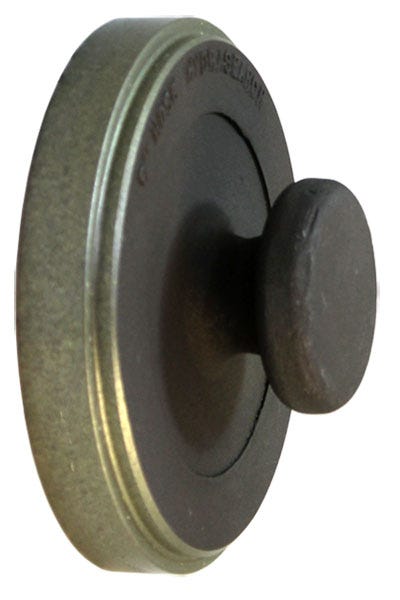

A-CAP-4FS – Caps – Female Split Clamp

Print Icon Print Download Icon Download PDF

Specification

  • C: 0.90''
  • Equal To Aeroquip No : 222026-64D
  • Equal To Global No: 222026-64D
  • Est. Wt. (lbs.): 2
  • Female Clamp End In: 4''
  • Hydrasearch Drawing Number: C13424-40
  • Material: Aluminum
  • Navsea Drawing No: 805-4472652
  • NSN No.: 4730-00-007-9403''

Specification Table

C0.90''
Equal To Aeroquip No 222026-64D
Equal To Global No222026-64D
Est. Wt. (lbs.)2
Female Clamp End In4''
Hydrasearch Drawing NumberC13424-40
MaterialAluminum
Navsea Drawing No805-4472652
NSN No.4730-00-007-9403''
