A-CAP-25FS

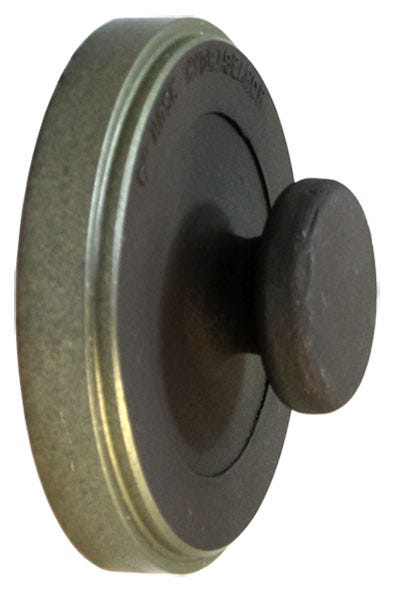

A-CAP-25FS – Caps – Female Split Clamp

Print Icon Print Download Icon Download PDF

Specification

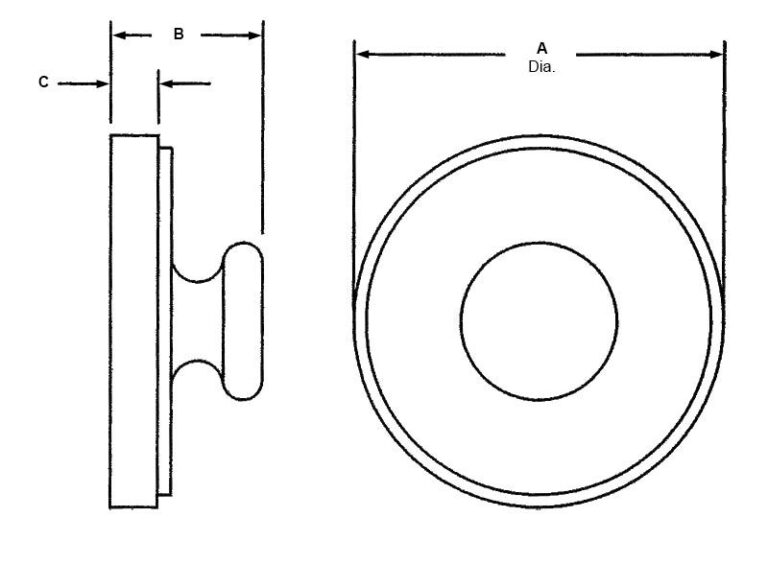

  • C: 0.61''
  • Equal To Aeroquip No : 222026-40D
  • Equal To Global No: 222026-40D
  • Est. Wt. (lbs.): 1.5
  • Female Clamp End In: 2-1/2''
  • Hydrasearch Drawing Number: B13735
  • Material: Aluminum
  • Navsea Drawing No: 803-2260817
  • NSN No.: 4730-01-354-5382''

Specification Table

C0.61''
Equal To Aeroquip No 222026-40D
Equal To Global No222026-40D
Est. Wt. (lbs.)1.5
Female Clamp End In2-1/2''
Hydrasearch Drawing NumberB13735
MaterialAluminum
Navsea Drawing No803-2260817
NSN No.4730-01-354-5382''
