A-ADP-SW-4FS-8F

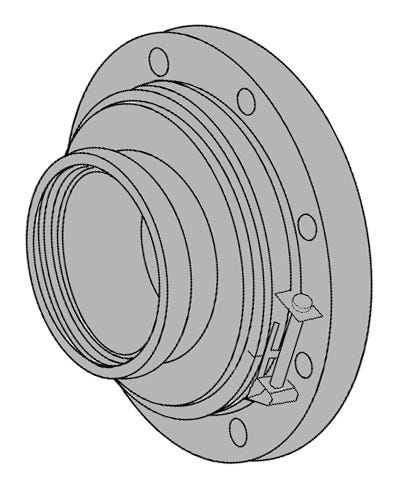

A-ADP-SW-4FS-8F – 4″ Split Clamp to 8″ Flange

Print Icon Print Download Icon Download PDF

Specification

  • C: 11.750
  • D: 0.88
  • E: 4.75
  • Female Clamp End In: 4
  • Flange End Size In: 8
  • Hydrasearch Drawing Number: C22367
  • Material: Aluminum

Specification Table

C11.750
D0.88
E4.75
Female Clamp End In4
Flange End Size In8
Hydrasearch Drawing NumberC22367
MaterialAluminum
