A-ADP-SW-4FS-12F

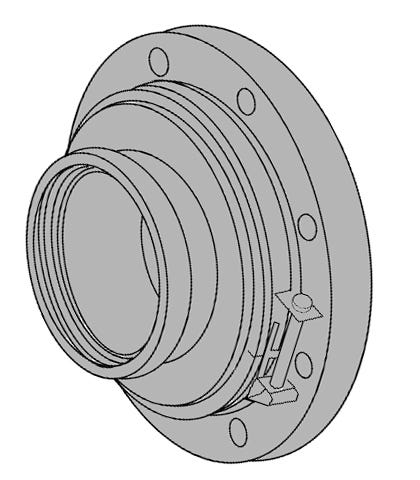

A-ADP-SW-4FS-12F – 4″ Split Clamp to 12″ Flange

Print Icon Print Download Icon Download PDF

Specification

  • C: 17.00
  • D: 1.000
  • E: 4.75
  • Female Clamp End In: 4
  • Flange End Size In: 12
  • Hydrasearch Drawing Number: C22369
  • Material: Aluminum

Specification Table

C17.00
D1.000
E4.75
Female Clamp End In4
Flange End Size In12
Hydrasearch Drawing NumberC22369
MaterialAluminum
