A-ADP-7FS-7F

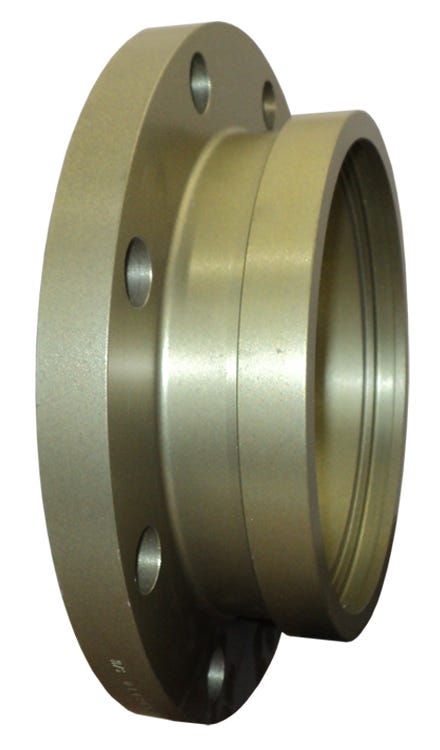

A-ADP-7FS-7F – Adapters – Female Split Clamp to Flange

Print Icon Print Download Icon Download PDF

Specification

  • C: 10.75
  • D: 0.88
  • Equal To Aeroquip No : 72078-7-7D
  • Equal To Global No: 72078-7-7D
  • Estimated Weight Per Ft Lbs: 13
  • Female Clamp End In: 7
  • Flange End In: 7
  • Hydrasearch Drawing Number: D14269-10
  • Material: Aluminum
  • NSN No.: 4730-00-453-9037

Specification Table

C10.75
D0.88
Equal To Aeroquip No 72078-7-7D
Equal To Global No72078-7-7D
Estimated Weight Per Ft Lbs13
Female Clamp End In7
Flange End In7
Hydrasearch Drawing NumberD14269-10
MaterialAluminum
NSN No.4730-00-453-9037
