A-ADP-7FS-6F

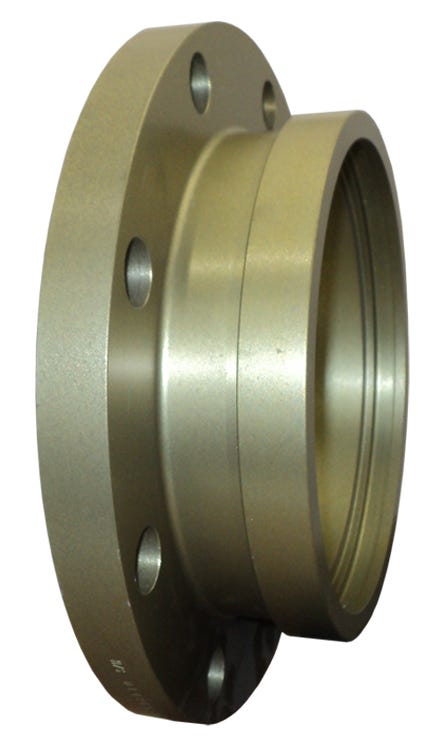

A-ADP-7FS-6F – Adapters – Female Split Clamp to Flange

Print Icon Print Download Icon Download PDF

Specification

  • C: 9.50
  • D: 0.88
  • Equal To Aeroquip No : 72078-6-7D
  • Equal To Global No: 72078-6-7D
  • Estimated Weight Per Ft Lbs: 10
  • Female Clamp End In: 7
  • Flange End In: 6
  • Hydrasearch Drawing Number: D14269-4
  • Material: Aluminum
  • Navsea Drawing No: 805-4472647
  • NSN No.: 4730-01-022-5943

Specification Table

C9.50
D0.88
Equal To Aeroquip No 72078-6-7D
Equal To Global No72078-6-7D
Estimated Weight Per Ft Lbs10
Female Clamp End In7
Flange End In6
Hydrasearch Drawing NumberD14269-4
MaterialAluminum
Navsea Drawing No805-4472647
NSN No.4730-01-022-5943
