A-ADP-4FS-6F

A-ADP-4FS-6F – Adapters – Female Split Clamp to Flange

Print Icon Print Download Icon Download PDF

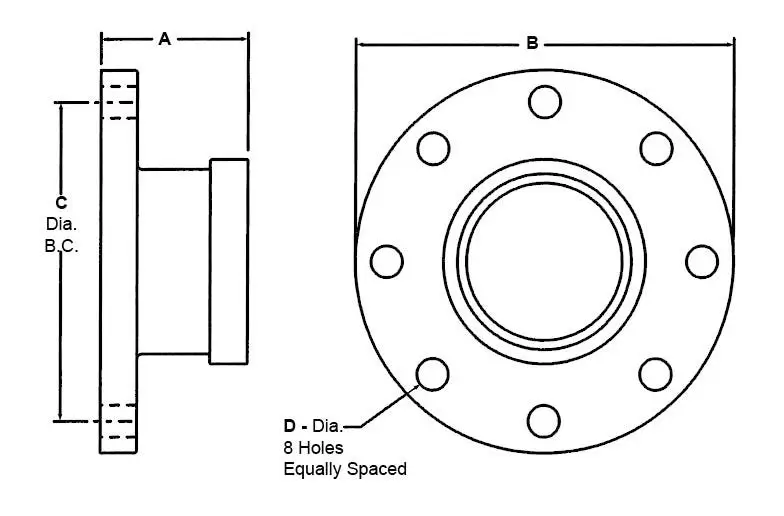

Specification

  • C: 9.50''
  • D: 0.88''
  • Equal To Global No: 72078-6-64D
  • Est. Wt. (lbs.): 9
  • Hydrasearch Drawing Number: C15466

Specification Table

C9.50''
D0.88''
Equal To Global No72078-6-64D
Est. Wt. (lbs.)9
Hydrasearch Drawing NumberC15466
Material-
