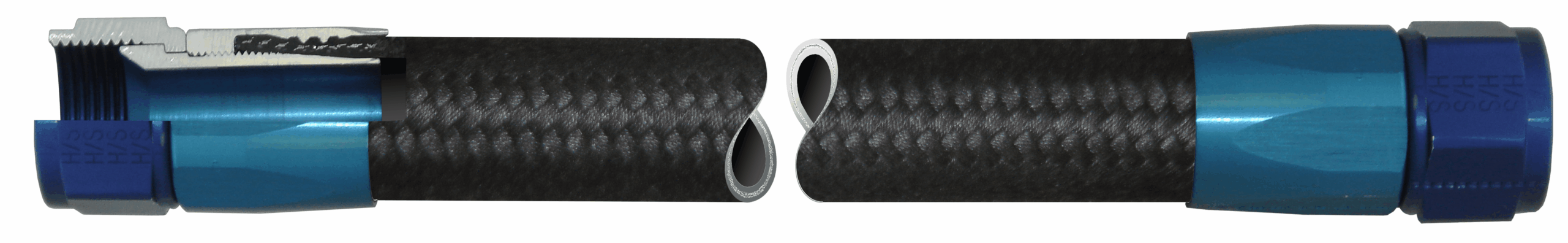

medium pressure hose assembly 94b010003f00001 1 scaled
medium pressure hose assembly 94b010003f00001 1 scaledhighpressurerubberhoseassemblies-mstohydrasearchhoseassemblycrossreference-100x1001-15highpressurerubberhoseassemblies-mstohydrasearchhoseassemblycrossreference_1-100x1001-5
94B010004F0000

94B010004F0000 – Medium Pressure Rubber Hose Assemblies

Print Icon Print Download Icon Download PDF

Specification

  • Finish: Aluminum Alloy
  • Fitting Mil Spec: Mil-Dtl-5070
  • Hose Assembly Mil Spec: Mil-Dtl-8795
  • Hose Mil Spec: Mil-Dtl-8794
  • Hose Id: 0.188
  • Hose Size: 1/4
  • Material: Steel With Aluminum Sockets In Accordance With Table 1 Of Mil-Dtl-5070
  • Max Operating Pressure PSI: 3
  • Min Bend Radius : 3.000
  • Min Burst Pressure: 12
  • Min Hose Id: 0.188
  • Min Proof Pressure : 6
  • Ms Part No: Ms28741-4-L
  • Thread Size: 7/16"-20
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

FinishAluminum Alloy
Fitting Mil SpecMil-Dtl-5070
Hose Assembly Mil SpecMil-Dtl-8795
Hose Mil SpecMil-Dtl-8794
Hose Id0.188
Hose Size1/4
MaterialSteel With Aluminum Sockets In Accordance With Table 1 Of Mil-Dtl-5070
Max Operating Pressure PSI3
Min Bend Radius 3.000
Min Burst Pressure12
Min Hose Id0.188
Min Proof Pressure 6
Ms Part NoMs28741-4-L
Thread Size7/16"-20
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
