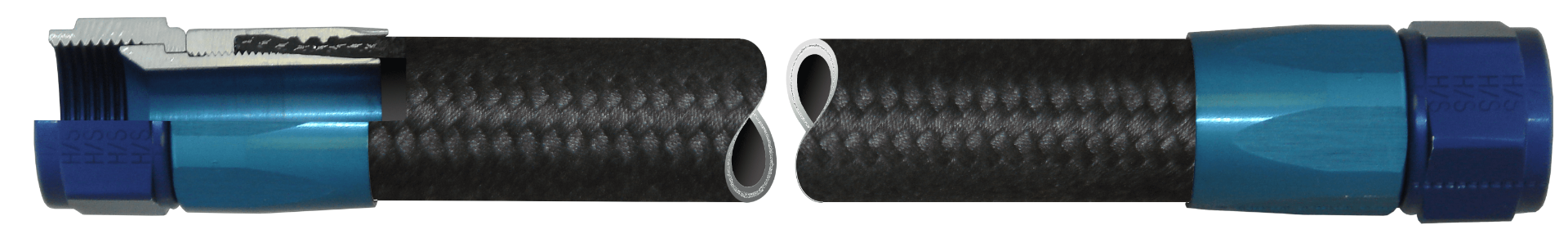

94B01000320000 – Medium Pressure Rubber Hose Assemblies

Print Icon Print Download Icon Download PDF

Specification

  • Finish: Aluminum Alloy – Anodized in accordance with MIL-A-8625
  • Fitting Mil Spec: Mil-Dtl-5070
  • Hose Assembly Mil Spec: Mil-Dtl-8795
  • Hose Mil Spec: Mil-Dtl-8794
  • Hose Id: 1.813
  • Hose Size: 2
  • Material: Aluminum In Accordance With Table 1 Of Mil-Dtl-5070
  • Max Operating Pressure PSI: 350
  • Min Bend Radius : 13.250
  • Min Burst Pressure: 1
  • Min Hose Id: 1.813
  • Min Proof Pressure : 700
  • Ms Part No: Ms28741-32-L
  • Thread Size: 2-1/2"-12
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

FinishAluminum Alloy – Anodized in accordance with MIL-A-8625
Fitting Mil SpecMil-Dtl-5070
Hose Assembly Mil SpecMil-Dtl-8795
Hose Mil SpecMil-Dtl-8794
Hose Id1.813
Hose Size2
MaterialAluminum In Accordance With Table 1 Of Mil-Dtl-5070
Max Operating Pressure PSI350
Min Bend Radius 13.250
Min Burst Pressure1
Min Hose Id1.813
Min Proof Pressure 700
Ms Part NoMs28741-32-L
Thread Size2-1/2"-12
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
