94B01000160000

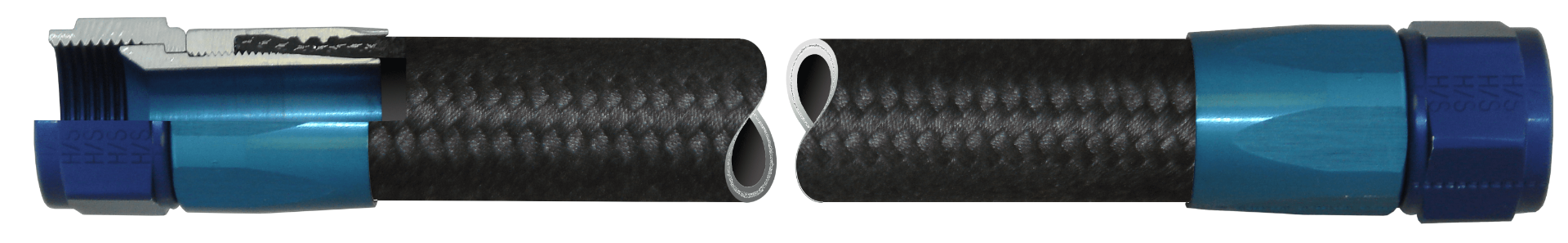

94B01000160000 – Medium Pressure Rubber Hose Assemblies

Print Icon Print Download Icon Download PDF

Specification

  • Finish: Aluminum Alloy – Anodized in accordance with MIL-A-8625
  • Fitting Mil Spec: Mil-Dtl-5070
  • Hose Assembly Mil Spec: Mil-Dtl-8795
  • Hose Mil Spec: Mil-Dtl-8794
  • Hose Id: 0.875
  • Hose Size: 1
  • Material: Aluminum In Accordance With Table 1 Of Mil-Dtl-5070
  • Max Operating Pressure PSI: 800
  • Min Bend Radius : 7.375
  • Min Burst Pressure: 3
  • Min Hose Id: 0.875
  • Min Proof Pressure : 1
  • Ms Part No: Ms28741-16-L
  • Thread Size: 1-5/16"-12
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

FinishAluminum Alloy – Anodized in accordance with MIL-A-8625
Fitting Mil SpecMil-Dtl-5070
Hose Assembly Mil SpecMil-Dtl-8795
Hose Mil Spec Mil-Dtl-8794
Hose Id0.875
Hose Size1
Material Aluminum In Accordance With Table 1 Of Mil-Dtl-5070
Max Operating Pressure PSI800
Min Bend Radius 7.375
Min Burst Pressure3
Min Hose Id0.875
Min Proof Pressure 1
Ms Part No Ms28741-16-L
Thread Size1-5/16"-12
Notes Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
