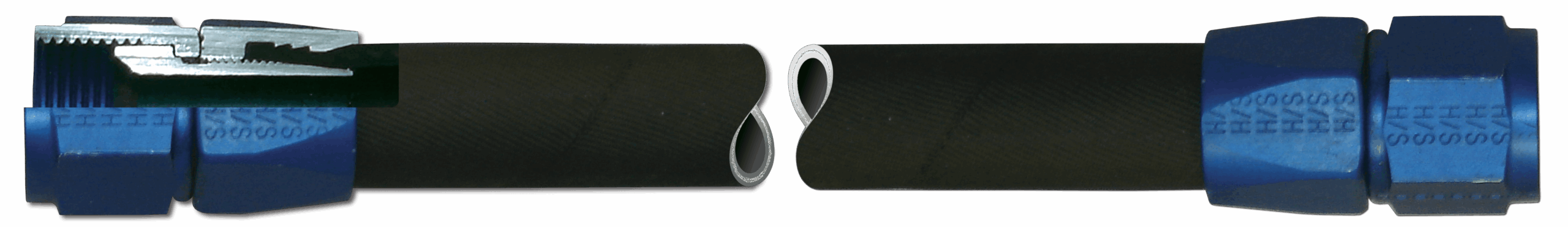

93B0100006D0000 – Low Pressure Rubber Hose Assemblies
93B0100006D0000 – Low Pressure Rubber Hose Assemblieshighpressurerubberhoseassemblies-mstohydrasearchhoseassemblycrossreference-100x1001-12
93B0100006D0000

93B0100006D0000 – Low Pressure Rubber Hose Assemblies

Print Icon Print Download Icon Download PDF

Specification

  • An Part No: AN6270-6D-L
  • Finish: Aluminum Alloy – Anodized in accordance with MIL-A-8625
  • Fitting Mil Spec: MIL-DTL-38726 & MS27404
  • Hose Assembly Mil Spec: AN6270
  • Hose Mil Spec: MIL-DTL-5593
  • Hose Id: 0.375
  • Hose Size: 3/8
  • Material: Aluminum2014-T6 per SAE AMS 4133 and 2024-T6 or 2024-T851 per SAE-AMS-QQ-A-225/6
  • Thread Size: 9/16"-18 Unf
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

An Part NoAN6270-6D-L
Finish Aluminum Alloy – Anodized in accordance with MIL-A-8625
Fitting Mil SpecMIL-DTL-38726 & MS27404
Hose Assembly Mil SpecAN6270
Hose Mil SpecMIL-DTL-5593
Hose Id0.375
Hose Size3/8
MaterialAluminum2014-T6 per SAE AMS 4133 and 2024-T6 or 2024-T851 per SAE-AMS-QQ-A-225/6
Thread Size9/16"-18 Unf
Notes Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
