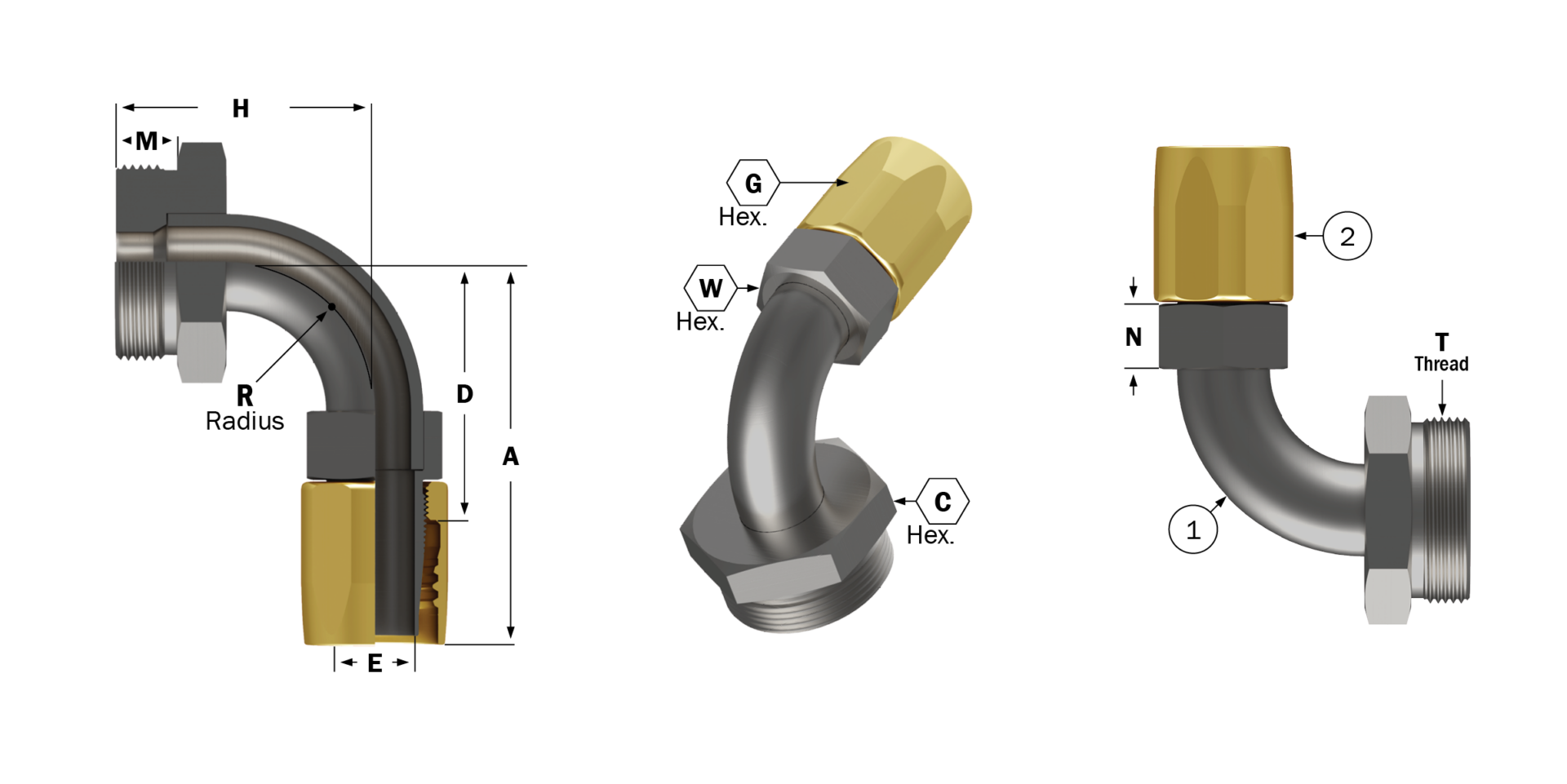

( End Fitting - 90° )

Description:

Equal to Hydrasearch P/N 93-191301,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: 93-191301-3/4-16
  • IPS Size: 3/4
  • T Thread CL-3A: 2”-12
  • A: 3.93
  • C: 2.12
  • D: 2.66
  • E: .82
  • G: 1.44
  • H: 2.68
  • M: .62
  • N: .70
  • R: 1.50
  • W: 1.38
  • Est. Wt. (lbs.): 2.01

Specification Table

Part Number93-191301-3/4-16
IPS Size3/4
T Thread CL-3A2”-12
A3.93
C2.12
D2.66
E.82
G1.44
H2.68
M.62
N.70
R1.50
W1.38
Est. Wt. (lbs.)2.01

Components Table

DescriptionReq’d per Ass’yBase No.3/4-161-201.25-241.5-32Material
Elbow14-186301-3/4-161-201.25-241.5-32Copper Nickel & Monel
Socket11212-16B20B24B32BBrass
