93-191301-1.5-32
93-191301-1.5-32
Print
Download PDF

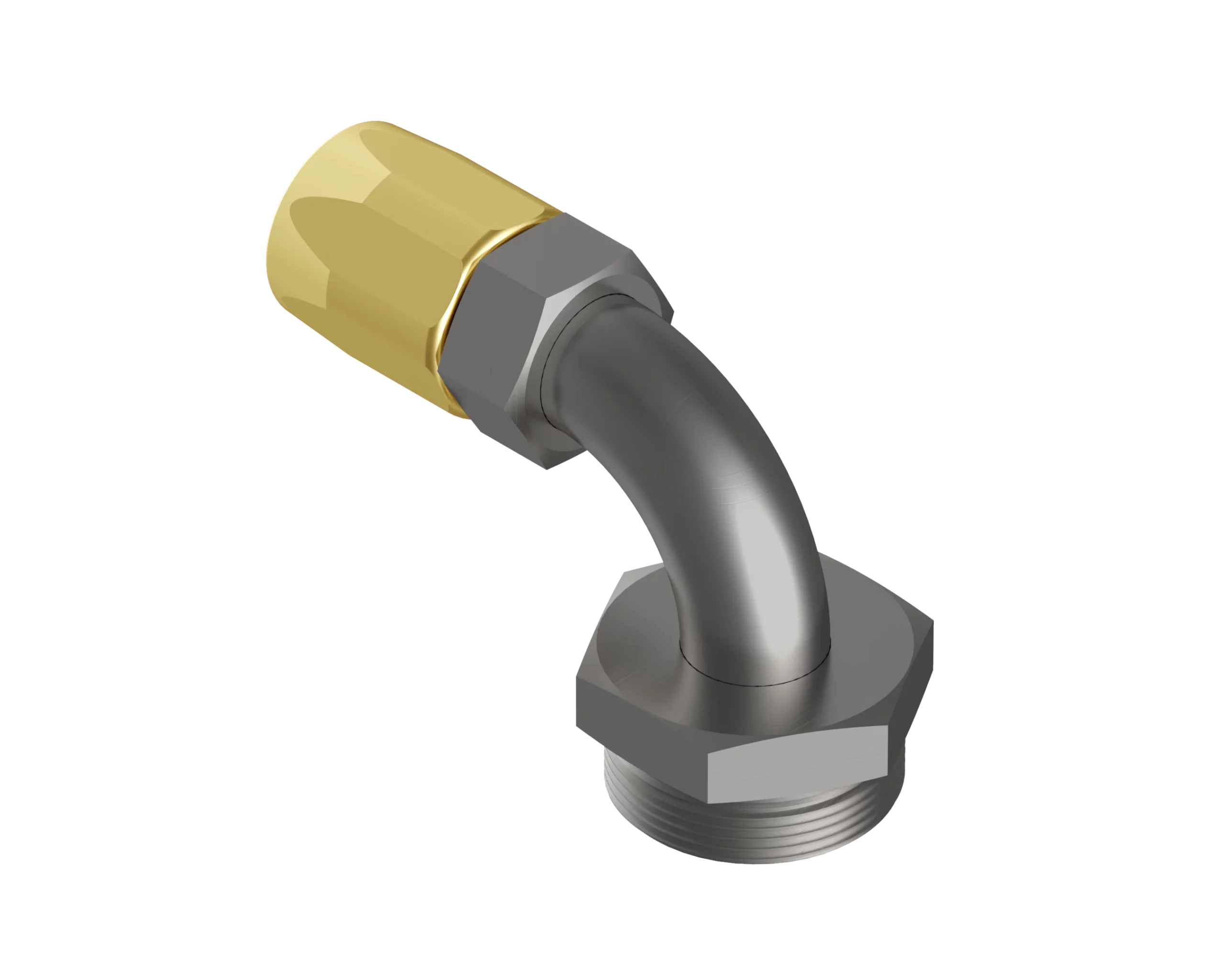

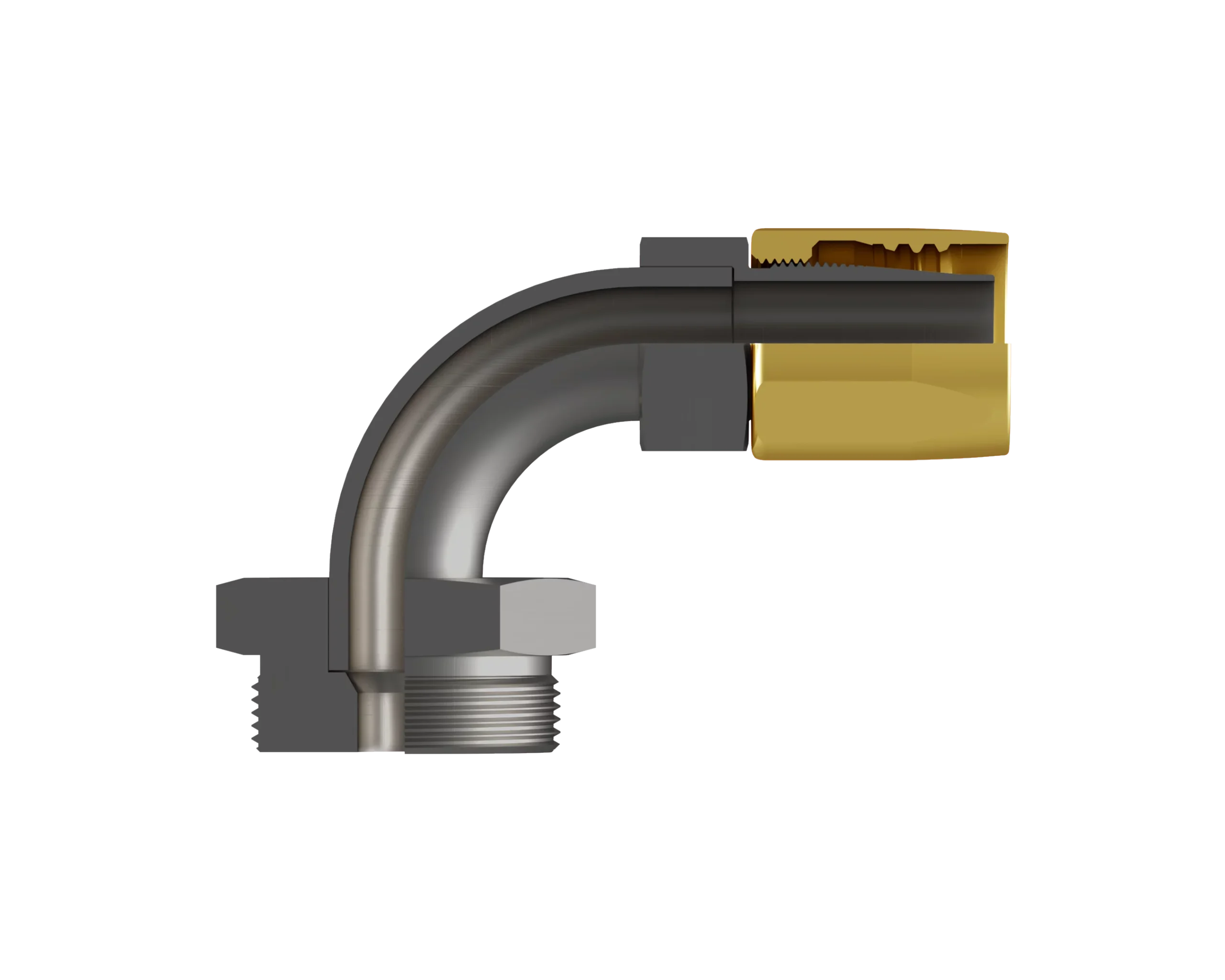

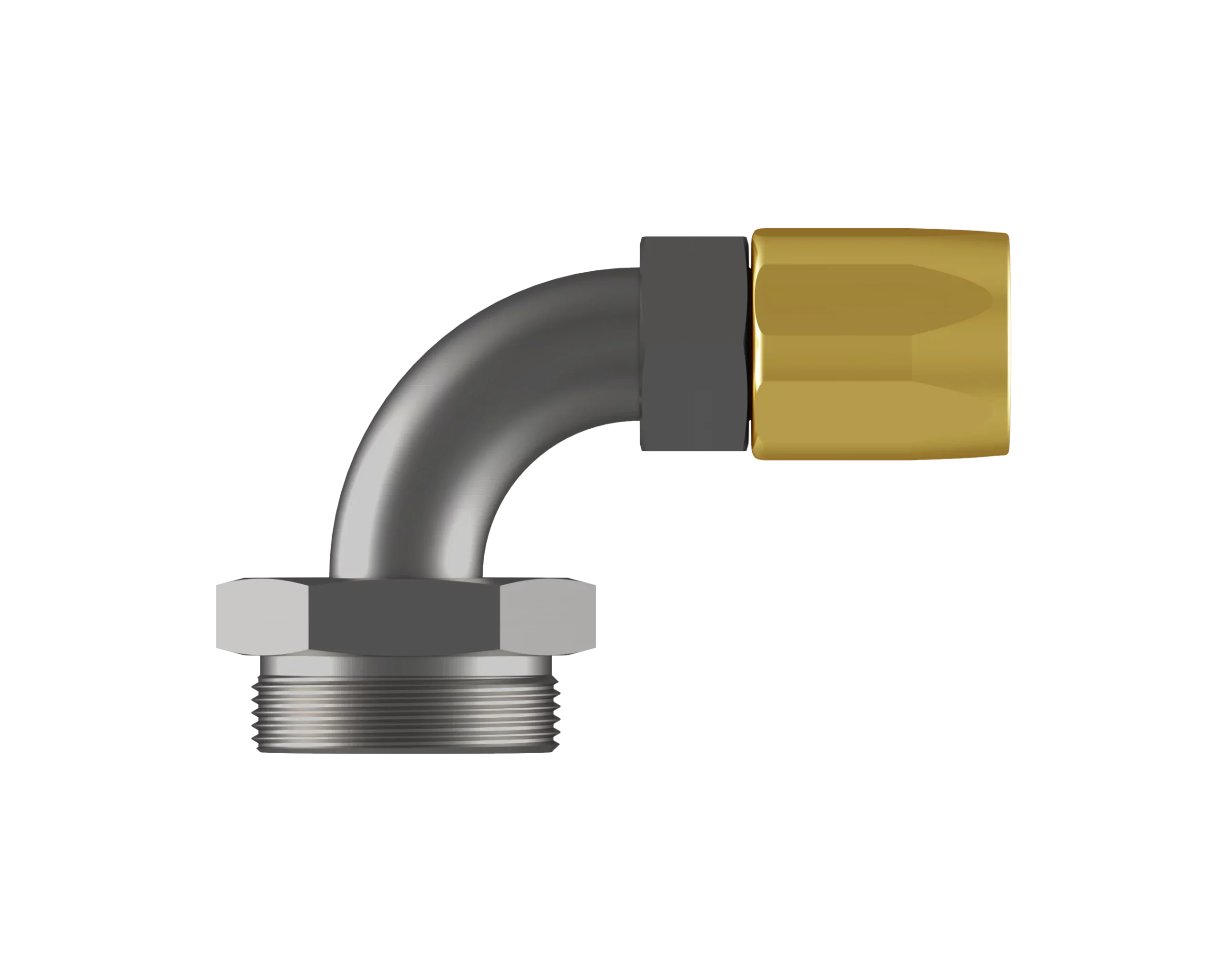

( End Fitting - 90° )
Description:
Equal to Hydrasearch P/N 93-191301,
Use with the following hose:
Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580
Specification
Specification Table
| Part Number | 93-191301-1.5-32 |
|---|---|
| IPS Size | 1.50 |
| T Thread CL-3A | 3-1/16”-12 |
| A | 5.68 |
| C | 3.12 |
| D | 3.84 |
| E | 1.75 |
| G | 2.44 |
| H | 4.05 |
| M | .88 |
| N | .86 |
| R | 2.50 |
| W | 2.38 |
| Est. Wt. (lbs.) | 5.42 |
Components Table
| Description | Req’d per Ass’y | Base No. | 3/4-16 | 1-20 | 1.25-24 | 1.5-32 | Material |
| Elbow | 1 | 4-186301- | 3/4-16 | 1-20 | 1.25-24 | 1.5-32 | Copper Nickel & Monel |
| Socket | 1 | 1212- | 16B | 20B | 24B | 32B | Brass |
