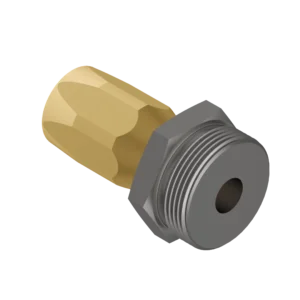

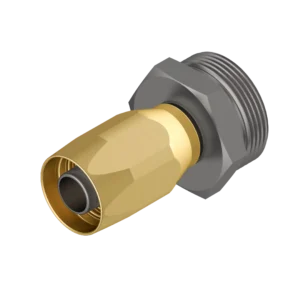

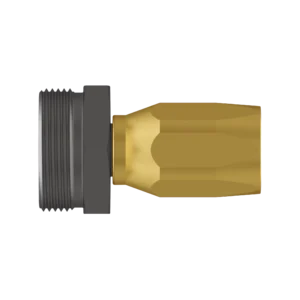

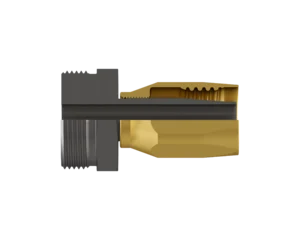

( End Fitting - Straight )

Description:

Equal to Aeroquip P/N 93-190911,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: 93-190911-1/4-8
  • IPS Size: 1/4
  • T Thread CL-3A: 1-3/16”-12
  • A: 2.54
  • C: 1.25
  • D: 1.39
  • G: .94
  • M: .92
  • Est. Wt. (lbs.): .46

Specification Table

Part Number93-190911-1/4-8
IPS Size1/4
T Thread CL-3A1-3/16”-12
A2.54
C1.25
D1.39
G.94
M.92
Est. Wt. (lbs.).46

Components Table

DescriptionReq’d per Ass’yBase No.1/8-61/4-83/8-101/2-12Material
Nipple14-220779-1/8-61/4-83/8-101/2-12Monel
Socket14-1210-6B8B10B12BBrass
