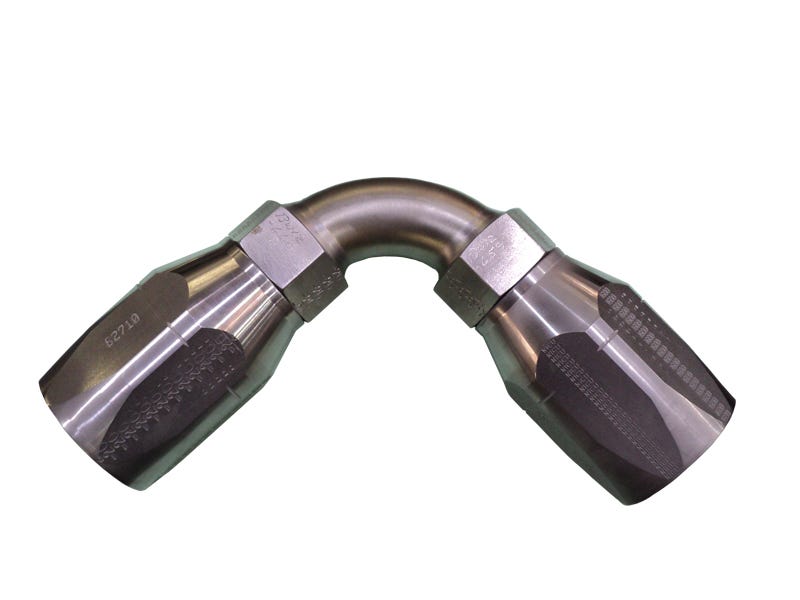

90ELB-SM1602D-1212 – Elbows – 90º Dogleg – Hose to Hose (HS1602 Series)
90ELB-SM1602D-1212 – Elbows – 90º Dogleg – Hose to Hose (HS1602 Series)
90ELB-SM1602D-1212

90ELB-SM1602D-1212 – Elbows – 90º Dogleg – Hose to Hose (HS1602 Series)

Print Icon Print Download Icon Download PDF
( DTL-24135/2 )

Description:

Equal to Aeroquip 41-191308,
Use with the following hose: Wire reinforced hoses I.A.W.

Specification

  • Applicable Hoses: Wire reinforced hoses in accordance with MIL-DTL-24135/2
  • Component 1: Required per Assembly – 1 Material – Monel Description – Elbow Assembly C19853
  • Component 1A: Required per Assembly – 1 Description – Elbow Material – Monel in accordance with MIL-T-1368 B18873-3
  • Component 1B: Required per Assembly – 1 Material – Monel in accordance with QQ-N-281 Description – Nipple C20127-1
  • Component 2: Required per Assembly – 2 Description – Socket C19846-2 Material – Steel in accordance with ASTM A108
  • N: '0.74
  • R: '1.25
  • S: '0.75
  • V: '2.47
  • A: '4.52
  • C: '1.06
  • D: '2.65
  • E: '0.61
  • G: '1.500
  • Equal To Aeroquip No : '41-191308-12
  • Hydrasearch Drawing Number: C20348
  • IPS Size: '3/4
  • NSN No.: 4730-00-072-8412
  • Estimated Weight Per Ft Lbs: '2.03

Specification Table

Applicable HosesWire reinforced hoses in accordance with MIL-DTL-24135/2
Component 1Required per Assembly – 1 Material – Monel Description – Elbow Assembly C19853
Component 1ARequired per Assembly – 1 Description – Elbow Material – Monel in accordance with MIL-T-1368 B18873-3
Component 1BRequired per Assembly – 1 Material – Monel in accordance with QQ-N-281 Description – Nipple C20127-1
Component 2Required per Assembly – 2 Description – Socket C19846-2 Material – Steel in accordance with ASTM A108
N'0.74
R'1.25
S'0.75
V'2.47
A'4.52
C'1.06
D'2.65
E'0.61
G'1.500
Equal To Aeroquip No '41-191308-12
Hydrasearch Drawing NumberC20348
IPS Size'3/4
NSN No.4730-00-072-8412
Estimated Weight Per Ft Lbs'2.03
