90ELB-SM1602D-0808

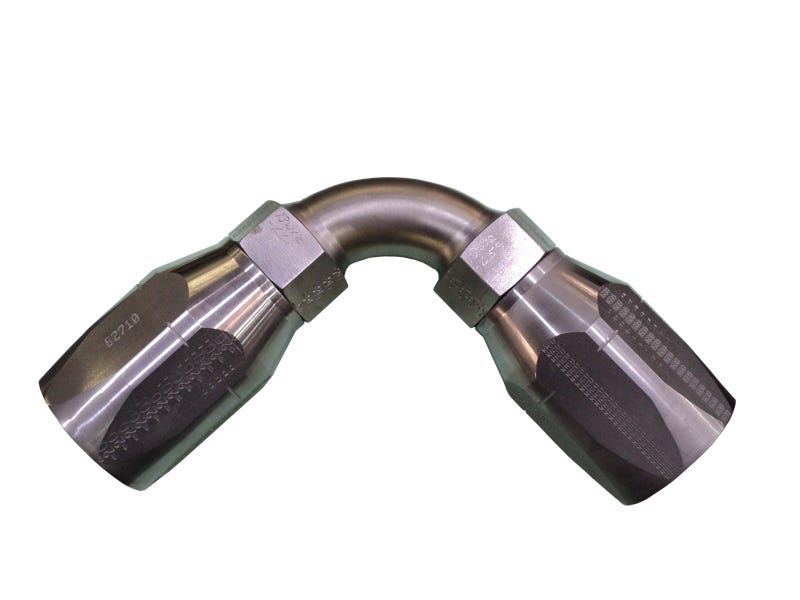

90ELB-SM1602D-0808 – Elbows – 90º Dogleg – Hose to Hose (HS1602 Series)

Print Icon Print Download Icon Download PDF
( DTL-24135/2 )

Description:

Equal to Aeroquip 41-191308,

Specification

  • Applicable Hoses: Wire reinforced hoses in accordance with MIL-DTL-24135/2
  • Component 1: Required per Assembly – 1 Material – Monel Description – Elbow Assembly C19852
  • Component 1A: Required per Assembly – 1 Description – Elbow Material – Monel in accordance with MIL-T-1368 B18873-2
  • Component 1B: Required per Assembly – 1 Material – Monel in accordance with QQ-N-281 Description – Nipple C20126-1
  • Component 2: Required per Assembly – 2 Description – Socket C19699-2 Material – Steel in accordance with ASTM A108
  • N: 0.62''
  • R: 0.75''
  • S: 0.50''
  • V: 2.01''
  • A: 3.44''
  • C: 0.81''
  • D: 1.93''
  • E: .39''
  • G: 1.12''
  • Equal To Aeroquip No : 41-191308-8''
  • Est. Wt. (lbs.): 1.12
  • Hydrasearch Drawing Number: C20347
  • IPS Size: 1/2''
  • NSN No.: 4730-00-072-8411

Specification Table

Applicable HosesWire reinforced hoses in accordance with MIL-DTL-24135/2
Component 1Required per Assembly – 1 Material – Monel Description – Elbow Assembly C19852
Component 1ARequired per Assembly – 1 Description – Elbow Material – Monel in accordance with MIL-T-1368 B18873-2
Component 1BRequired per Assembly – 1 Material – Monel in accordance with QQ-N-281 Description – Nipple C20126-1
Component 2Required per Assembly – 2 Description – Socket C19699-2 Material – Steel in accordance with ASTM A108
N0.62''
R0.75''
S0.50''
V2.01''
A3.44''
C0.81''
D1.93''
E.39''
G1.12''
Equal To Aeroquip No 41-191308-8''
Est. Wt. (lbs.)1.12
Hydrasearch Drawing NumberC20347
IPS Size1/2''
NSN No.4730-00-072-8411
