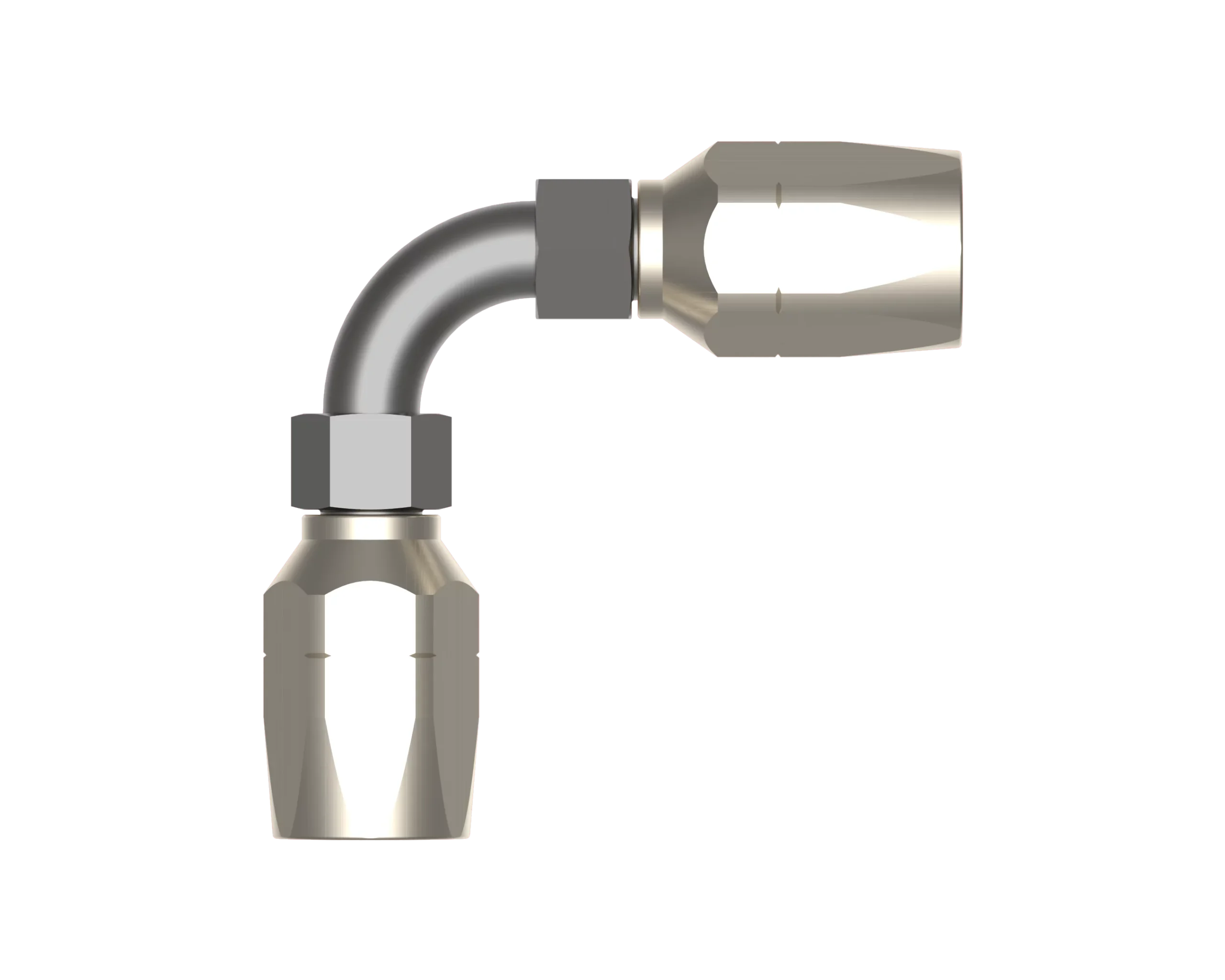

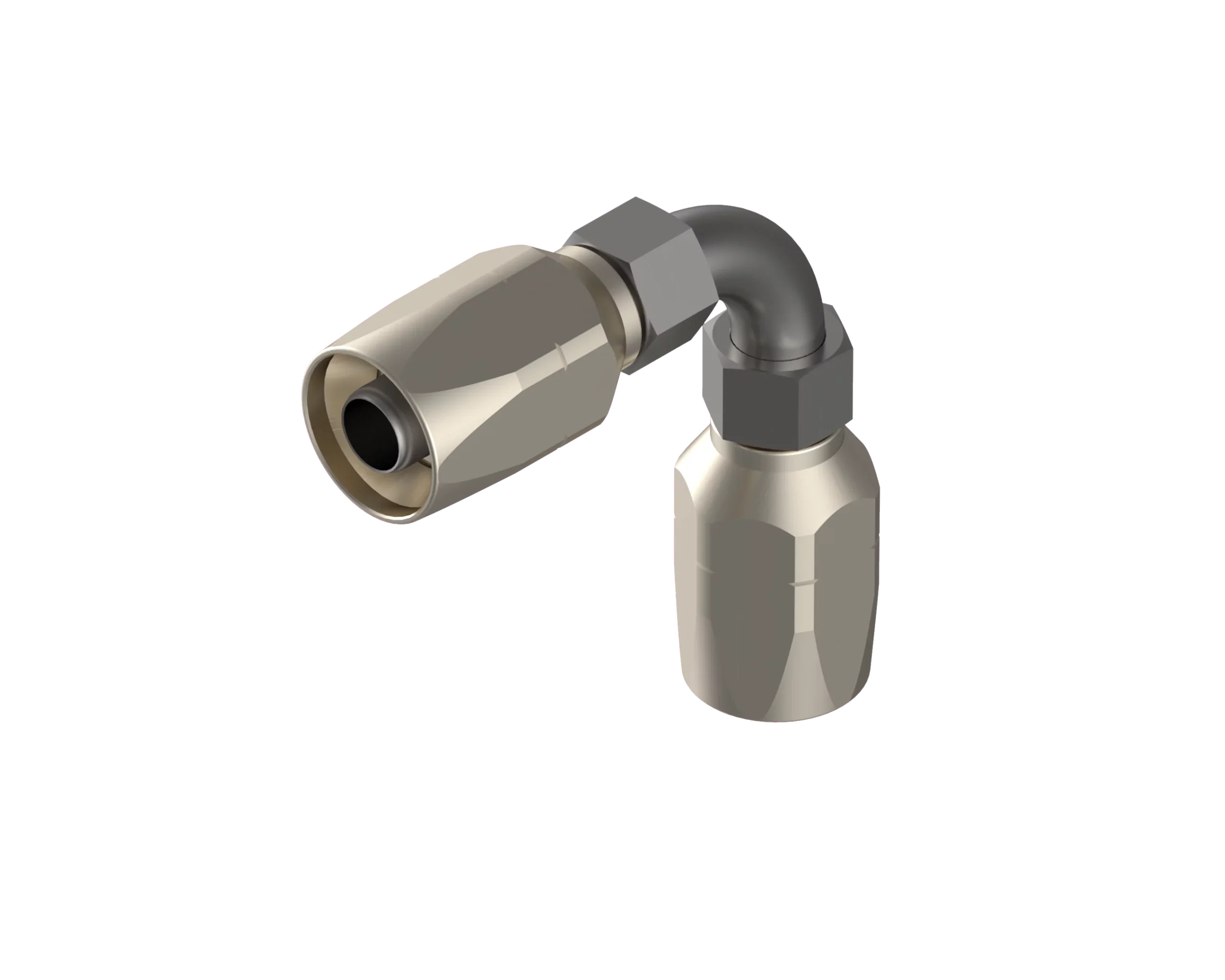

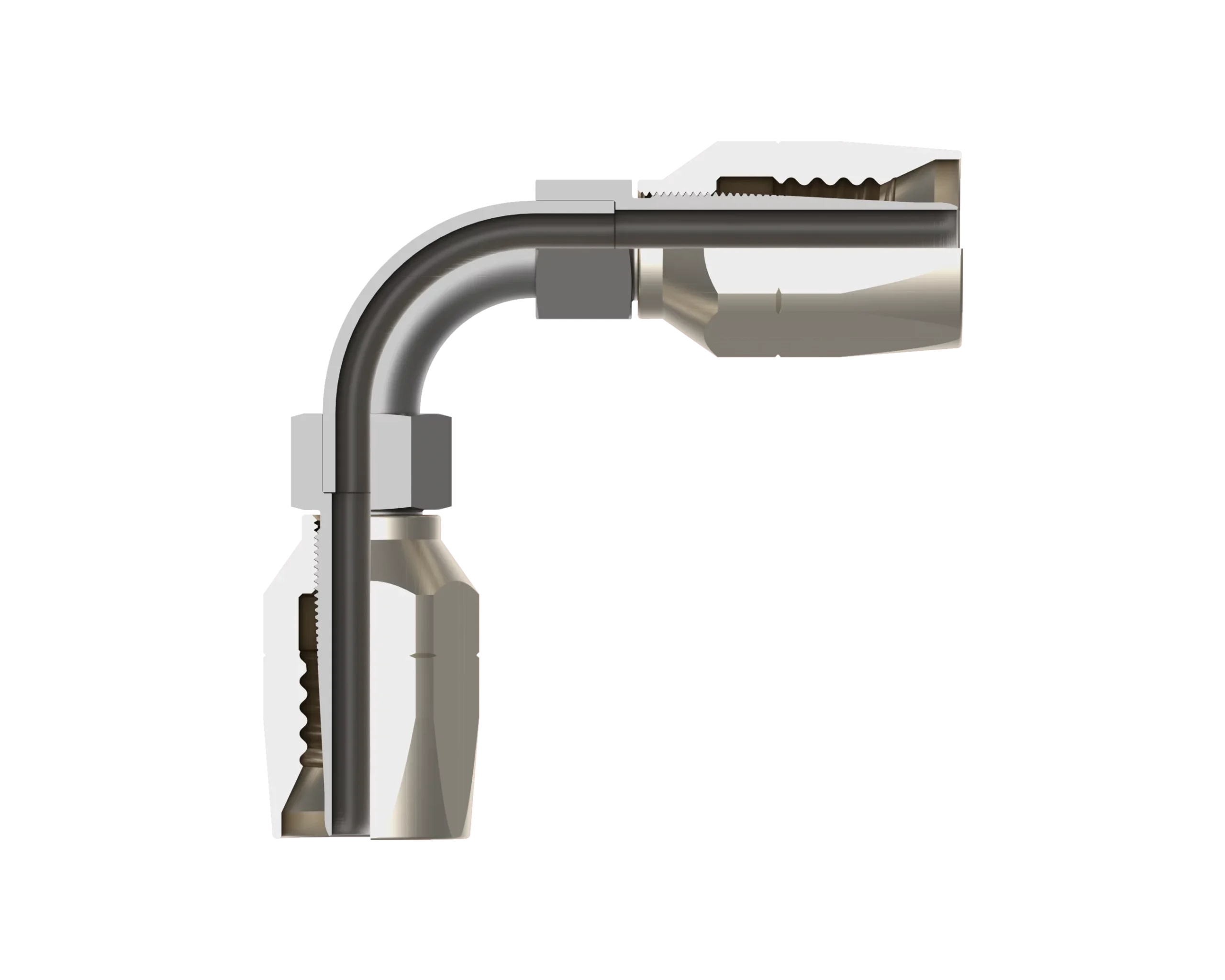

( Elbow - 90° Dogleg )

Description:

Equal to Aeroquip P/N 41-191305,
Use with the following hose: Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

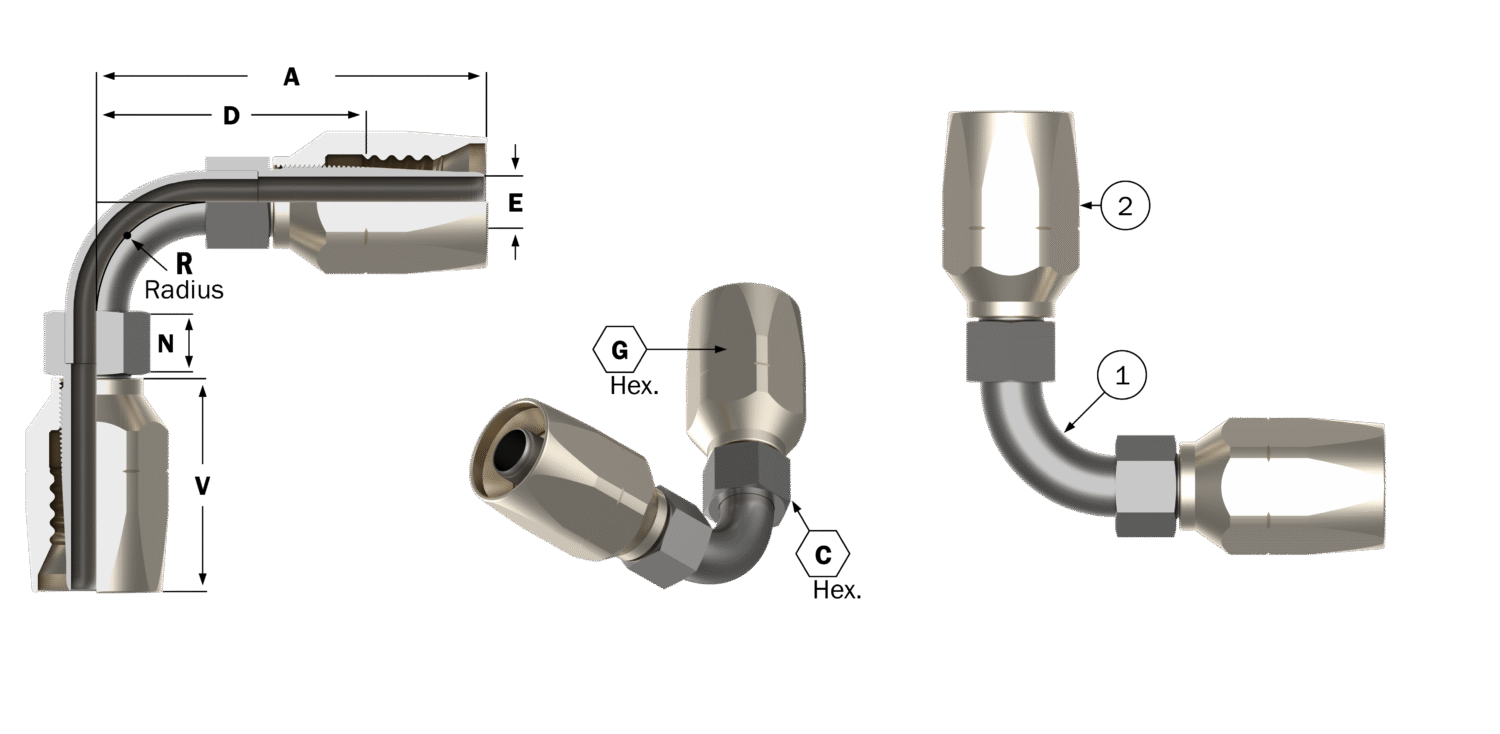

Specification

  • Part Number: 90ELB-SM1600D-1616
  • Hydrasearch Drawing Number: C20532
  • IPS Size: 1
  • A: 5.25
  • C: 1.38
  • D: 3.20
  • E: .82
  • G: 1.81
  • N: .74
  • R: 1.50
  • V: 2.95
  • Est. Wt. (lbs.): 3.77

Specification Table

Part Number90ELB-SM1600D-1616
Hydrasearch Drawing NumberC20532
IPS Size1
A5.25
C1.38
D3.20
E.82
G1.81
N.74
R1.50
V2.95
Est. Wt. (lbs.)3.77

Components Table

DescriptionReq’d per Ass’y0606080812121616202024243232Material
Elbow1C19851C19852C19853C20244C19854C19855C19856Monel
Socket2C19795-2C19680-2C19797-2C19700-2C19798-2C19799-2C19694-2Steel
