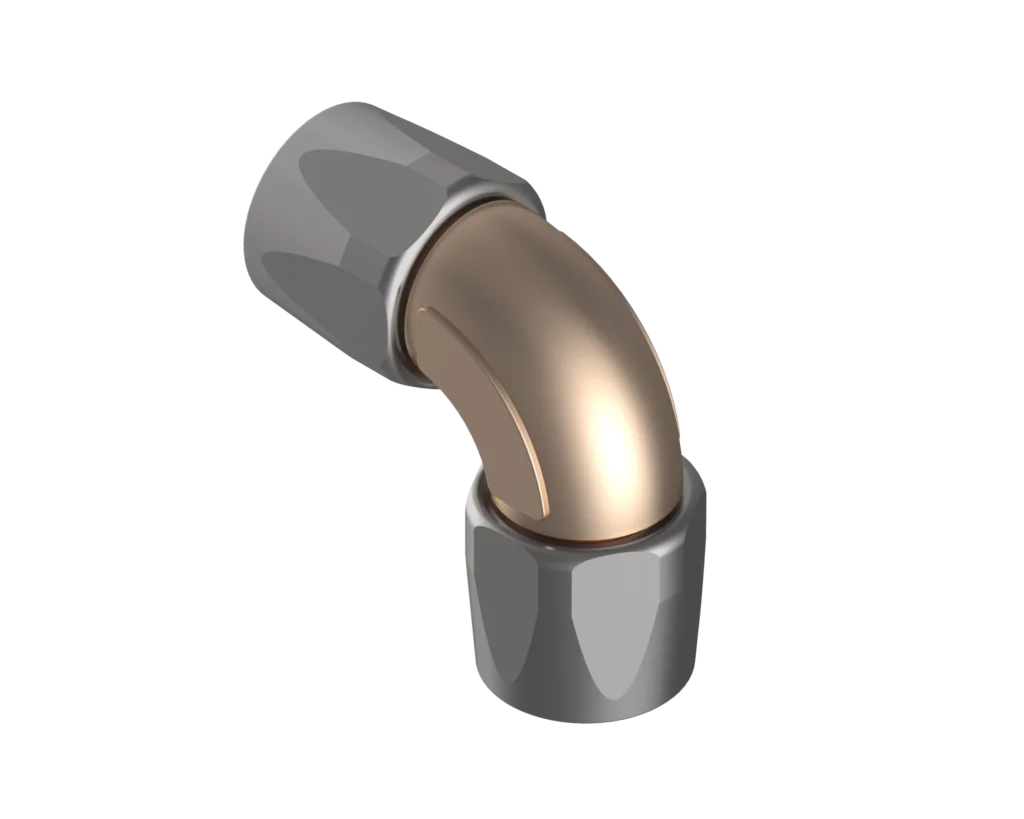

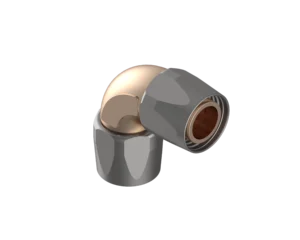

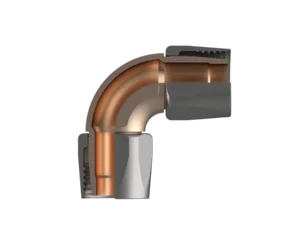

( MIL-DTL-24787/5, Type D, Group VIII, Elbow - 90° Dogleg )

Description:

Equal to Aeroquip P/N 375-190093,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: 90ELB-MB1488D-1616
  • Hydrasearch Drawing Number: C19341
  • IPS Size: 1
  • A: 2.80
  • D: 1.53
  • E: .75
  • G: 1.44
  • R: 1.12
  • V: 1.66
  • X: 1.19
  • Est. Wt. (lbs.): 1.20

Specification Table

Part Number90ELB-MB1488D-1616
Hydrasearch Drawing NumberC19341
IPS Size1
A2.80
D1.53
E.75
G1.44
R1.12
V1.66
X1.19
Est. Wt. (lbs.)1.20

Components Table

DescriptionReq’d per Ass’y161620202424323240404848Material
Elbow1C18121C19007C19012C18804C19025C18117Aluminum. Bronze
Socket2C18667-2C18703-2C18990-2C18662C18991C18992Monel
