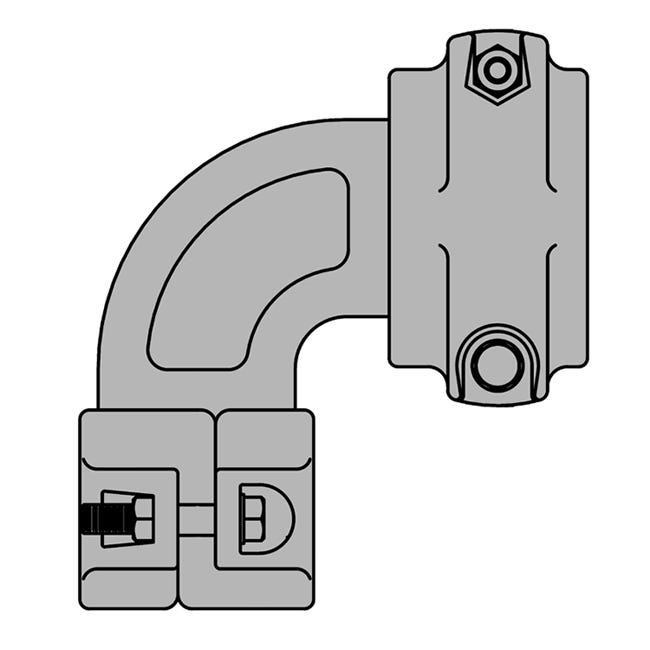

90ELB-LFS-48 – End Fittings – 90º – Hose to Hose

Print Icon Print Download Icon Download PDF

Description:

Equal to Aeroquip HSSA,

Specification

  • Applicable Hoses: Polyester reinforced polyurethane hose P/N HSSA
  • Component 1: Required per Assembly – 1 Description – Elbow C18297 Material – Nickle Aluminum Bronze in accordance with ASTM B148 C95300
  • Component 2: Description – Segment Required per Assembly – 4 D18261 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800
  • Component 3: Description – Bolt Required per Assembly – 4 B17673-1-MP Material – Monel in accordance with QQ-N-286
  • Component 4: Required per Assembly – 4 Description – Nut B18176-MP Material – Monel in accordance with QQ-N-281
  • Component 5: Description – Washer Required per Assembly – 4 B18175-MP Material – Monel in accordance with QQ-N-281
  • Component 5A: Description – Gasket Material – Nitrile Required per Assembly – 2 C18278-4
  • A: 5.18''
  • B: 5.50''
  • C: 3.810''
  • D: 2.94''
  • E: 2.62''
  • G: 2.09''
  • Est. Wt. (lbs.): 15
  • Hydrasearch Drawing Number: C18279
  • IPS Size: 3''

Specification Table

Applicable HosesPolyester reinforced polyurethane hose P/N HSSA
Component 1Required per Assembly – 1 Description – Elbow C18297 Material – Nickle Aluminum Bronze in accordance with ASTM B148 C95300
Component 2Description – Segment Required per Assembly – 4 D18261 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800
Component 3Description – Bolt Required per Assembly – 4 B17673-1-MP Material – Monel in accordance with QQ-N-286
Component 4Required per Assembly – 4 Description – Nut B18176-MP Material – Monel in accordance with QQ-N-281
Component 5Description – Washer Required per Assembly – 4 B18175-MP Material – Monel in accordance with QQ-N-281
Component 5ADescription – Gasket Material – Nitrile Required per Assembly – 2 C18278-4
A5.18''
B5.50''
C3.810''
D2.94''
E2.62''
G2.09''
Est. Wt. (lbs.)15
Hydrasearch Drawing NumberC18279
IPS Size3''
