90ELB-BMC1488D-1616 – Elbows – 90º Dogleg – Hose to Hose Monel/Brass (HS1488 Series)
90ELB-BMC1488D-1616 – Elbows – 90º Dogleg – Hose to Hose Monel/Brass (HS1488 Series)iso-2-105std-95q-cut-100
90ELB-BMC1488D-1616

90ELB-BMC1488D-1616 – Elbows – 90º Dogleg – Hose to Hose Monel/Brass (HS1488 Series)

Print Icon Print Download Icon Download PDF

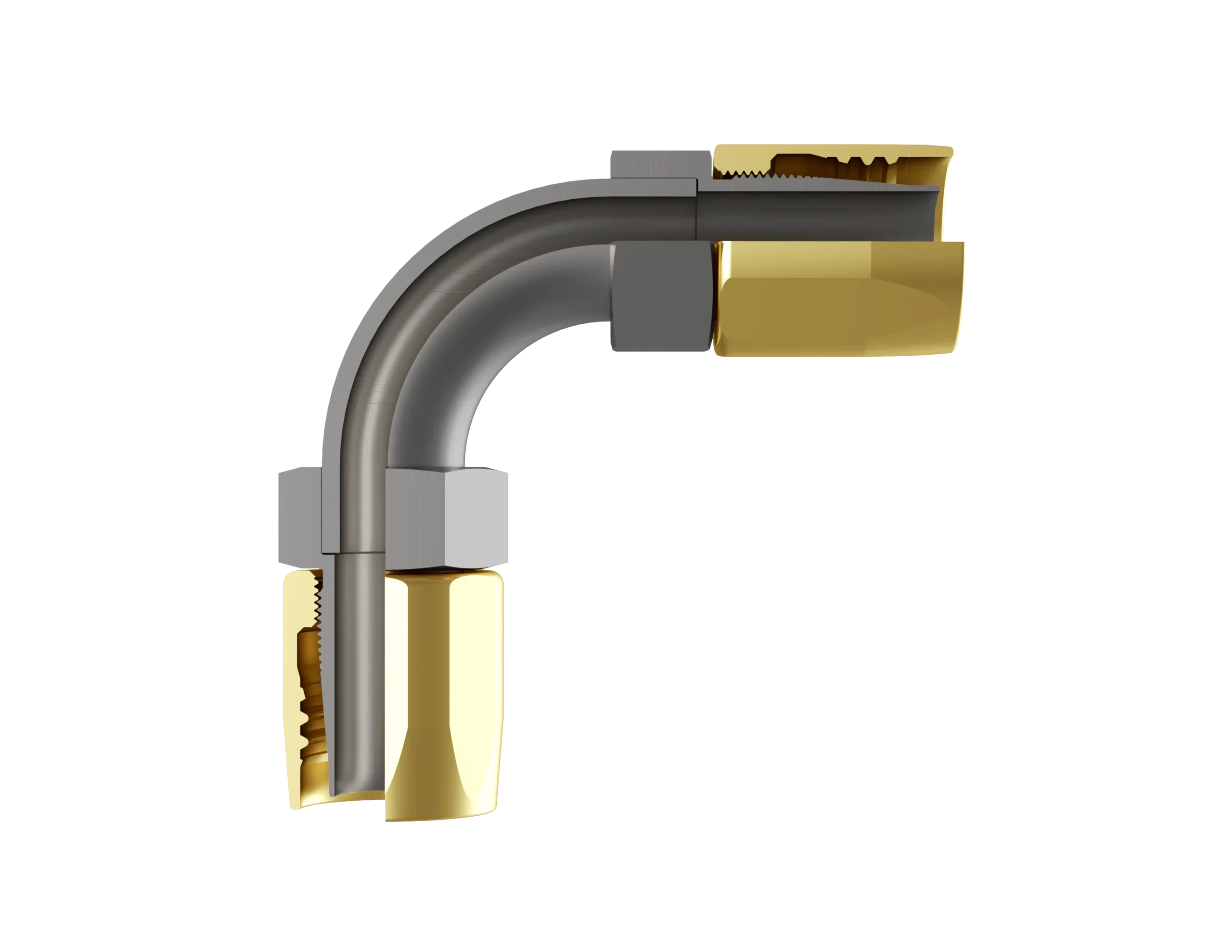

( Elbow - 90° Dogleg )

Description:

Equal to Aeroquip P/N 93-191302,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: 90ELB-BMC1488D-1616
  • Hydrasearch Drawing Number: C19355
  • IPS Size: 1
  • A: 3.93
  • C: 1.38
  • D: 2.66
  • E: .82
  • G: 1.44
  • N: .70
  • R: 1.50
  • S: 1.00
  • V: 1.66
  • Est. Wt. (lbs.): 1.30

Specification Table

Part Number90ELB-BMC1488D-1616
Hydrasearch Drawing NumberC19355
IPS Size1
A3.93
C1.38
D2.66
E.82
G1.44
N.70
R1.50
S1.00
V1.66
Est. Wt. (lbs.)1.30

Components Table

DescriptionReq’d per Ass’y1616Material
Elbow1C19108Monel
Socket2C18667-1Brass
