90ELB-B1488ELF-2432 – End Fittings – 90º – Female Sil-Braze Split Clamp to Hose
90ELB-B1488ELF-2432 – End Fittings – 90º – Female Sil-Braze Split Clamp to Hoseiso-1-113std-90q-cut-95iso-2-100
90ELB-B1488ELF-2432

90ELB-B1488ELF-2432 – End Fittings – 90º – Female Sil-Braze Split Clamp to Hose

Print Icon Print Download Icon Download PDF

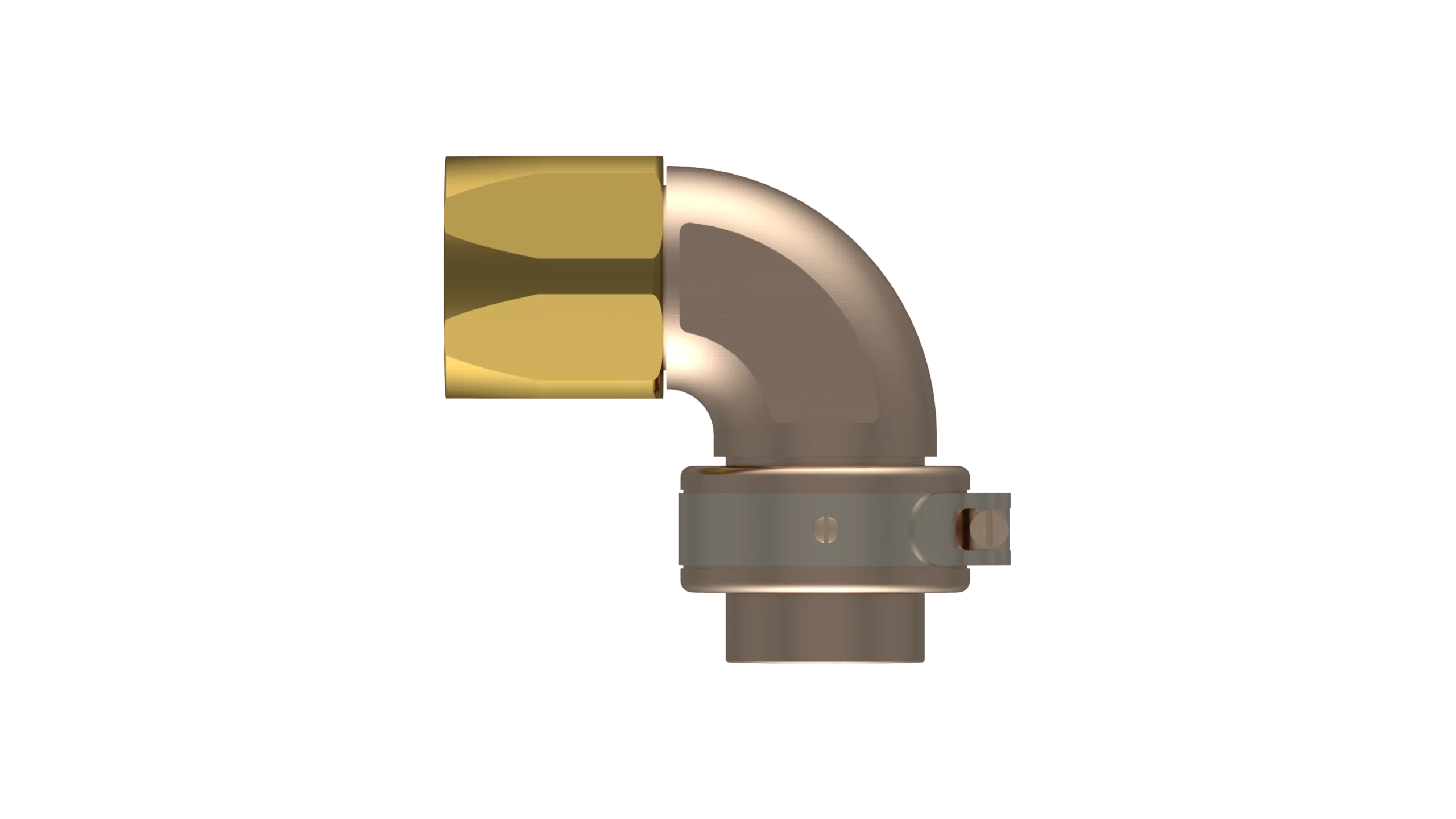

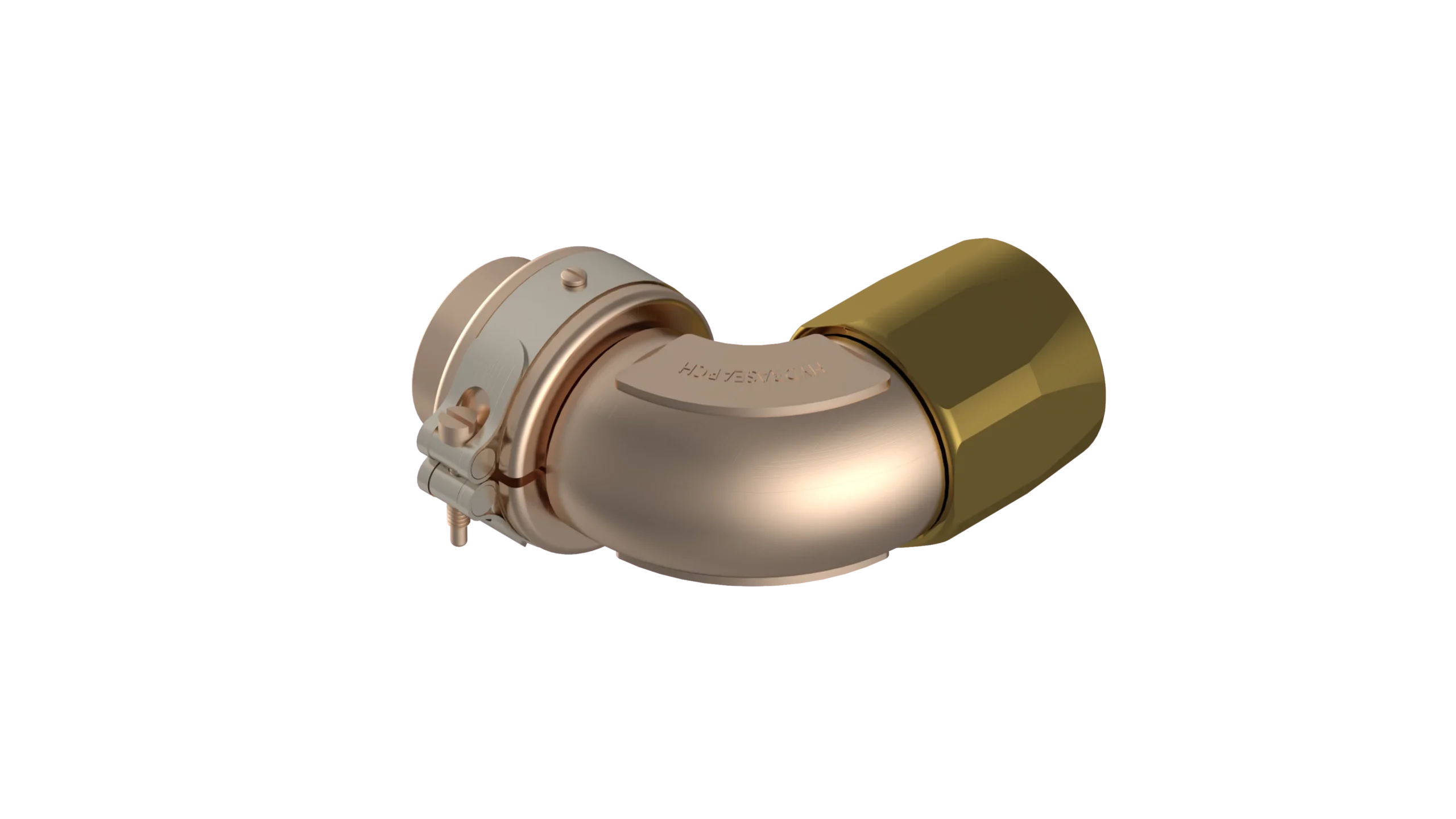

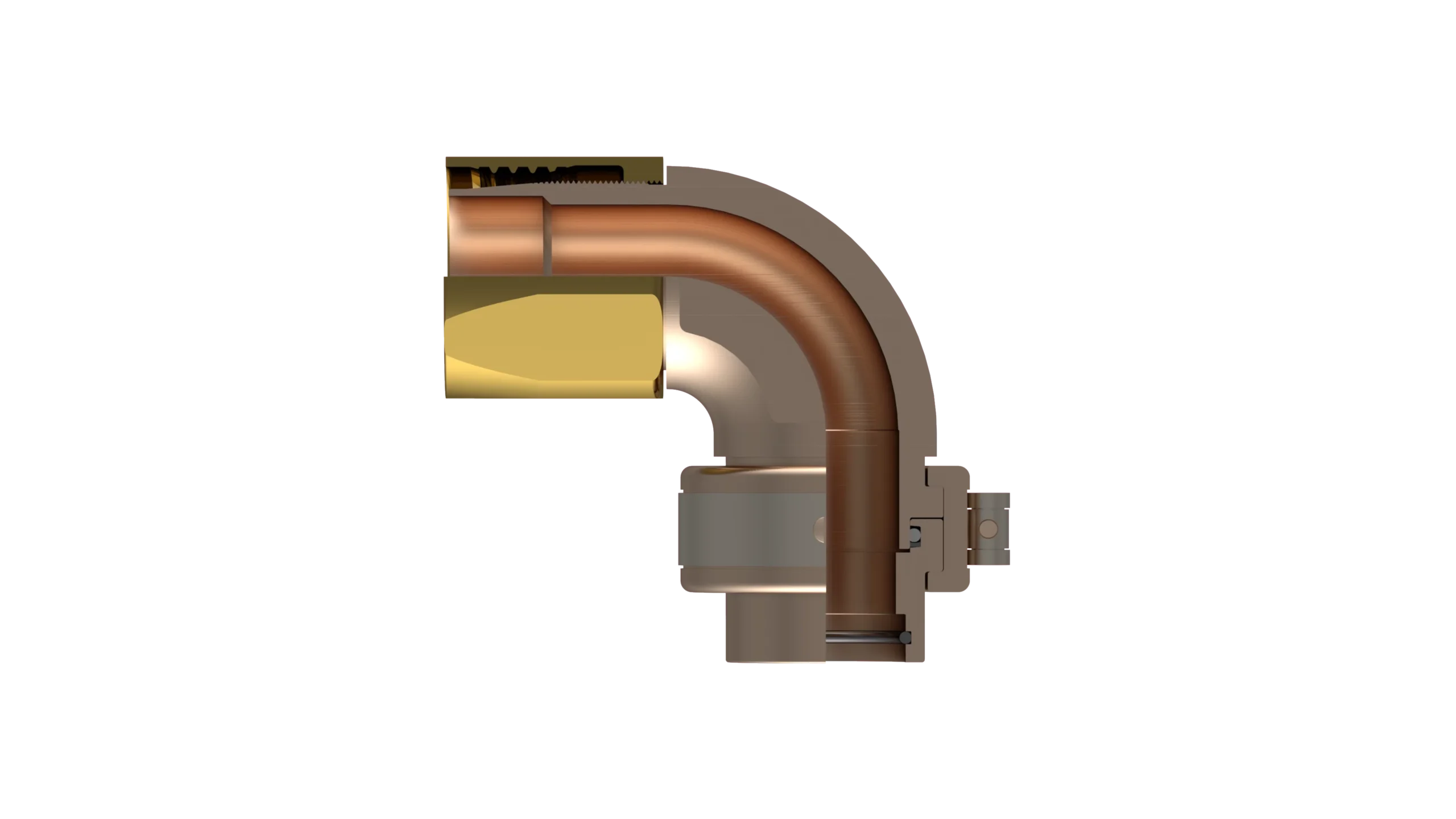

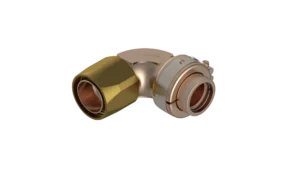

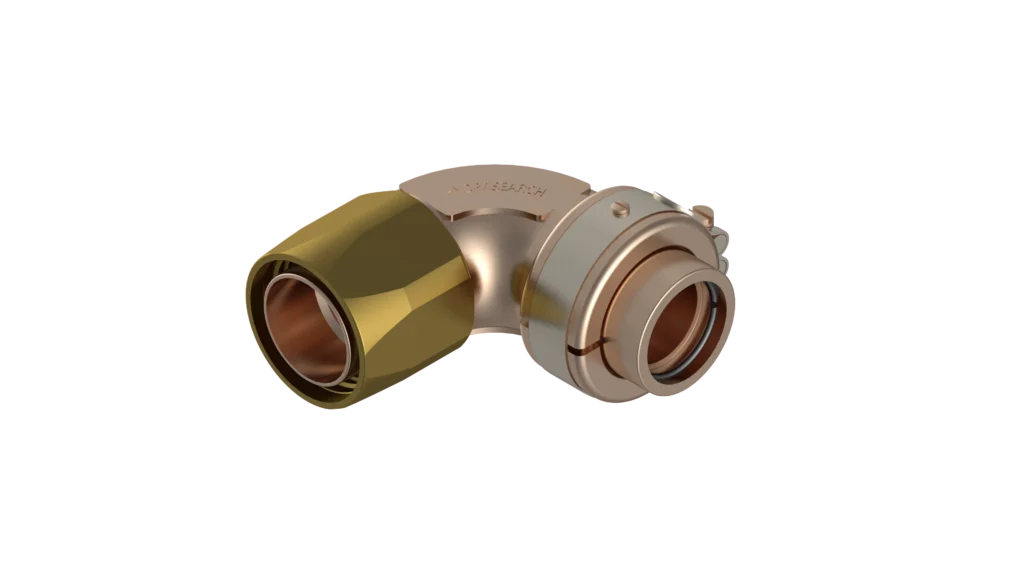

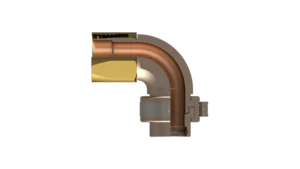

( Elbow - 90° )

Description:

Equal to Aeroquip P/N FC9426-66,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

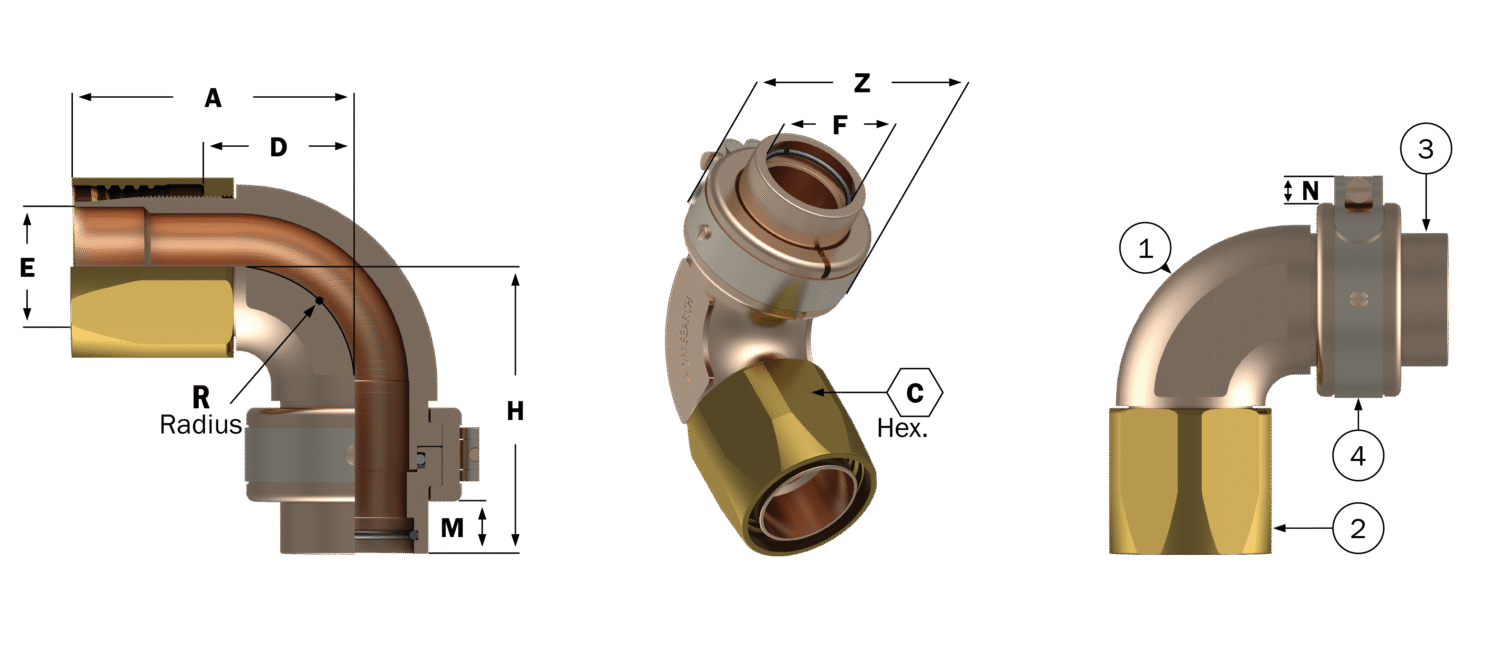

Specification

  • Part Number: 90ELB-B1488ELF-2432
  • Hydrasearch Drawing Number: C19430
  • IPS Size: 1.5
  • A: 3.59
  • C: 2.44
  • D: 2.05
  • E: 1.69
  • F: 1.90
  • H: 3.80
  • M: .62
  • N: .39
  • R: 1.62
  • Z: 3.31
  • Est. Wt. (lbs.): -

Specification Table

Part Number90ELB-B1488ELF-2432
Hydrasearch Drawing NumberC19430
IPS Size1.5
A3.59
C2.44
D2.05
E1.69
F1.90
H3.80
M.62
N.39
R1.62
Z3.31
Est. Wt. (lbs.)-

Components Table

DescriptionReq’d per Ass’y2032243232404048Material
Elbow1C19196C19197C19198C19199Aluminum. Bronze
Socket1C18811C18811C18822C17901Brass
Tailpiece1C19193C19194C18083C18084Aluminum. Bronze
Split Clamp1C18160C18294C18087C18079Aluminum. Bronze
