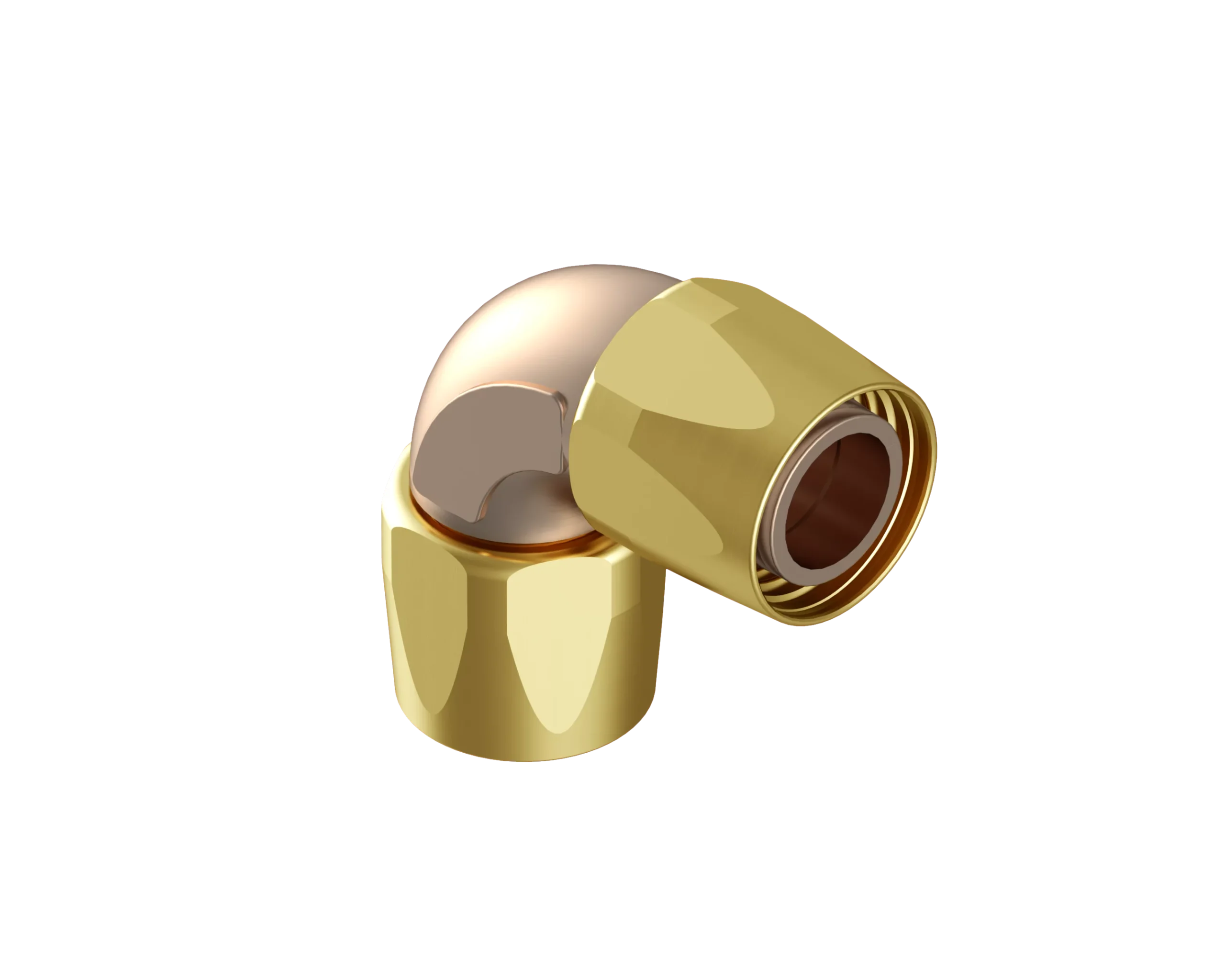

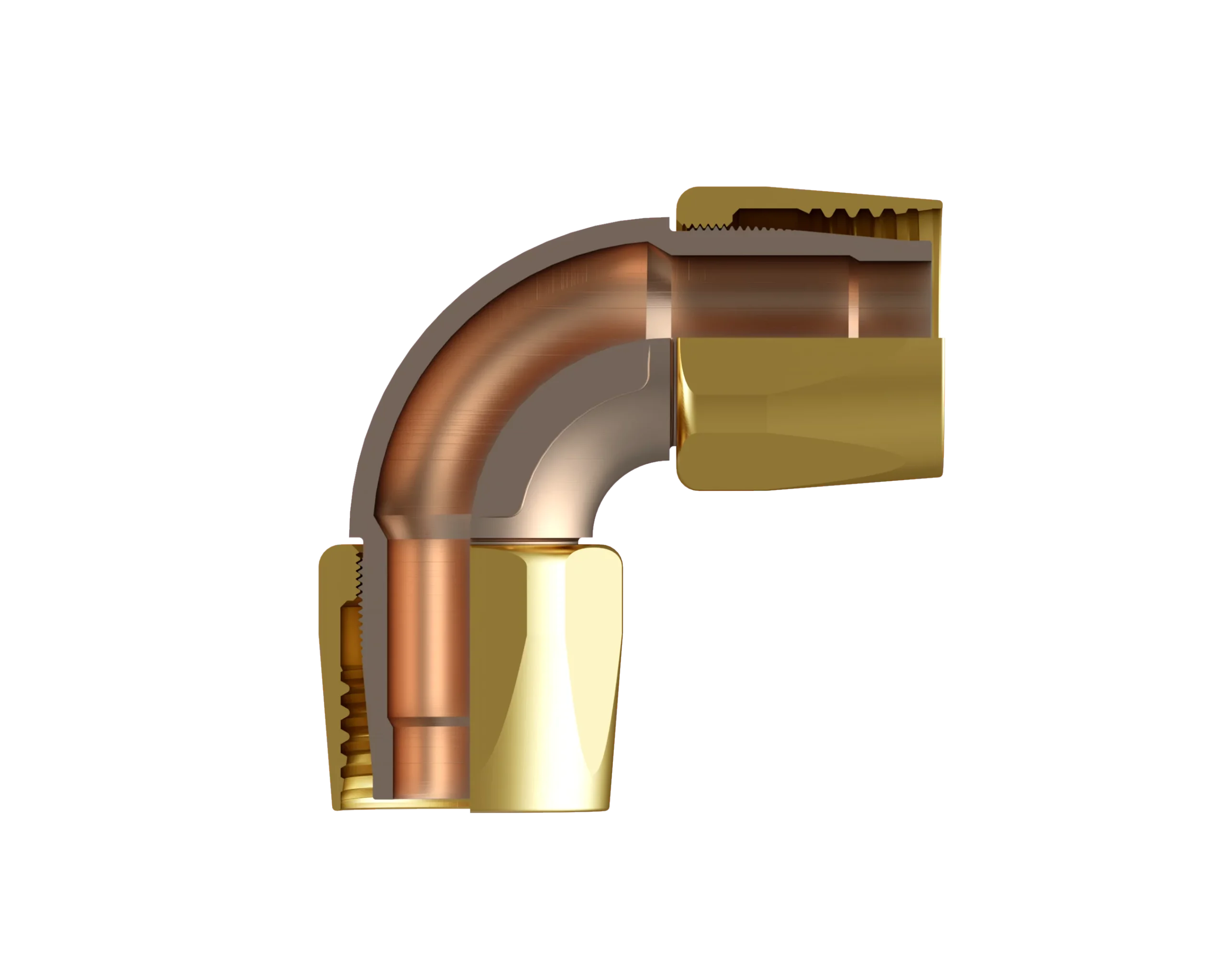

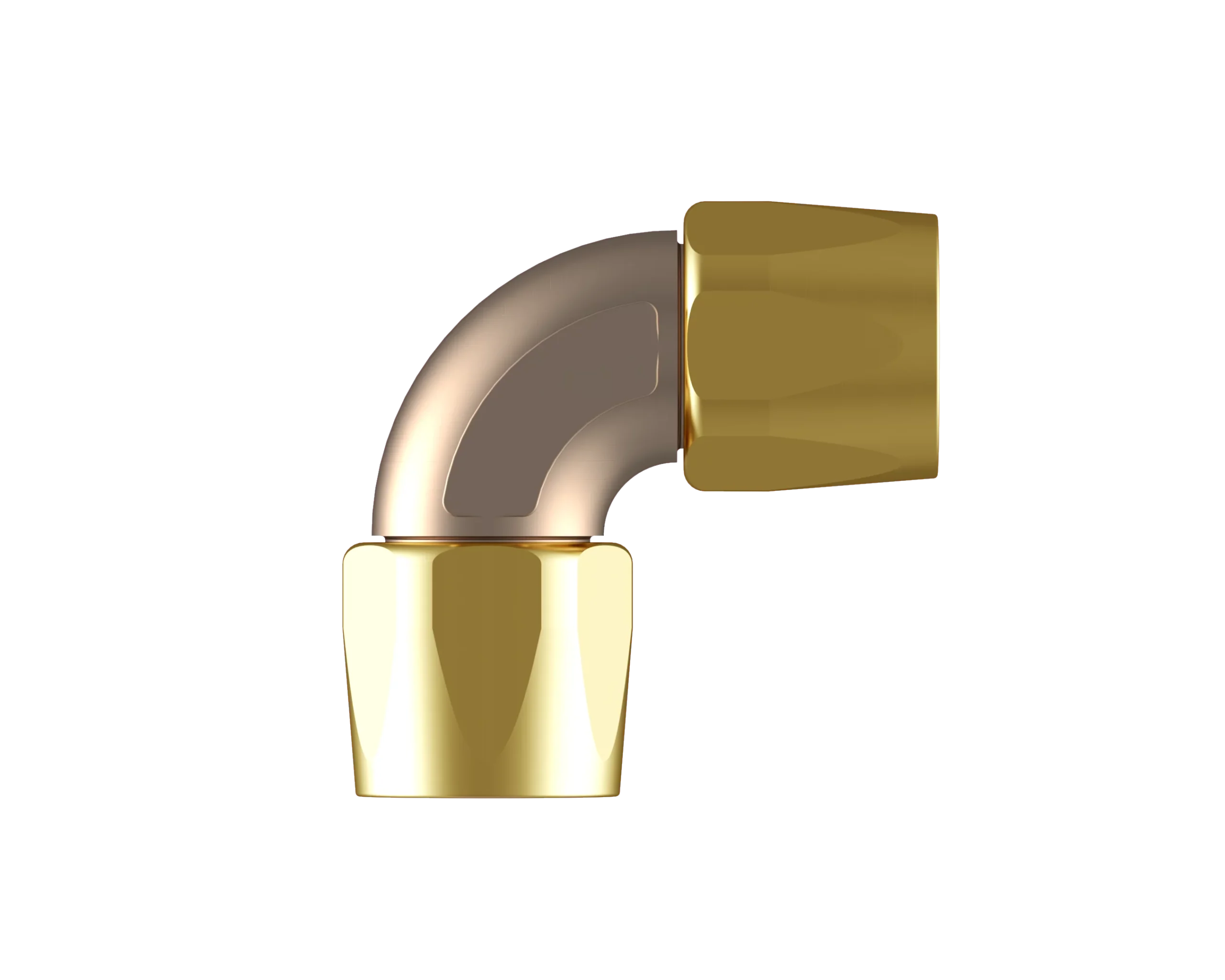

( Elbow - 90° Dogleg )

Description:

Equal to Aeroquip P/N 66-190093,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: 90ELB-B1488D-4848
  • Hydrasearch Drawing Number: C19332
  • IPS Size: 3
  • A: 4.70
  • D: 2.80
  • E: 2.69
  • G: 3.88
  • R: 2.19
  • V: 2.50
  • X: 3.19
  • Est. Wt. (lbs.): 10.40

Specification Table

Part Number90ELB-B1488D-4848
Hydrasearch Drawing NumberC19332
IPS Size3
A4.70
D2.80
E2.69
G3.88
R2.19
V2.50
X3.19
Est. Wt. (lbs.)10.40

Components Table

DescriptionReq’d per Ass’y161620202424323240404848Material
Elbow1C18121C19007C19012C18804C19025C18117Aluminum. Bronze
Socket2C18667-1C18703-1C18990-1C18811C18822C17901Brass
