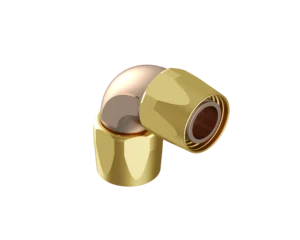

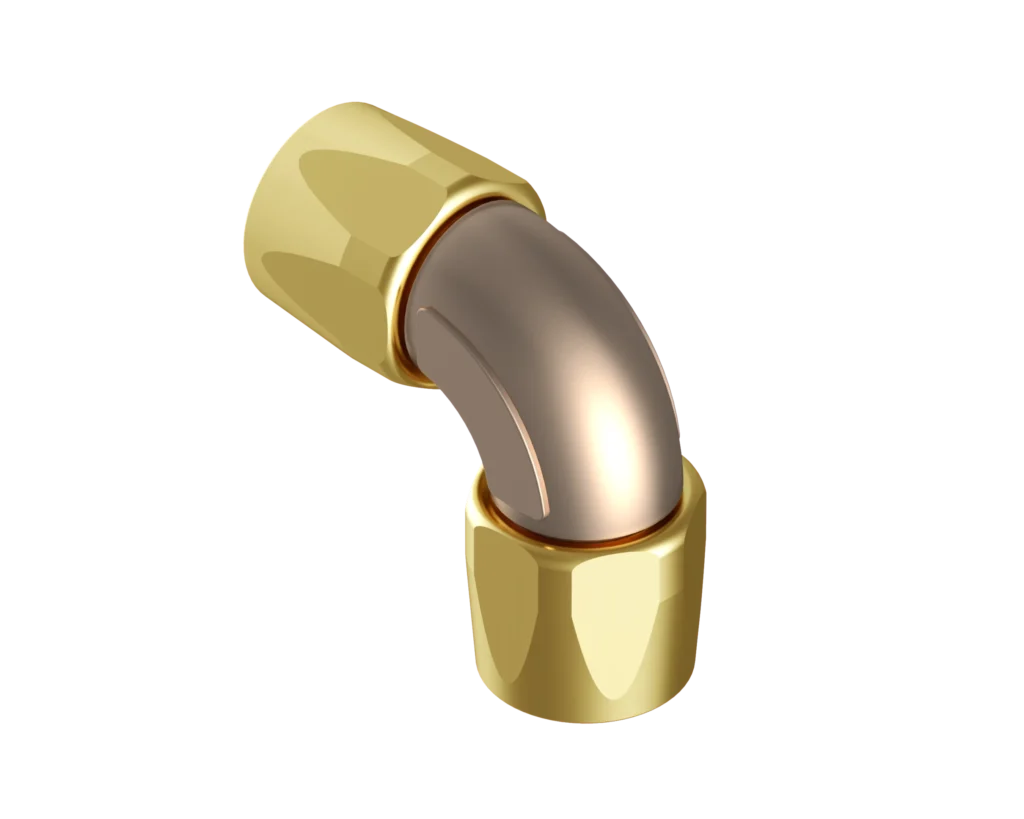

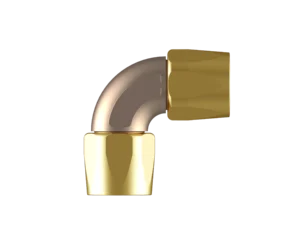

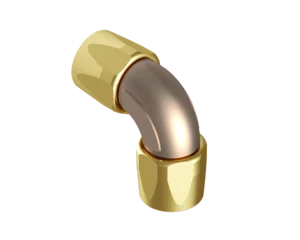

( Elbow - 90° Dogleg )

Description:

Equal to Aeroquip P/N 66-190093,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

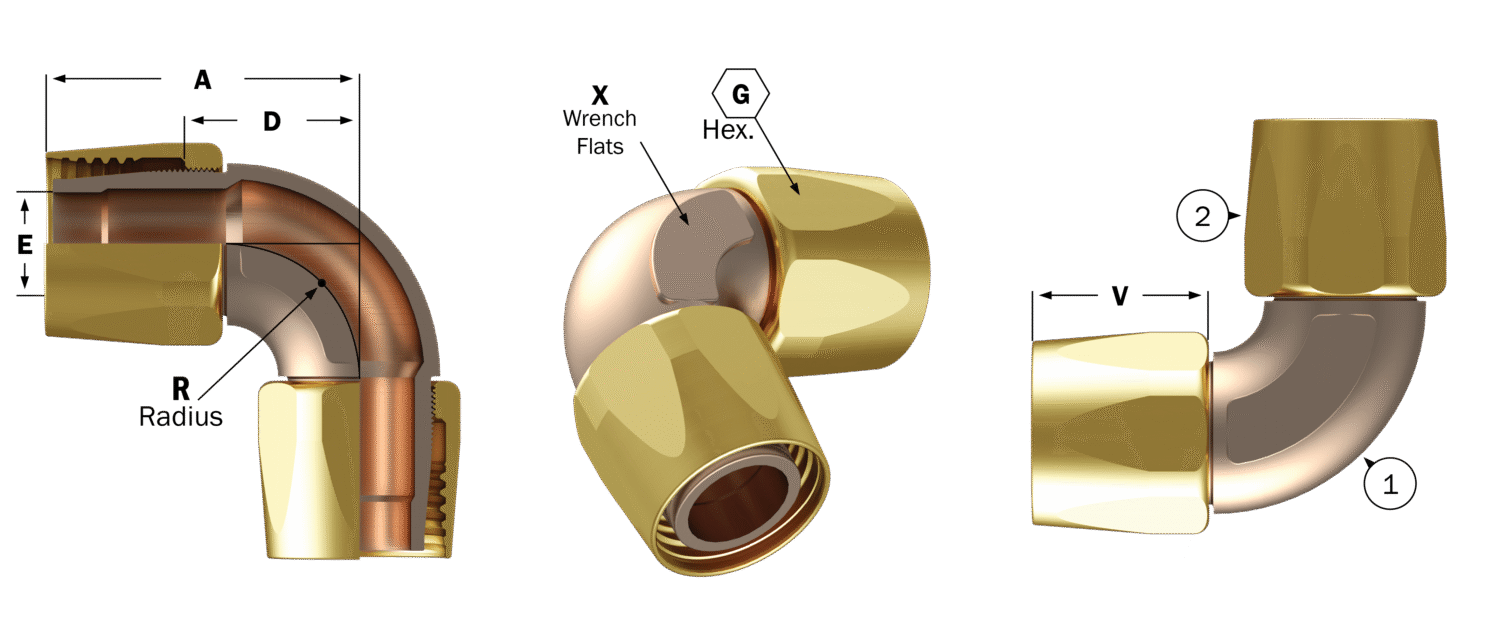

  • Part Number: 90ELB-B1488D-2424
  • Hydrasearch Drawing Number: C19329
  • IPS Size: 1.5
  • A: 3.24
  • D: 1.78
  • E: 1.16
  • G: 1.94
  • R: 1.38
  • V: 1.84
  • X: 1.69
  • Est. Wt. (lbs.): 2.30

Specification Table

Part Number90ELB-B1488D-2424
Hydrasearch Drawing NumberC19329
IPS Size1.5
A3.24
D1.78
E1.16
G1.94
R1.38
V1.84
X1.69
Est. Wt. (lbs.)2.30

Components Table

DescriptionReq’d per Ass’y161620202424323240404848Material
Elbow1C18121C19007C19012C18804C19025C18117Aluminum. Bronze
Socket2C18667-1C18703-1C18990-1C18811C18822C17901Brass
