90ELB-6-ER512-SS

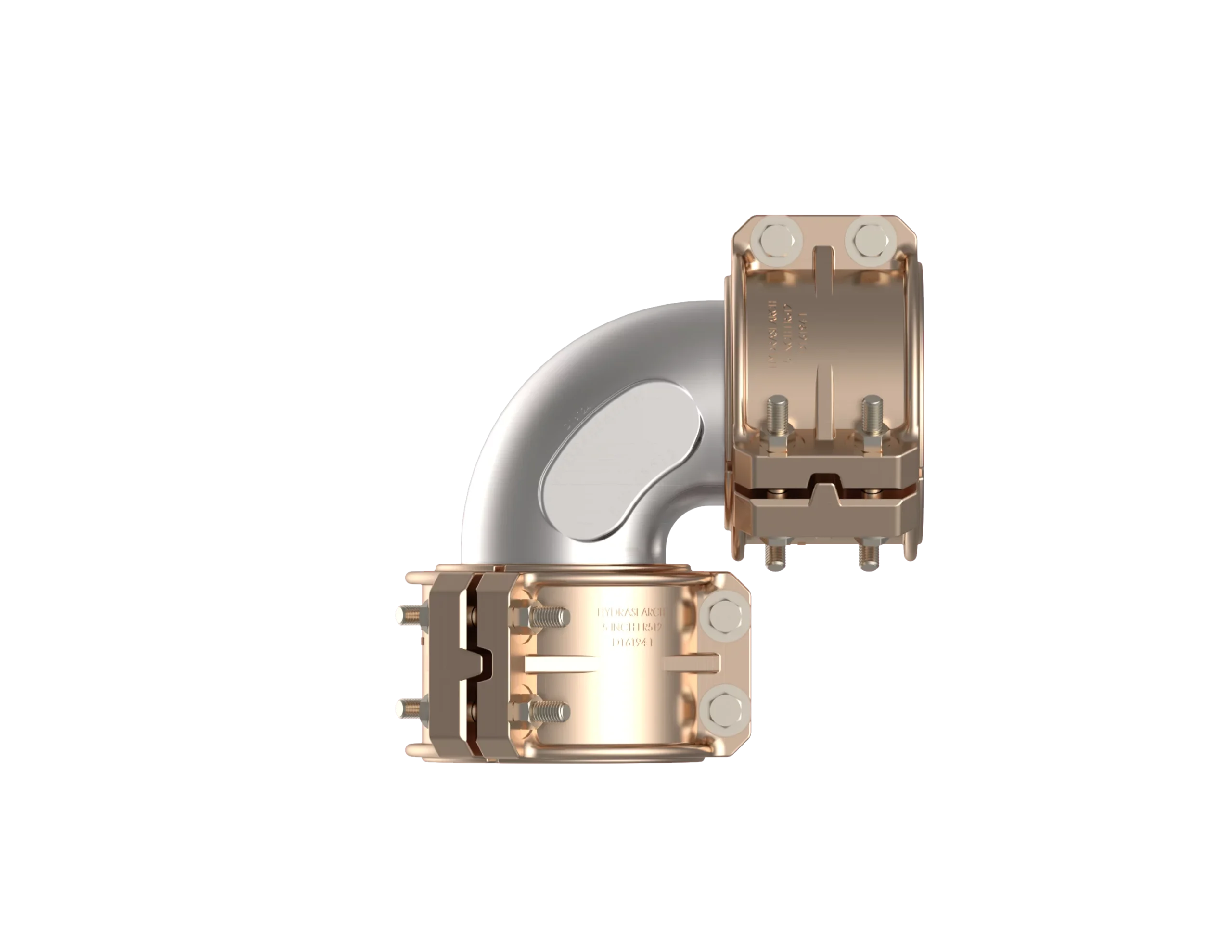

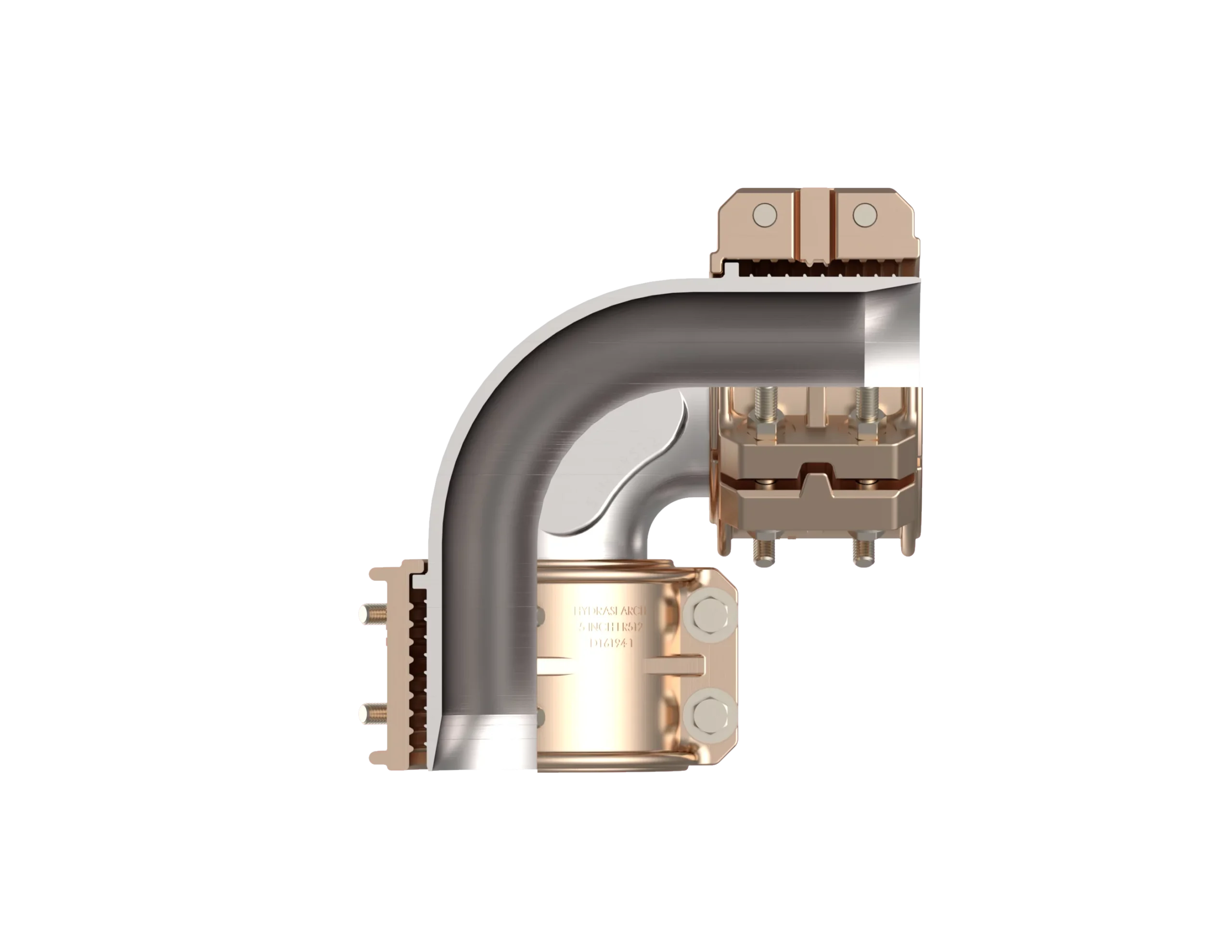

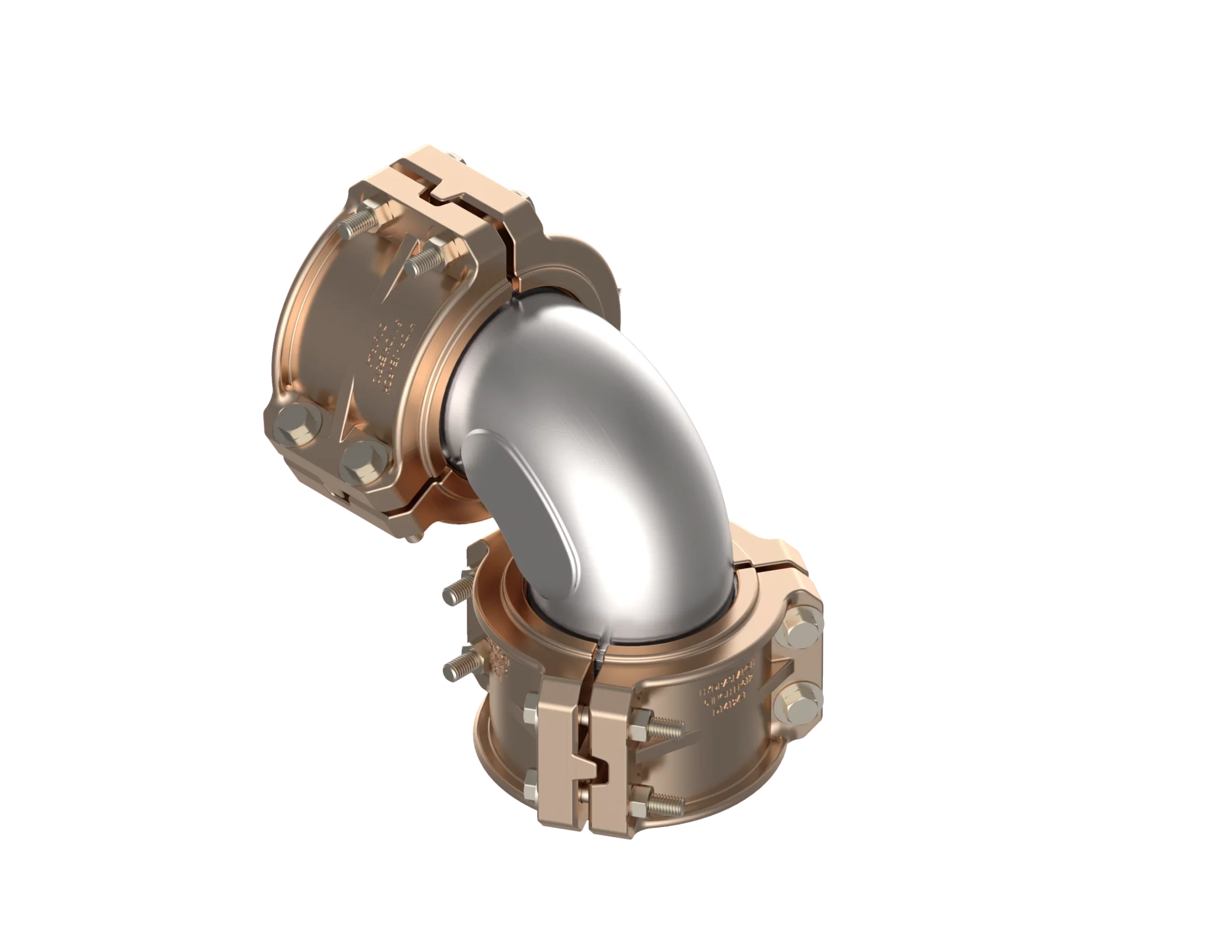

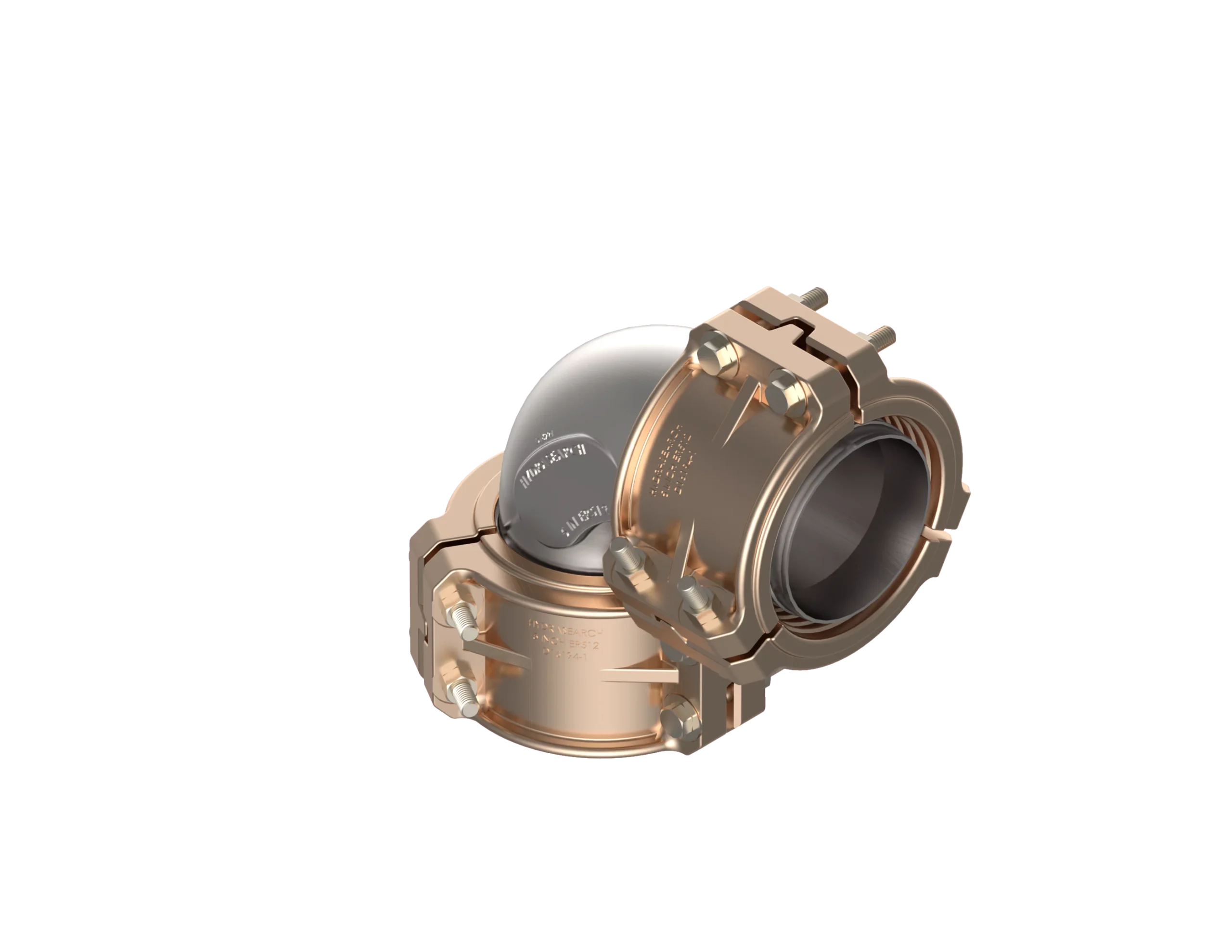

90ELB-6-ER512-SS – Elbow Fittings – 90º Dogleg – Hose to Hose
Print
Download PDF
( MIL-DTL-24787/5, Type D, Group IX, Elbow - 90 ° Dogleg )
Description:
Equal to Aeroquip P/N FC7754-410,
Use with the following hose:
ER512 & 2580
Specification
Specification Table
| Part Number | 90ELB-6-ER512-SS |
|---|---|
| Hydrasearch Drawing Number | D17681 |
| IPS Size | 6 |
| A | 9.18 |
| D | 5.05 |
| E | 5.40 |
| R | 4.00 |
| T | 10.38 |
| Est. Wt. (lbs.) | 85.00 |
Components Table
| Description | Req’d per Ass’y | 5" | 6" | 8" | 10" | Material |
| Elbow | 1 | D18362 | D18111 | D17759 | D18317 | Stainless Steel |
| Grip Segment | 6 | D16194-1 | D16198-1 | D16080-1 | D18345-1 | Aluminum. Bronze |
| Bolt | 12 | D16197-4 | D16197-4 | B16551-1 | B16551-1 | Monel |
| Nut | 12 | D16197-6 | D16197-6 | B16551-3 | B16551-3 | Monel |
| Washer | 12 | D16197-5 | D16197-5 | B16551-2 | B16551-2 | Monel |
