90ELB-6-ER512-2P

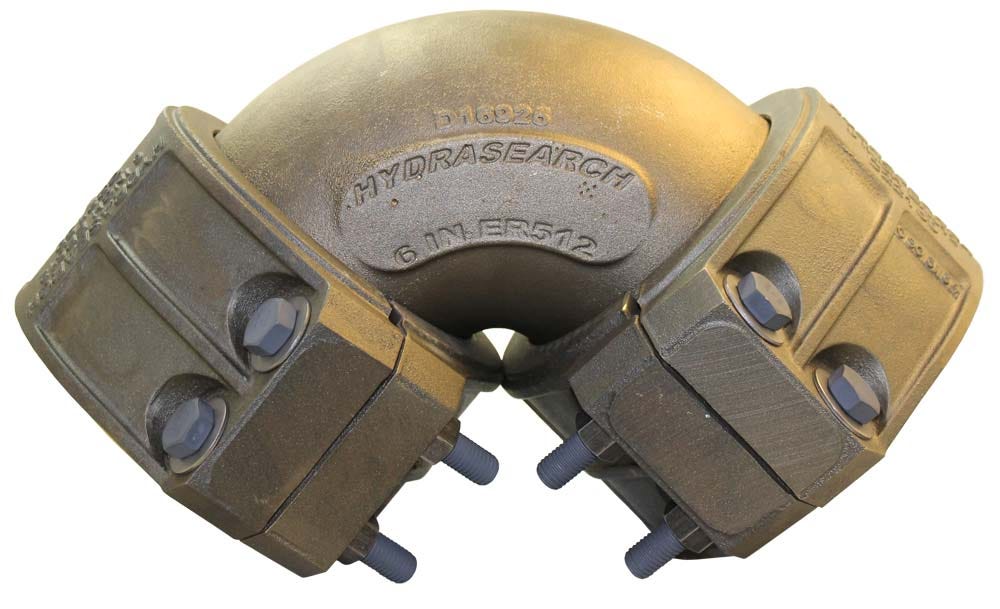

90ELB-6-ER512-2P – 2-Piece Elbow Fittings – 90º Dogleg – Hose to Hose (MIL-DTL-24787/5, Type D, Group IX)

Print Icon Print Download Icon Download PDF
( ER512 & 2580 )

Description:

Equal to Aeroquip FC7754-188,

Specification

  • Applicable Hoses: ER512 2580
  • Component 1: Required per Assembly – 1 Description – Elbow D16925 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800
  • Component 2: Description – Segment Required per Assembly – 4 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800 C22159
  • Component 3: Description – Bolt Required per Assembly – 8 Material – Monel in accordance with QQ-N-286 C22173-1
  • Component 4: Description – Lock Nut B16551-3 Required per Assembly – 8 Material – Monel in accordance with QQ-N-281
  • Component 5: Description – Washer B16551-2 Material – Monel in accordance with QQ-N-281 Required per Assembly – 8
  • R: 4.00''
  • T: 11.32''
  • A: 9.18''
  • D: 5.05''
  • E: 5.40''
  • Equal To Aeroquip No : Fc7754-9696-188
  • Weight Lbs: 85
  • Hydrasearch Drawing Number: C22202
  • Size in: 6''
  • Mil Spec: Mil-Dtl-24787/5
  • NSN No.: 4730-01-092-6127

Specification Table

Applicable HosesER512 2580
Component 1Required per Assembly – 1 Description – Elbow D16925 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800
Component 2Description – Segment Required per Assembly – 4 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800 C22159
Component 3Description – Bolt Required per Assembly – 8 Material – Monel in accordance with QQ-N-286 C22173-1
Component 4Description – Lock Nut B16551-3 Required per Assembly – 8 Material – Monel in accordance with QQ-N-281
Component 5Description – Washer B16551-2 Material – Monel in accordance with QQ-N-281 Required per Assembly – 8
R4.00''
T11.32''
A9.18''
D5.05''
E5.40''
Equal To Aeroquip No Fc7754-9696-188
Weight Lbs85
Hydrasearch Drawing NumberC22202
Size in6''
Mil SpecMil-Dtl-24787/5
NSN No.4730-01-092-6127
