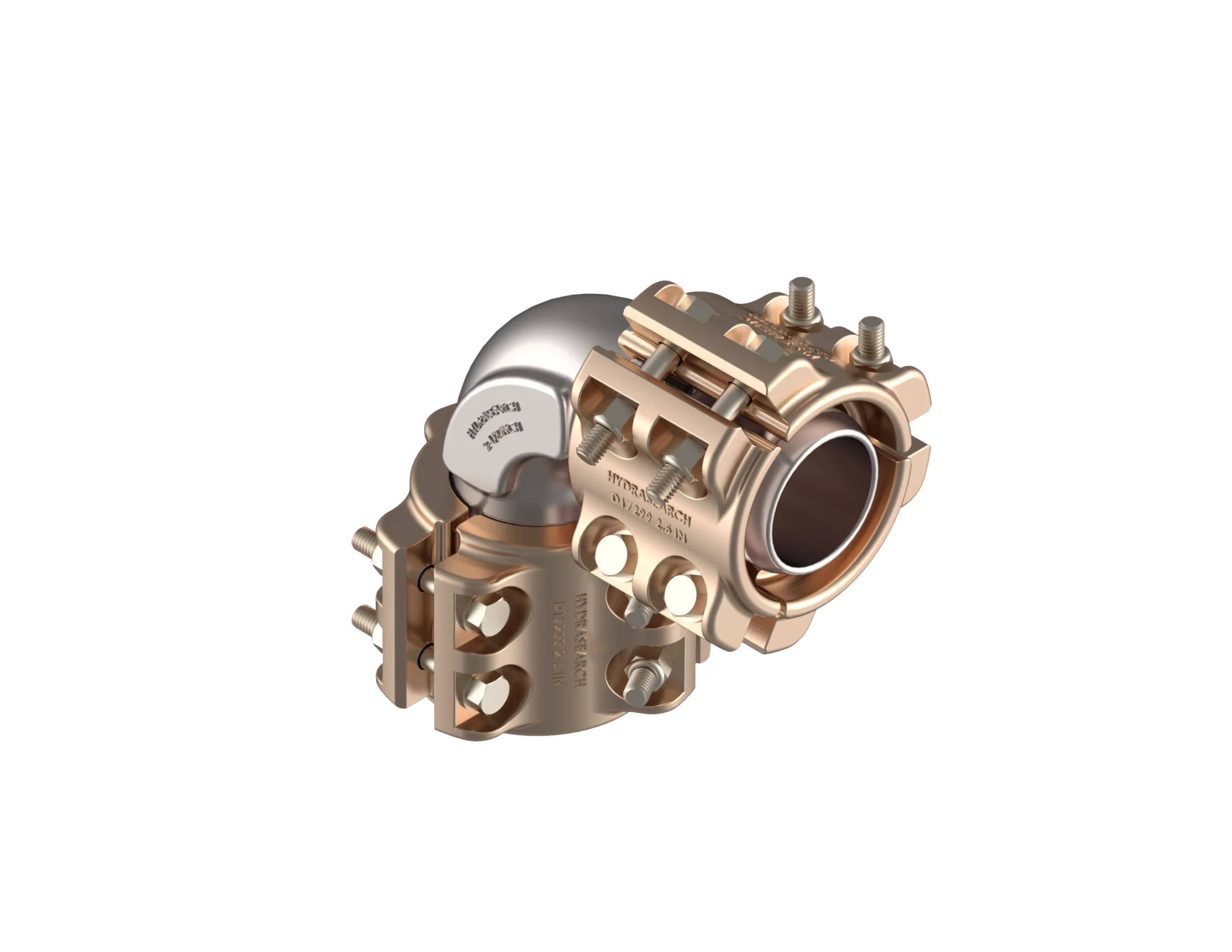

ISO 1 30 scaled
ISO 1 30 scalediso-1-31iso-2-27std-26q-cut-30
90ELB-449E-40-SS

90ELB-449E-40-SS

Print Icon Print Download Icon Download PDF

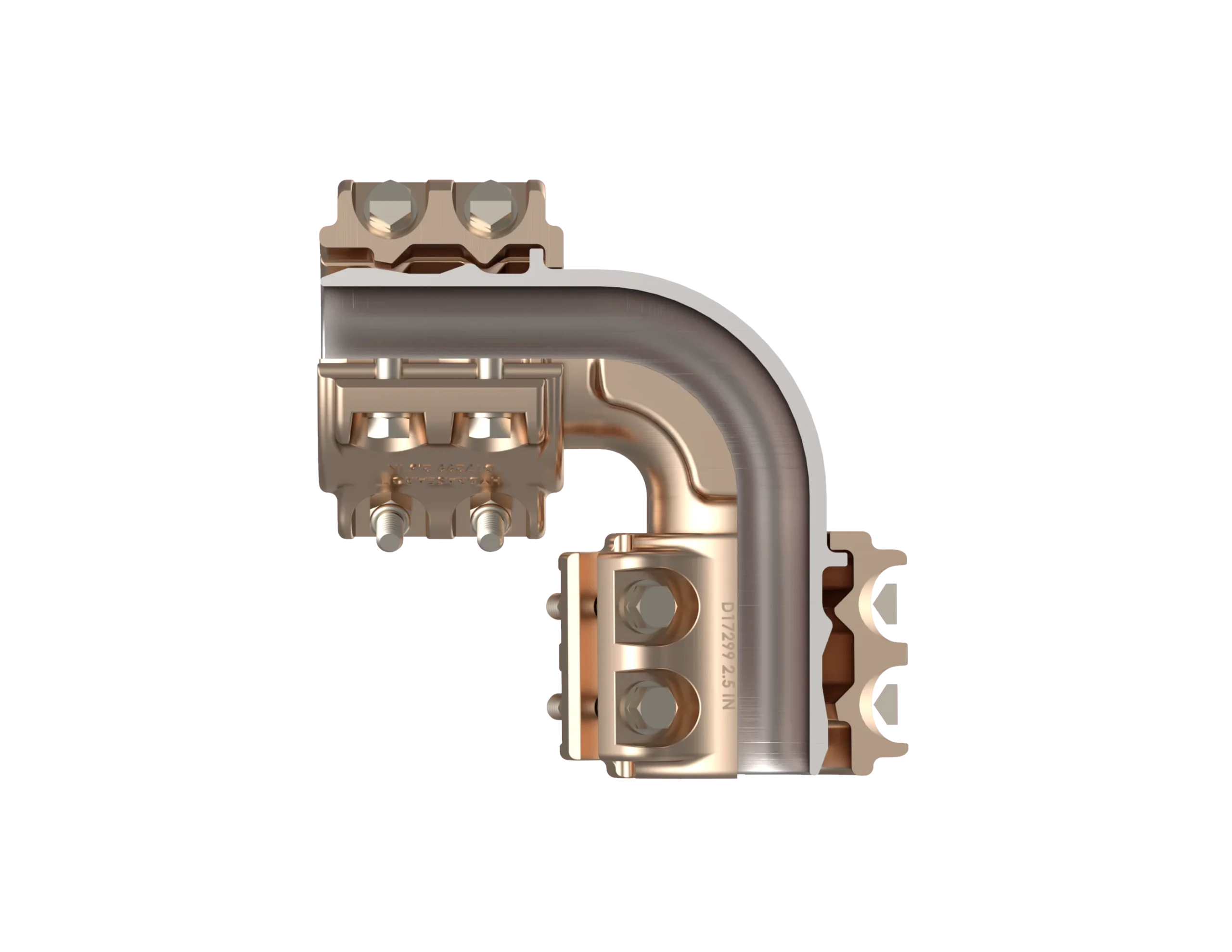

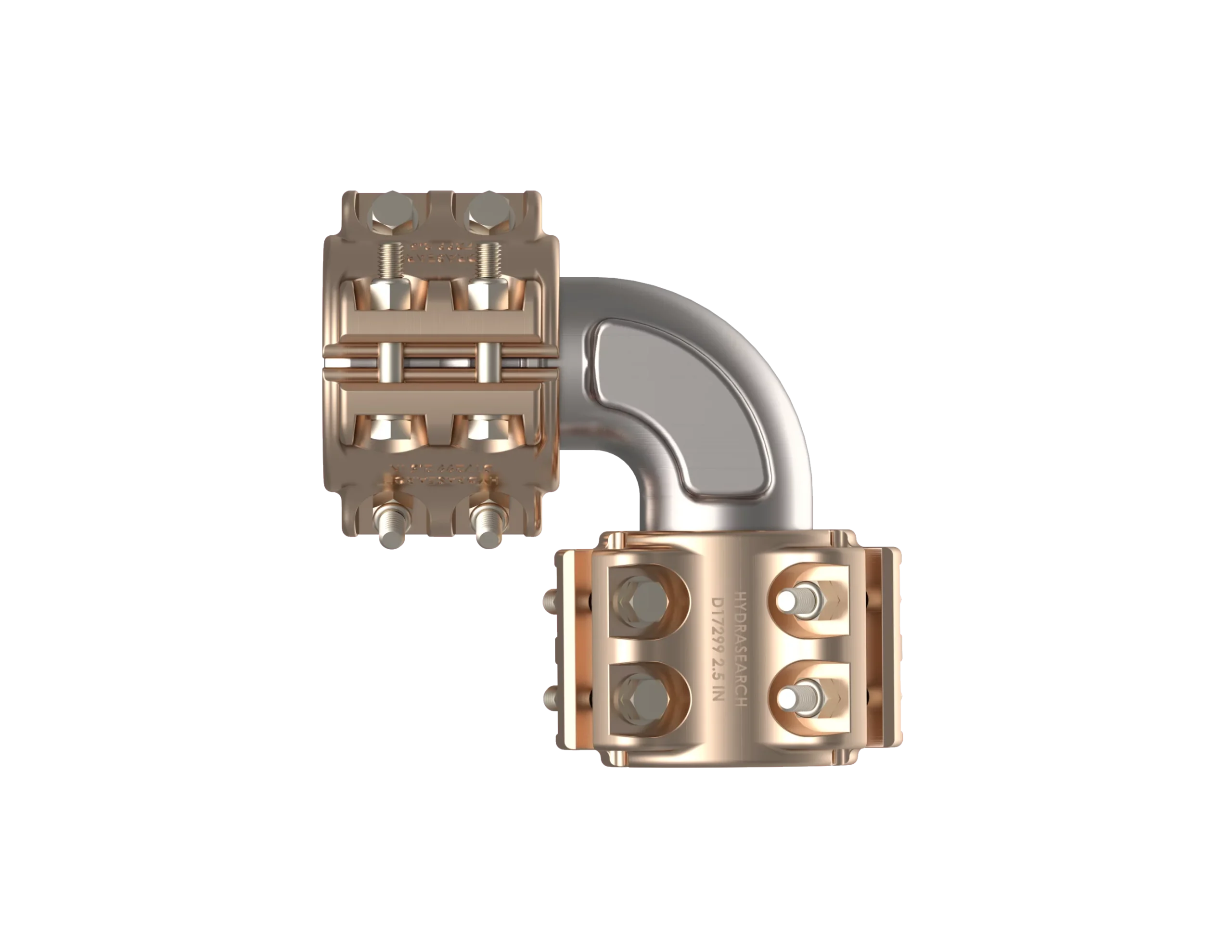

( Elbow - 90° Dogleg )

Description:

Equal to Aeroquip P/N 412-190717,
Use with the following hose: HS4265, HS4224, 2562, 150901

Specification

  • Part Number: 90ELB-449E-40-SS
  • Hydrasearch Drawing Number: D18506
  • IPS Size: 2.5
  • A: 5.75
  • D: 2.84
  • R: 1.88
  • T: 5.35
  • Est. Wt. (lbs.): 12.00

Specification Table

Part Number90ELB-449E-40-SS
Hydrasearch Drawing NumberD18506
IPS Size2.5
A5.75
D2.84
R1.88
T5.35
Est. Wt. (lbs.)12.00

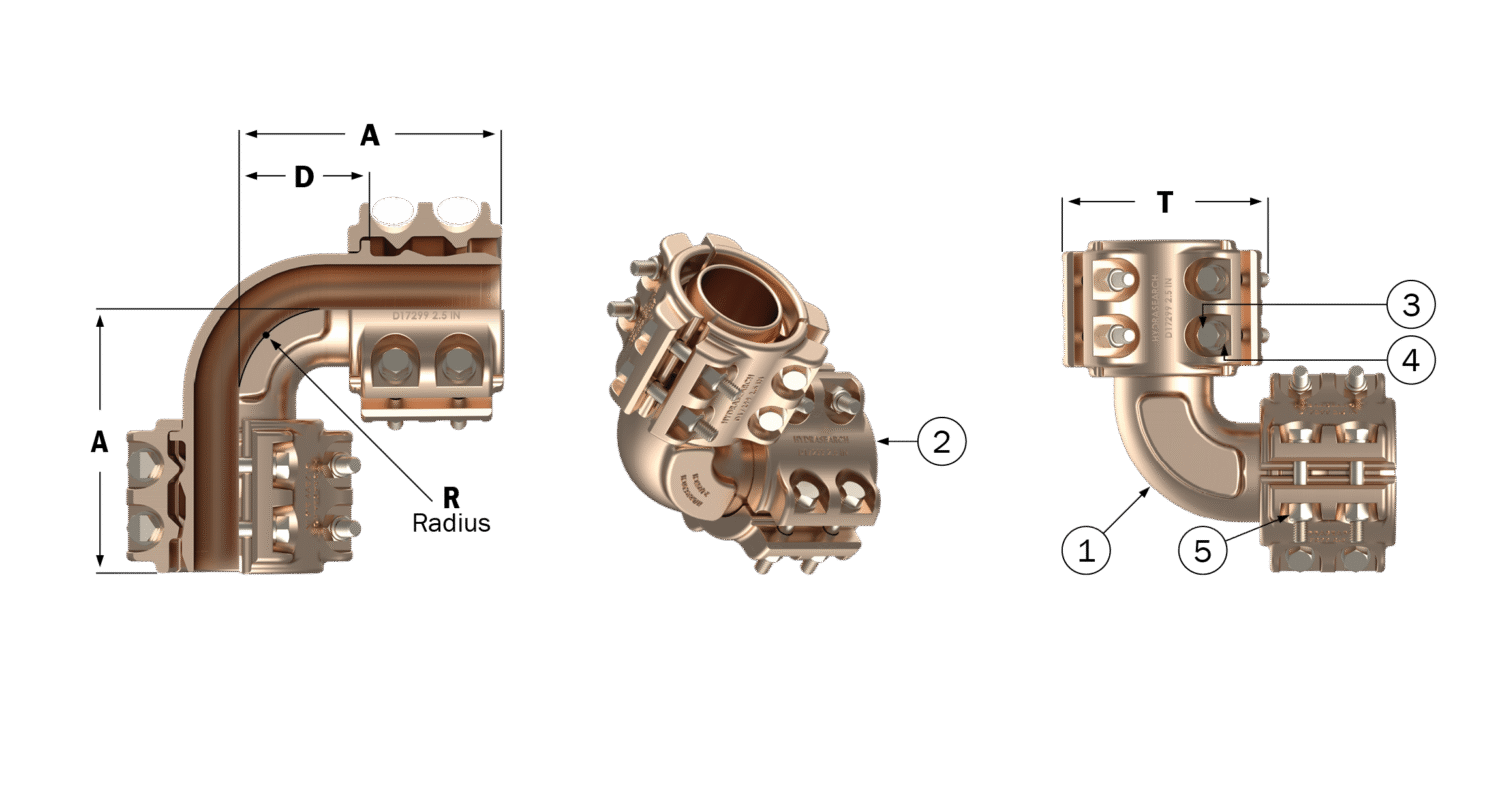

Specification Image

90ELB-449E

Components Table

DescriptionReq’d per Ass’y404864Material
Elbow1D19512-1D19610-1 D20741-1Stainless Steel
Grip Segment6D17299-1D17300-1 D17301-1Aluminum. Bonze
Bolt6B17673-2B17673-1B17987Monel
Lock Nut6B18176B18176B17984Monel
Washer6B18175B18175B17986Monel
