90ELB-1489D-3232
90ELB-1489D-3232
Print
Download PDF

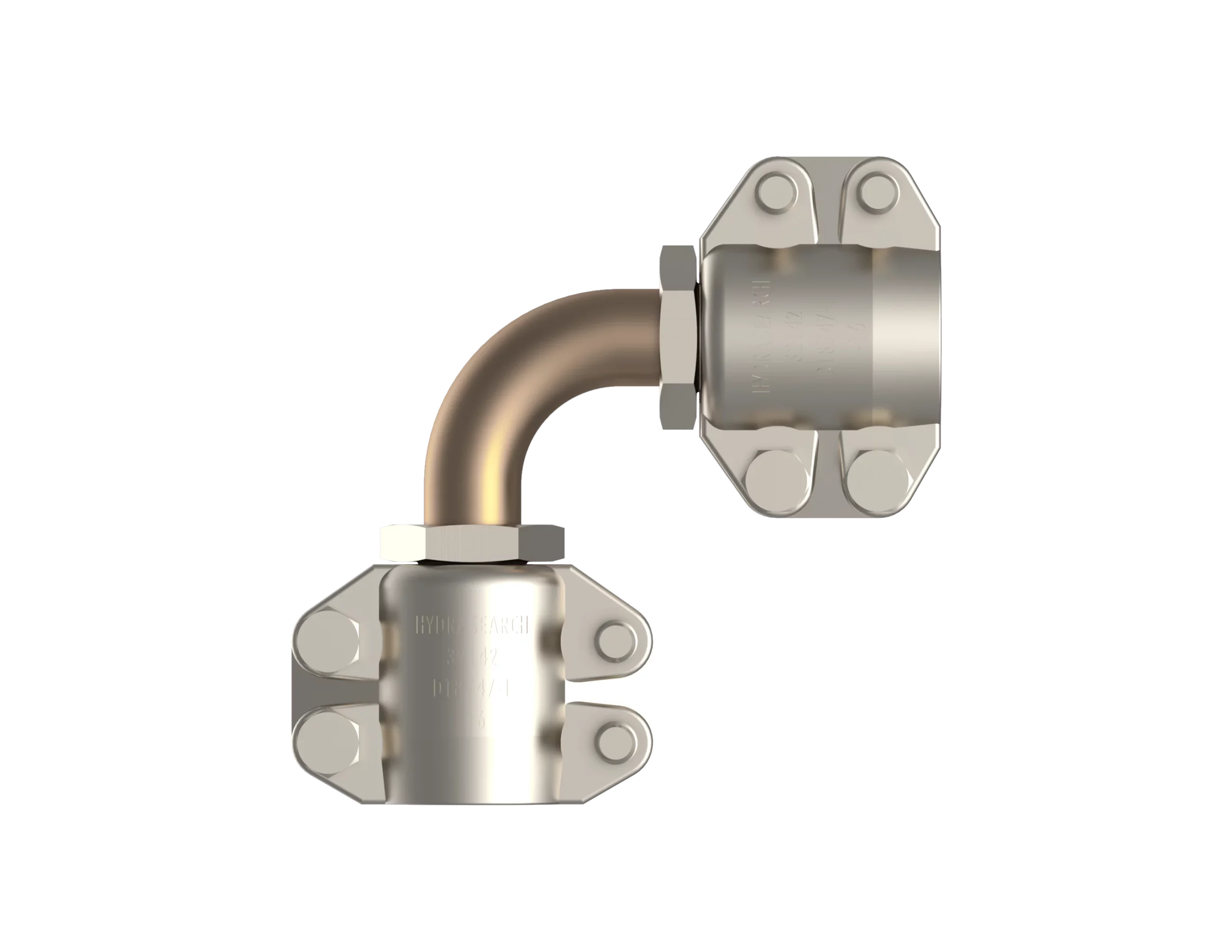

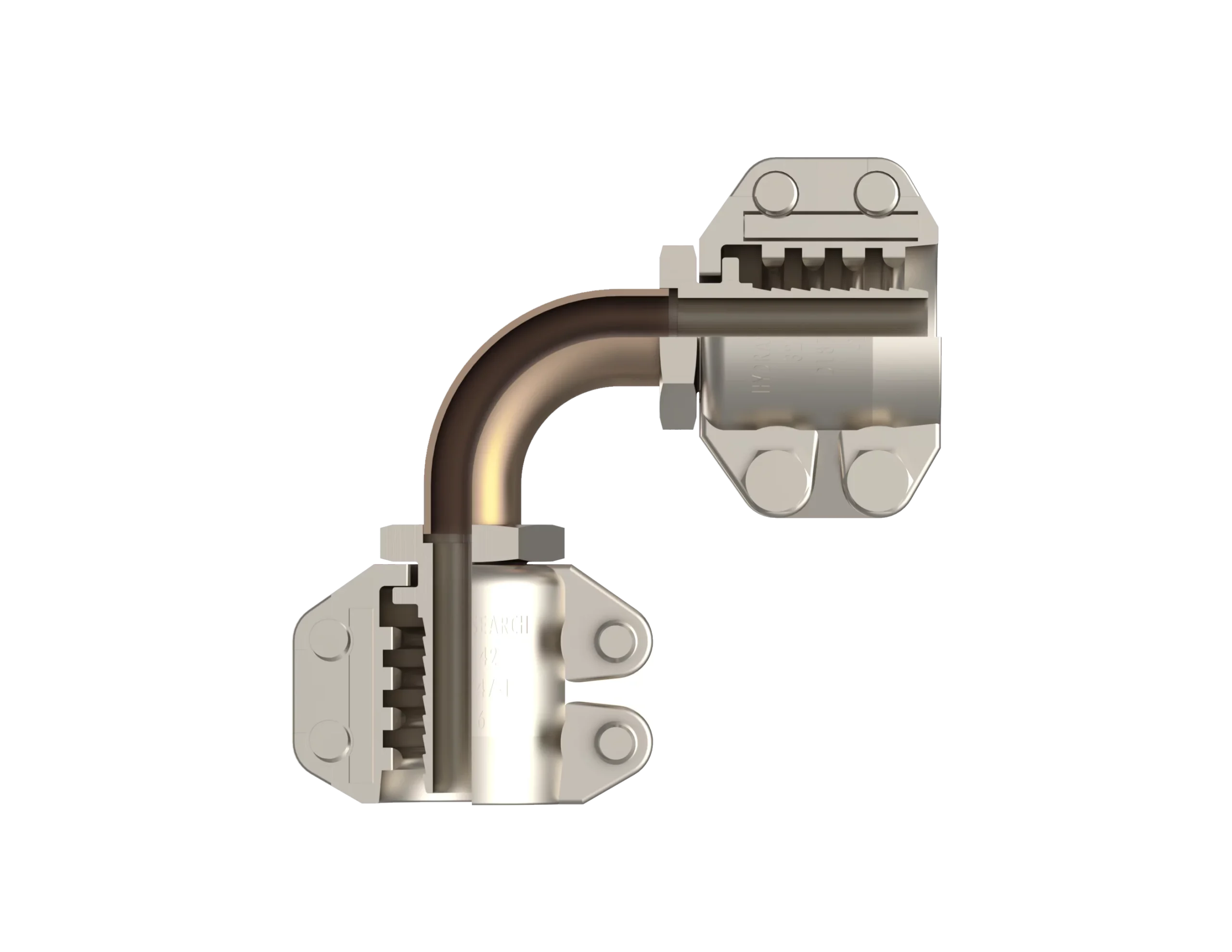

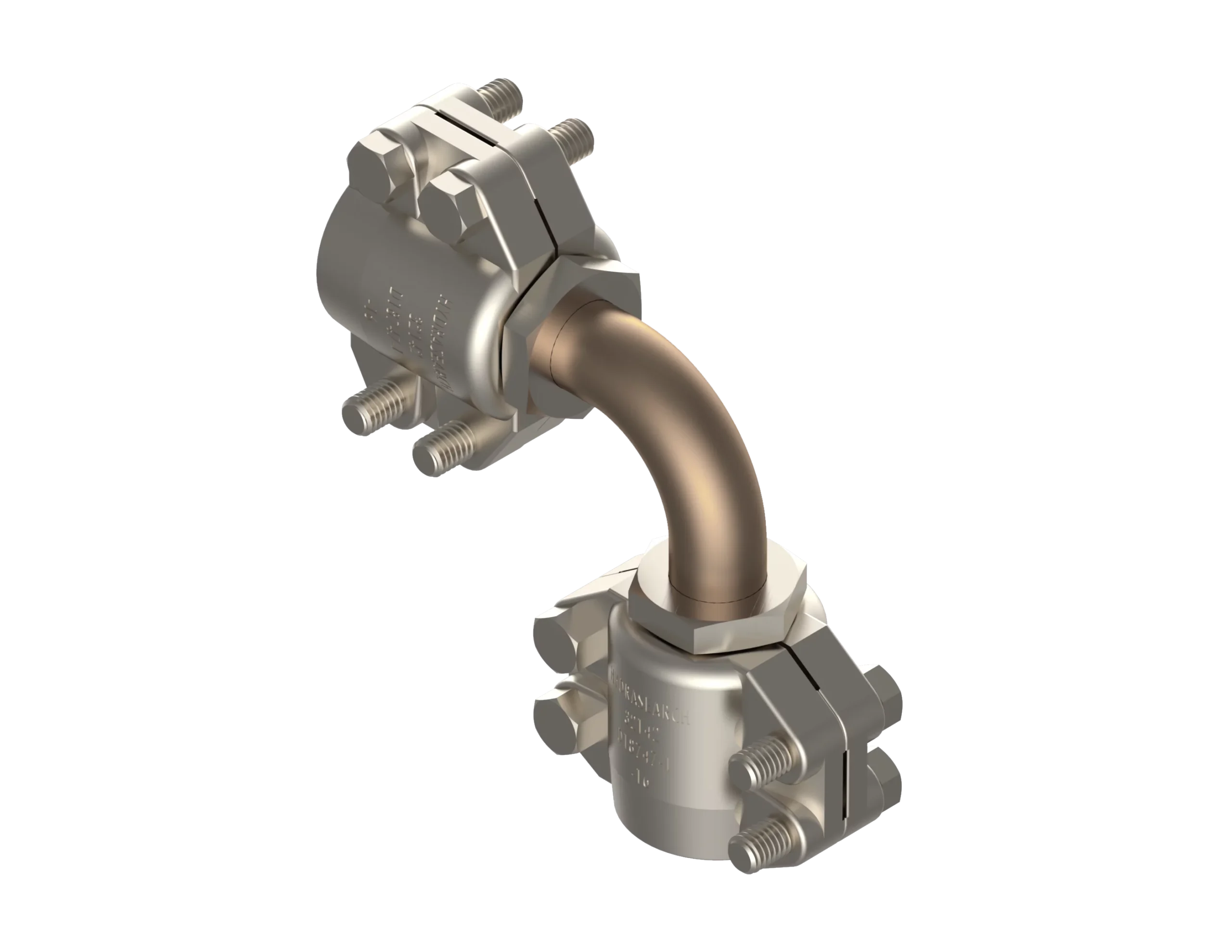

( MIL-DTL-24787/5, Type D, Group XI, Elbow - 90° Dogleg )
Description:
Equal to Aeroquip P/N FC7183-4,
Use with the following hose:
HS133
Specification
Specification Table
| Part Number | 90ELB-1489D-3232 |
|---|---|
| Hydrasearch Drawing Number | C18923 |
| IPS Size | 2 |
| A | 7.38 |
| D | 4.66 |
| E | 1.75 |
| R | 2.50 |
| V | 3.81 |
| W | 2.75 |
| X | 5.04 |
| Est. Wt. (lbs.) | 20.00 |
Components Table
| Description | Req’d per Ass’y | 1616 | 2020 | 2424 | 3232 | Mat’l |
| Elbow | 4 | C18863 | C18865 | C18867 | C18869 | Monel |
| Segment | 4 | D18747-1 | D18748-1 | D18750-1 | D18704-1 | Monel |
| Bolt | 8 | B18746 | B18746 | B18755 | B18718 | Monel |
