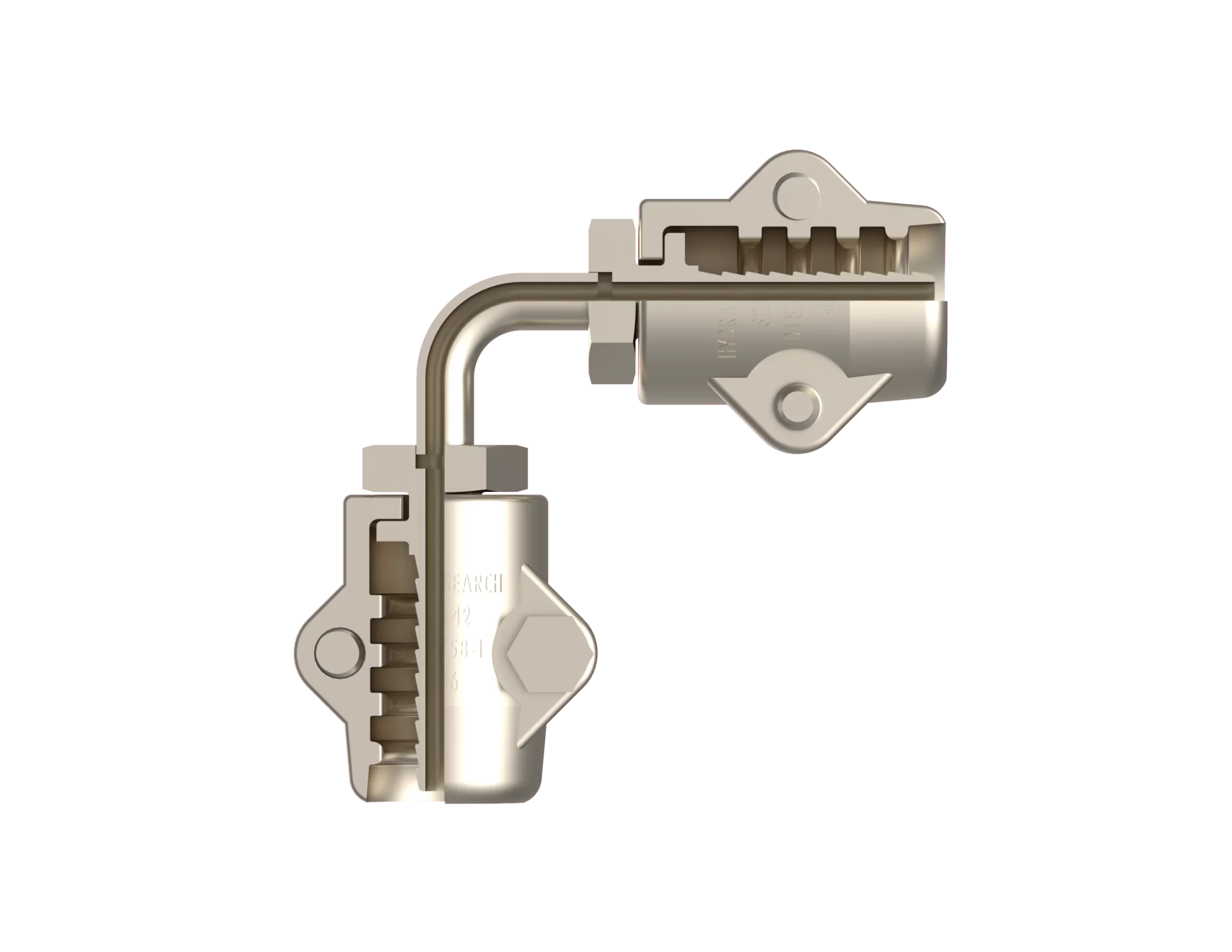

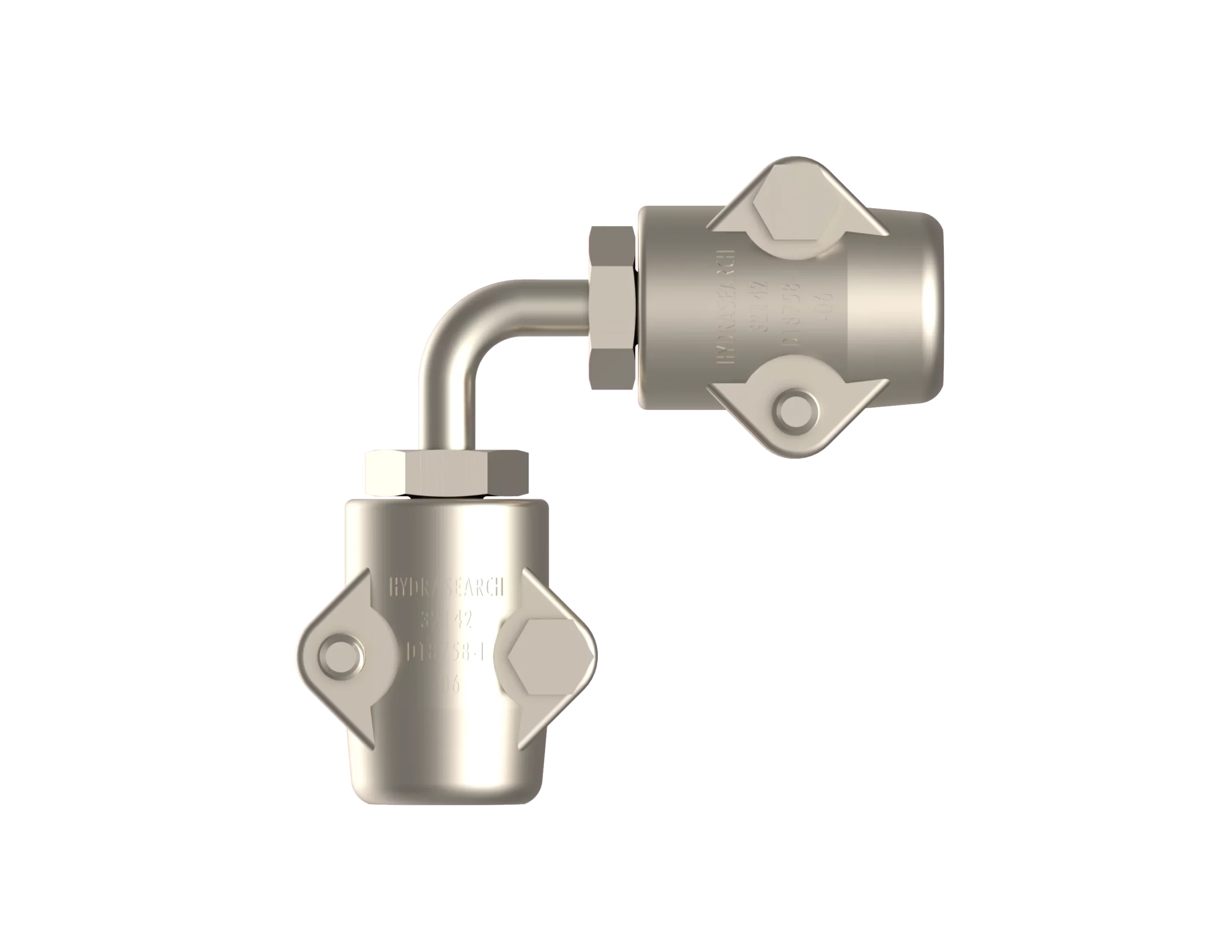

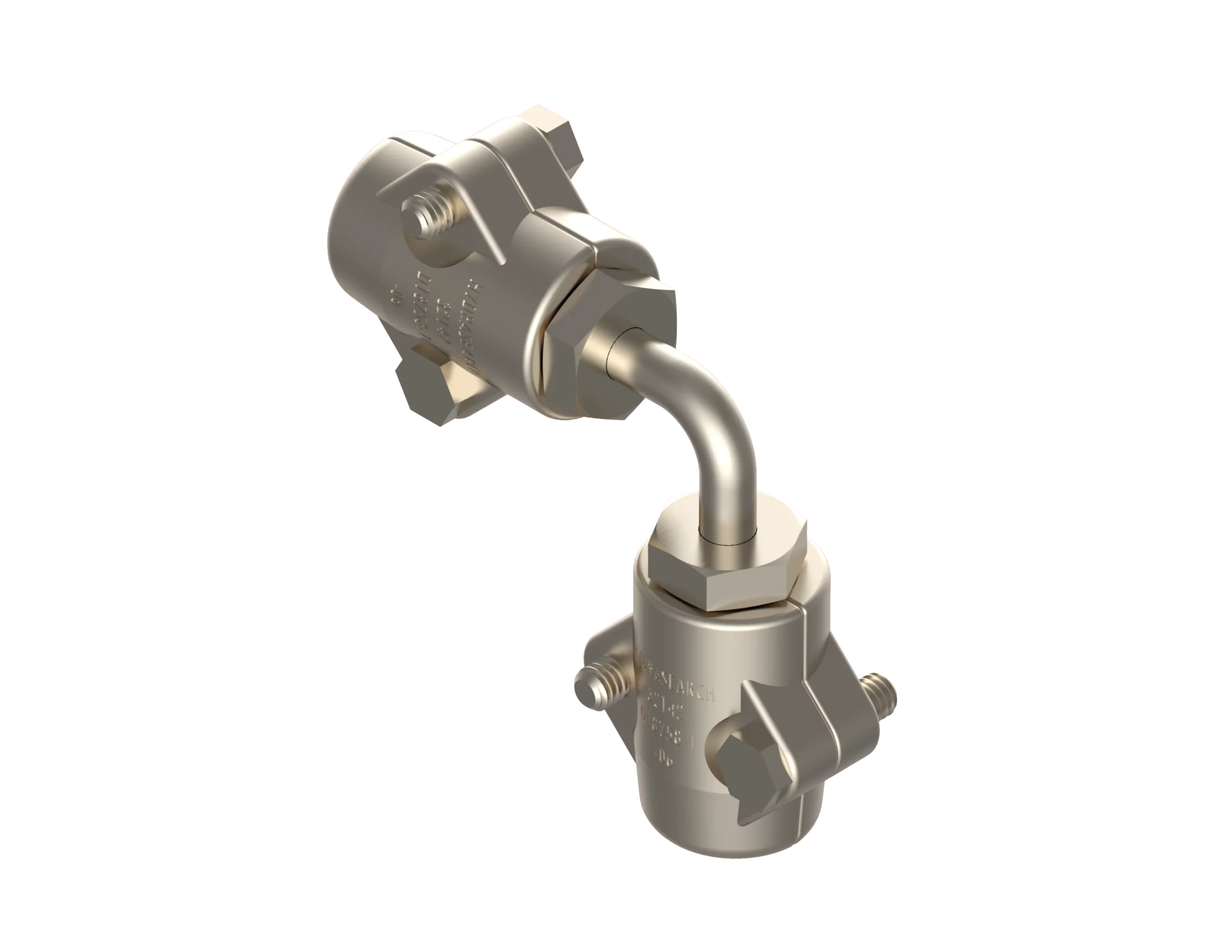

( MIL-DTL-24787/5, Type D, Group XI, Elbow - 90° Dogleg )

Description:

Equal to Aeroquip P/N FC7183-4,
Use with the following hose: HS133

Specification

  • Part Number: 90ELB-1489D-1212
  • Hydrasearch Drawing Number: C18919
  • IPS Size: 3/4
  • A: 4.50
  • D: 2.45
  • E: .61
  • R: 1.25
  • V: 2.43
  • W: 1.38
  • X: 2.93
  • Est. Wt. (lbs.): 3.70

Specification Table

Part Number90ELB-1489D-1212
Hydrasearch Drawing NumberC18919
IPS Size3/4
A4.50
D2.45
E.61
R1.25
V2.43
W1.38
X2.93
Est. Wt. (lbs.)3.70

Components Table

DescriptionReq’d per Ass’y060608081212Mat’l
Elbow1C18857C18859C18861Monel
Segment4D18758-1C18640-1D18743-1Monel
Bolt4B18759B18640B18745Monel
