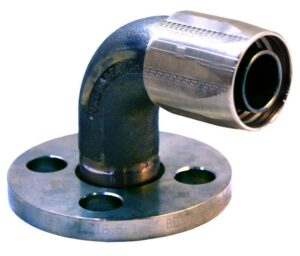

90EF-MSS1488FL5-1624 – End Fittings – 90º – Flange to Hose Stainless Steel/Monel (150 Lb. Flange per A.N.S.I. B16.5)
90EF-MSS1488FL5-1624 – End Fittings – 90º – Flange to Hose Stainless Steel/Monel (150 Lb. Flange per A.N.S.I. B16.5)
90EF-MSS1488FL5-1624

90EF-MSS1488FL5-1624 – End Fittings – 90º – Flange to Hose Stainless Steel/Monel (150 Lb. Flange per A.N.S.I. B16.5)

Print Icon Print Download Icon Download PDF
( 150 Lb )

Description:

Equal to Aeroquip P/N 412-190124,
Use with the following hose: Synthetic yarn and wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Applicable Hoses: Synthetic yarn and wire reinforced hoses in accordance with MIL-DTL-24136/3
  • Component 1: Required per Assembly – 1 Description – Elbow Material – 316 Stainless Steel C21546
  • Component 2: Required per Assembly – 1 Description – Socket C18990-2 Material – Monel in accordance with QQ-N-281
  • Component 3: Required per Assembly – 1 Description – Flange C18799-1 Material – 316 Stainless Steel
  • H: '2.75
  • J: '4.25
  • L: '3.125
  • M: '.625
  • N: '.422
  • A: '3.28
  • C: '2
  • D: '1.83
  • E: '1-1/8
  • F: '1.81
  • Equal To Aeroquip No : 412-190124-1-24
  • Est. Wt. (lbs.): 4
  • Hydrasearch Drawing Number: C21539
  • IPS Size: '1
  • No. of Bolt Holes: 4

Specification Table

Applicable HosesSynthetic yarn and wire reinforced hoses in accordance with MIL-DTL-24136/3
Component 1Required per Assembly – 1 Description – Elbow Material – 316 Stainless Steel C21546
Component 2Required per Assembly – 1 Description – Socket C18990-2 Material – Monel in accordance with QQ-N-281
Component 3Required per Assembly – 1 Description – Flange C18799-1 Material – 316 Stainless Steel
H'2.75
J'4.25
L'3.125
M'.625
N'.422
A'3.28
C'2
D'1.83
E'1-1/8
F'1.81
Equal To Aeroquip No 412-190124-1-24
Est. Wt. (lbs.)4
Hydrasearch Drawing NumberC21539
IPS Size'1
No. of Bolt Holes4
