90EF-MB1488FL4-4048 – End Fittings – 90º – Flange to Hose Bronze/Monel, (150 Lb. Flange per MIL-PRF-20042)

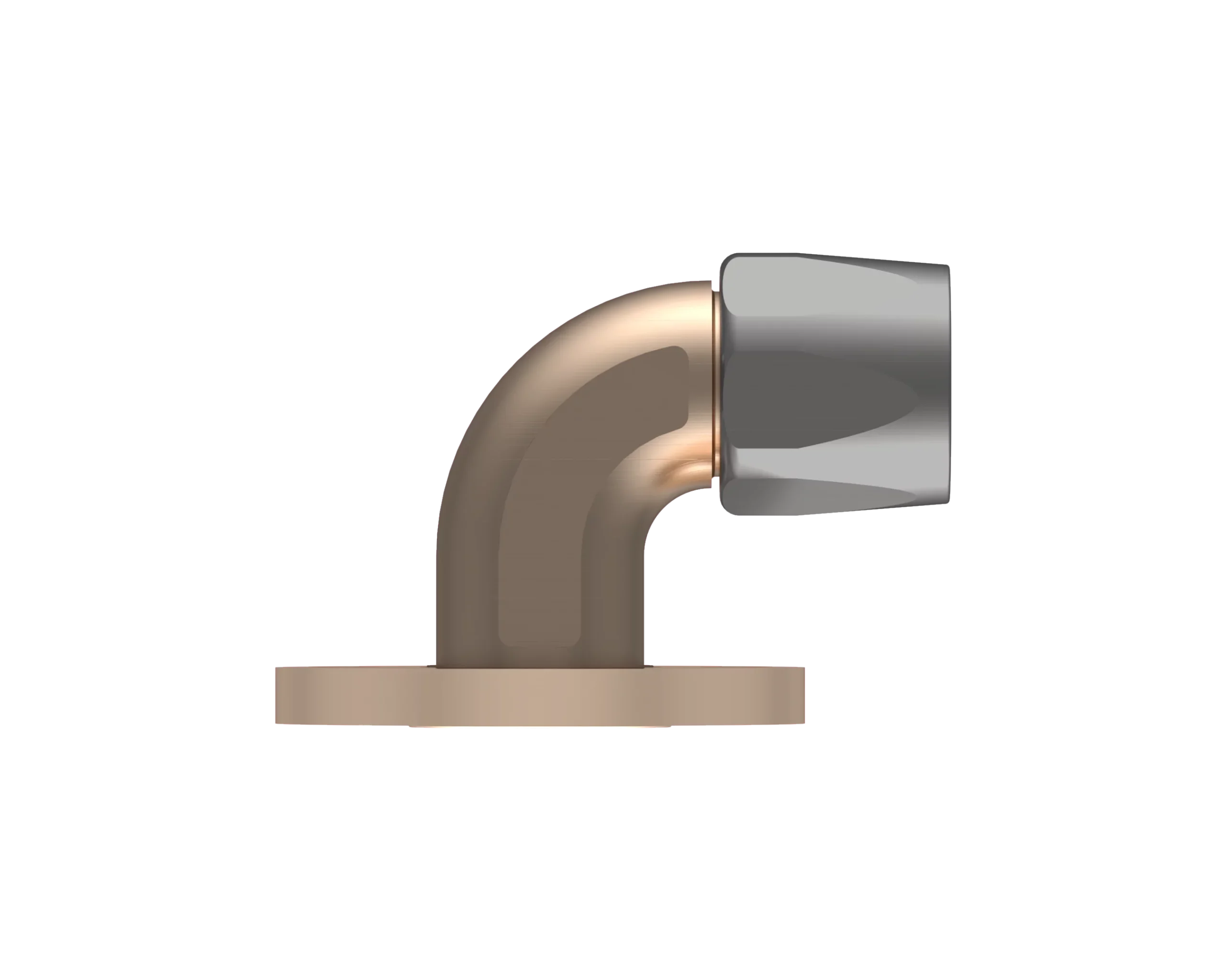

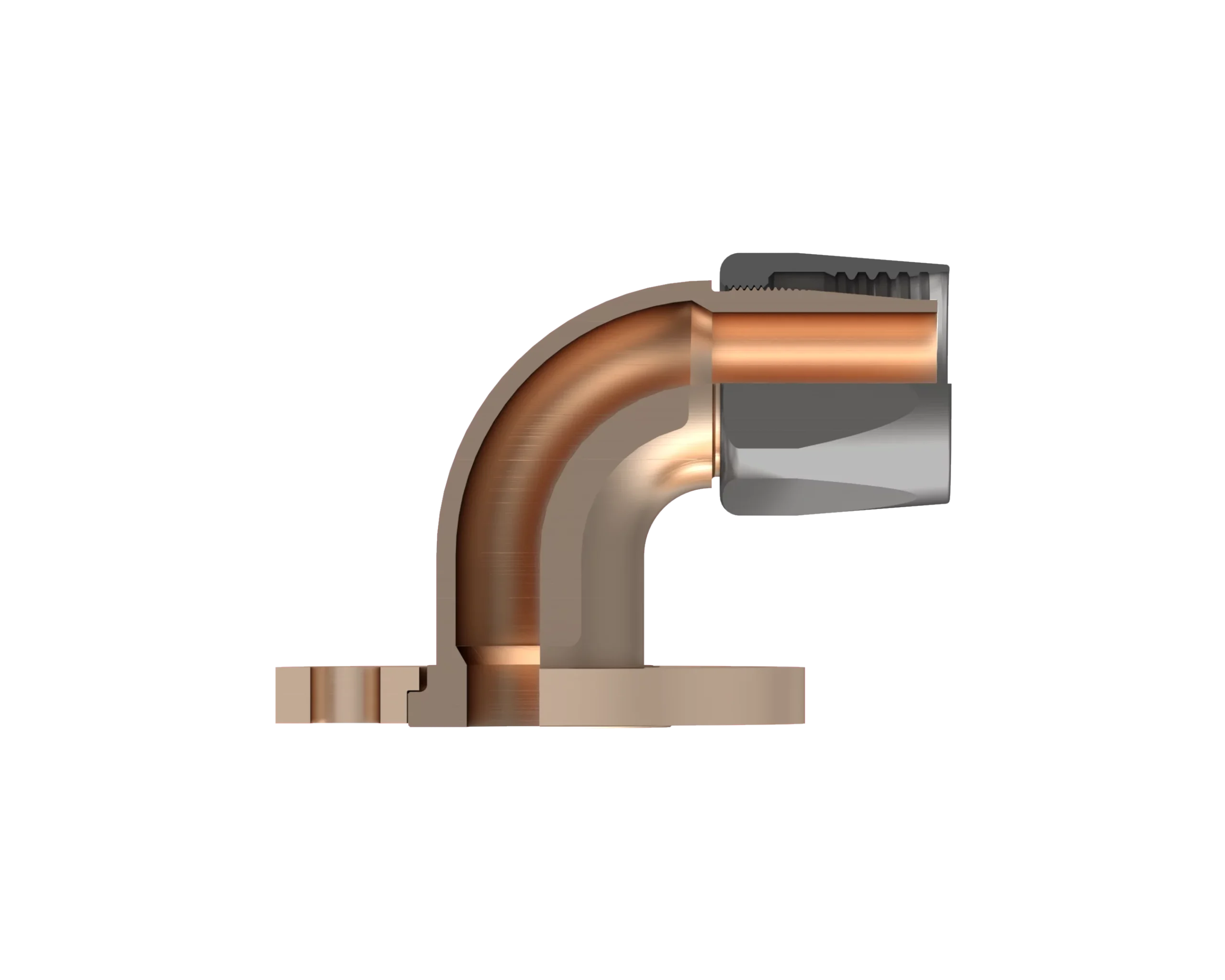

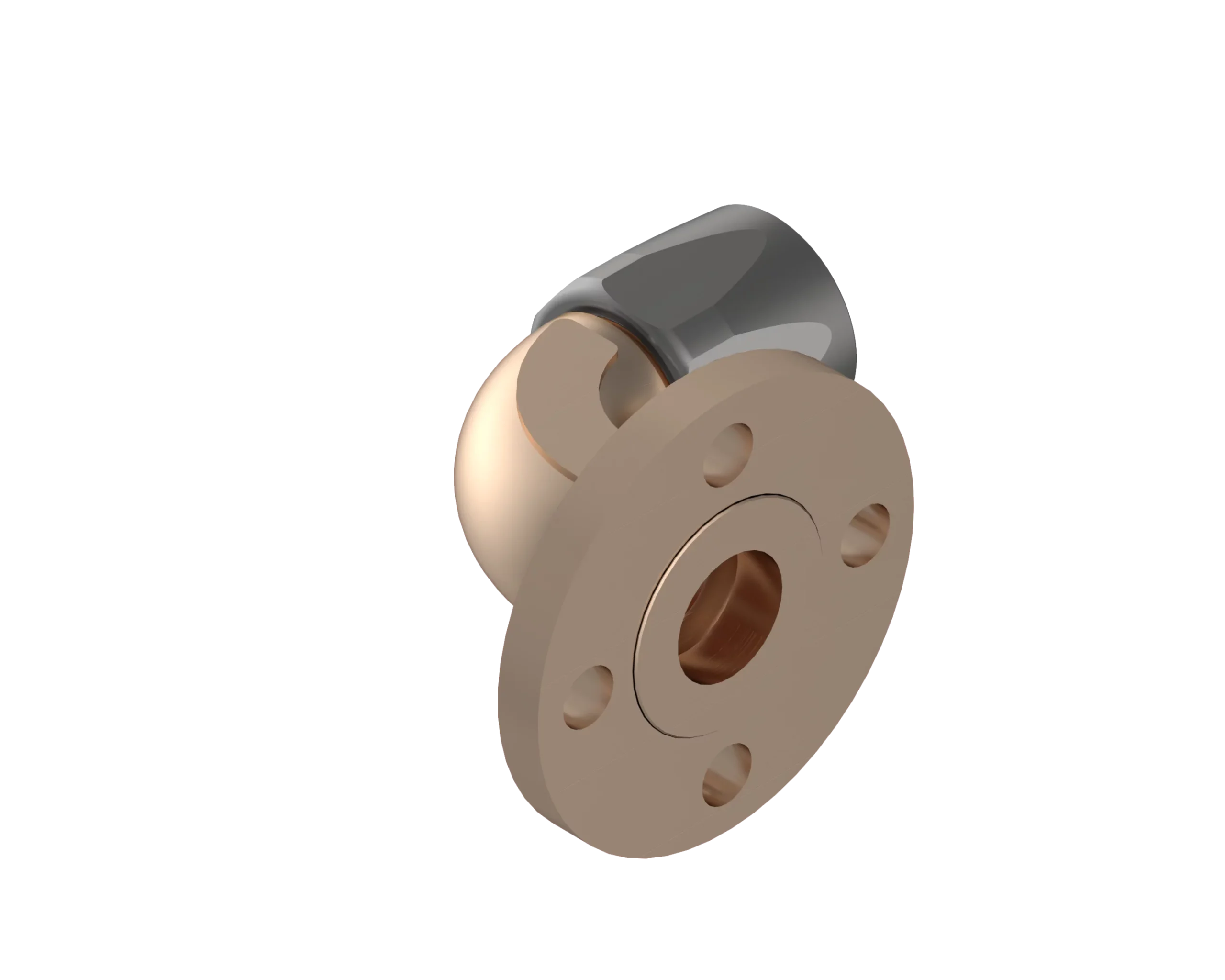

90EF-MB1488FL4-4048 – End Fittings – 90º – Flange to Hose Bronze/Monel, (150 Lb. Flange per MIL-PRF-20042)iso-1-79std-74q-cut-77iso-2-75
90EF-MB1488FL4-4048

90EF-MB1488FL4-4048 – End Fittings – 90º – Flange to Hose Bronze/Monel, (150 Lb. Flange per MIL-PRF-20042)

Print Icon Print Download Icon Download PDF
( 150lb, End Fitting - 90° )

Description:

Equal to Aeroquip P/N 66-190103,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: 90EF-MB1488FL4-4048
  • Hydrasearch Drawing Number: -
  • IPS Size: 2.5
  • No. of Bolt Holes: 6
  • A: 4.61
  • C: 3.88
  • D: 2.70
  • H: 4.00
  • J: 6.13
  • L: 5.00
  • M: .56
  • N: .50
  • R: -
  • Est. Wt. (lbs.): 12.50

Specification Table

Part Number90EF-MB1488FL4-4048
Hydrasearch Drawing Number-
IPS Size2.5
No. of Bolt Holes6
A4.61
C3.88
D2.70
H4.00
J6.13
L5.00
M.56
N.50
R-
Est. Wt. (lbs.)12.50

Components Table

DescriptionReq’d per Ass’y081612161616122016242032243232323240404040484848Material
Elbow1C19035C19035C19035C1903719087C19102C19092C19092C19103C19103C19130C18114Aluminum. Bronze
Socket1C18667-2C18667-2C18667-2C18703-2C18990-2C18662C18662C18662----Monel
Flange1C18817C18816C18815C18814C18813C18812C18810C18809C17925C17929C17931C17933Aluminum. Bronze
