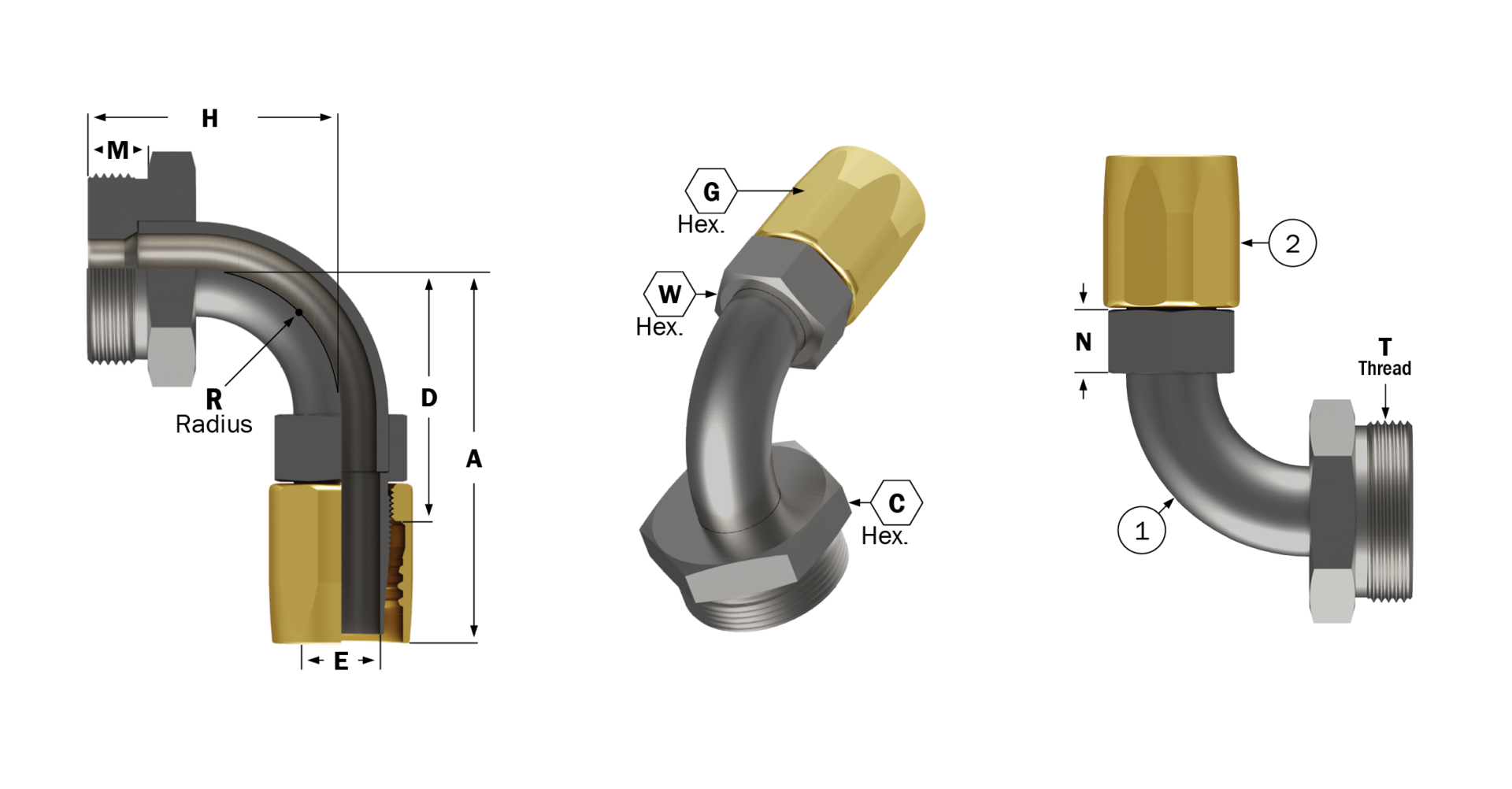

( End Fitting - 90° )

Description:

Equal to Aeroquip P/N 93-191301,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: 90EF-BM1488CL-0206
  • Hydrasearch Drawing Number: C19333
  • IPS Size: 1/8
  • T Thread CL-3A: 1“-14
  • A: 2.57
  • C: 1.06
  • D: 1.66
  • E: .24
  • G: .81
  • H: 1.28
  • M: .50
  • N: .58
  • R: .50
  • W: .56
  • Est. Wt. (lbs.): .40

Specification Table

Part Number90EF-BM1488CL-0206
Hydrasearch Drawing NumberC19333
IPS Size1/8
T Thread CL-3A1“-14
A2.57
C1.06
D1.66
E.24
G.81
H1.28
M.50
N.58
R.50
W.56
Est. Wt. (lbs.).40

Components Table

DescriptionReq’d per Ass’y0206040806100812Material
Elbow1C19027C19028C19029C19030Monel
Socket1C18986-1C18648-1C18987-1C18988-1Brass
