90EF-B1488FL5-1220 – End Fittings – 90º – Flange to Hose Bronze/Brass (150 Lb. Flange per A.N.S.I. B16.5)
90EF-B1488FL5-1220 – End Fittings – 90º – Flange to Hose Bronze/Brass (150 Lb. Flange per A.N.S.I. B16.5)iso-1-100std-76q-cut-79iso-2-86
90EF-B1488FL5-1220

90EF-B1488FL5-1220 – End Fittings – 90º – Flange to Hose Bronze/Brass (150 Lb. Flange per A.N.S.I. B16.5)

Print Icon Print Download Icon Download PDF
( 150lb, End Fitting - 90° )

Description:

Equal to Aeroquip P/N 66-190124,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: 90EF-B1488FL5-1220
  • Hydrasearch Drawing Number: C19390
  • IPS Size: 3/4
  • No. of Bolt Holes: 4

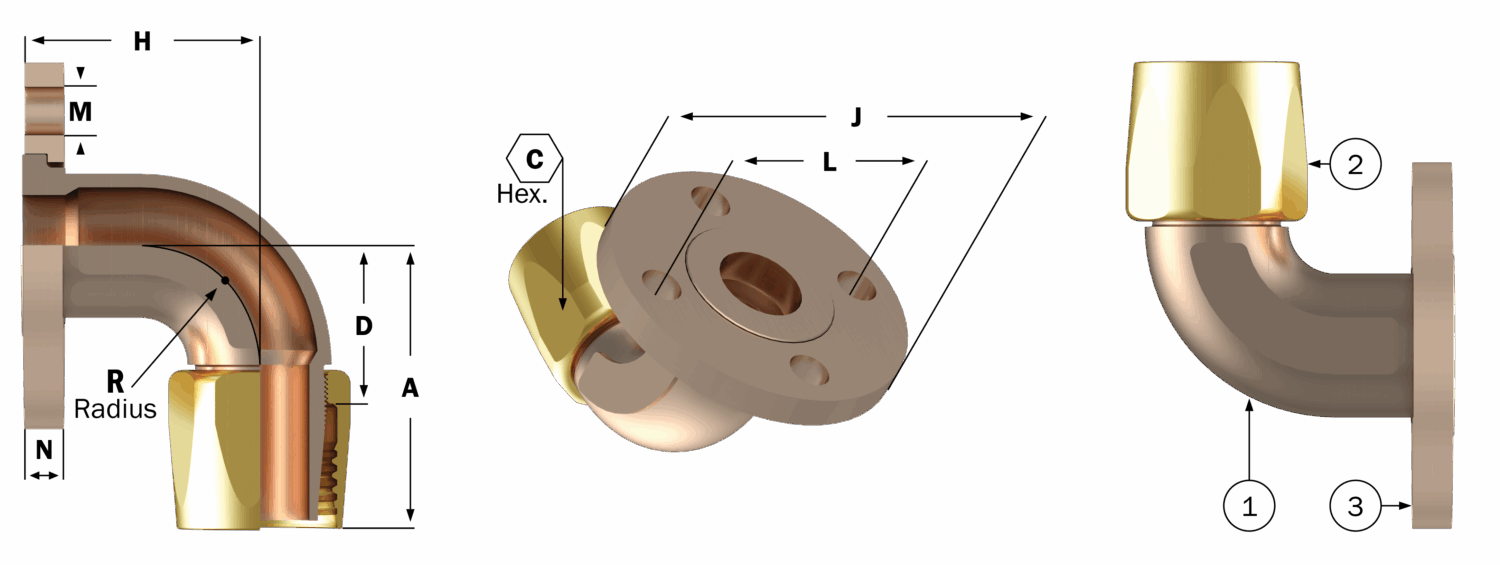

  • A: 2.98
  • C: 1.75
  • D: 1.62
  • H: 2.56
  • J: 3.88
  • L: 2.75
  • M: .62
  • N: .42
  • R: -
  • Est. Wt. (lbs.): 3.60

Specification Table

Part Number90EF-B1488FL5-1220
Hydrasearch Drawing NumberC19390
IPS Size3/4
No. of Bolt Holes4
A2.98
C1.75
D1.62
H2.56
J3.88
L2.75
M.62
N.42
R-
Est. Wt. (lbs.)3.60

Components Table

DescriptionReq’d per Ass’y0816122016242032243232323240404040484848Material
Elbow1C19035C19037C19087C19102C19092C19092C19103C19103C19130C18114Aluminum. Bronze
Socket1C18867C18703-1C18990-1C18811C18811C18811C18822C18822C17901C17901Brass
Flange1C18803C18800C18799C18798C18797C18796C17966C17968C17969C17970Aluminum. Bronze
